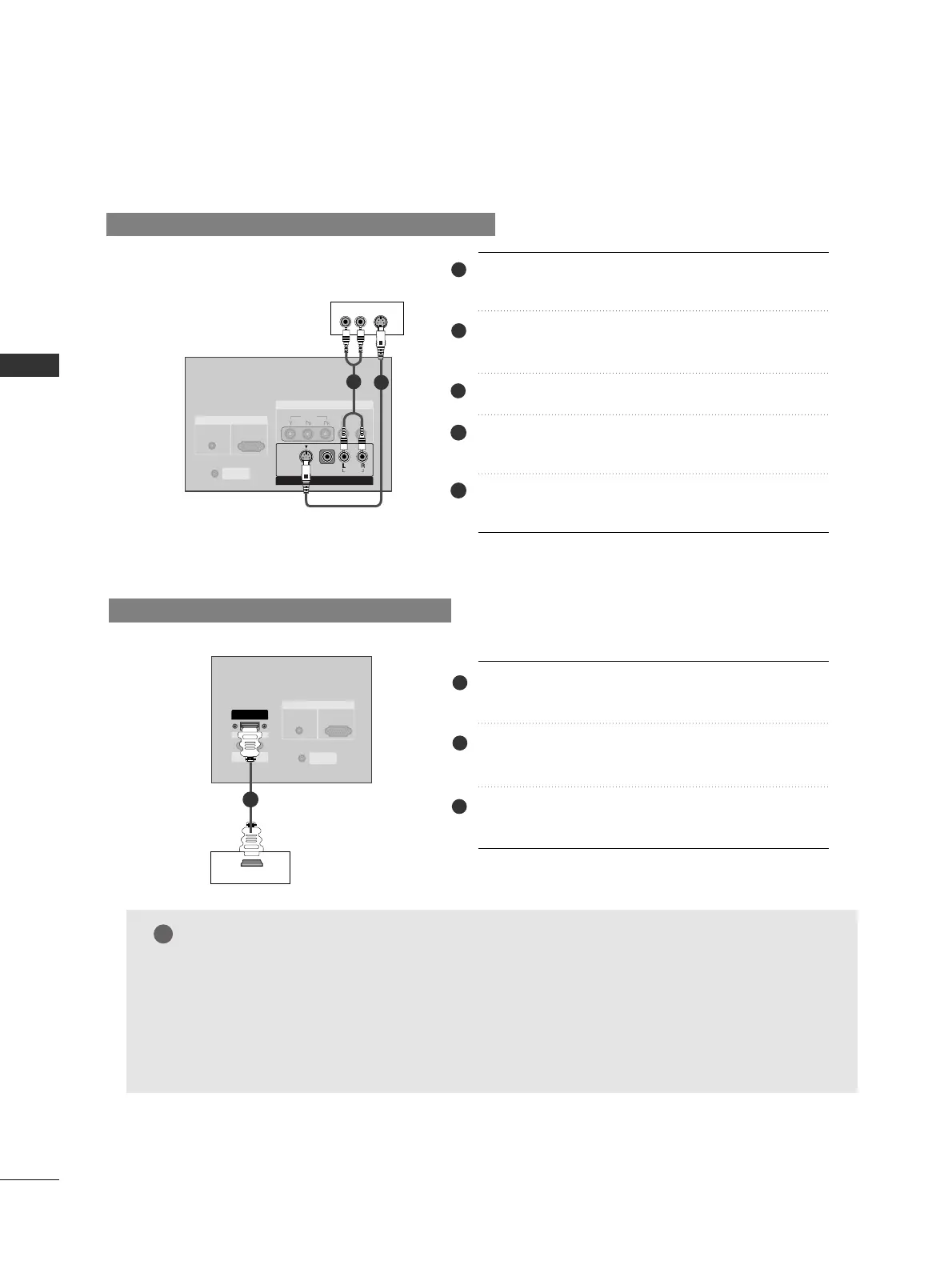

EXTERNAL EQUIPMENT CONNECTIONS
RL
AUDIO VIDEO
AV IN 2
L/MONO
R
AUDIOAUDIO
VIDEOVIDEO
S-VIDEOS-VIDEO
Camcorder
Video Game Set
1
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between
TV and external equipment. Match the jack
colors (Video = yellow, Audio Left = white, and
Audio Right = red).
Select
AAVV22
input source with using the
IINNPPUUTT
button on the remote control.
- If connected to
AAVV IINN11
input, select
AAVV11
input source.
Operate the corresponding external equipment.
Refer to external equipment operating guide.
1
2
3
AUDIO OUT
VARIABLE
AV OUT
MONO
( )
AUDIO
VIDEO
S-VIDEO
AV IN 1
EXTERNAL STEREO
■
Use to connected either an external amplifier, or add a sub-woofer to your surround sound system.
Connect the input jack of the stereo’s amplifier to
the
VVAARRIIAABBLLEE AAUUDDIIOO OOUUTT
jacks on the set.
Set up your speakers through your analog stereo
amplifier, according to the instructions provided
with the amplifier.
• When connecting with external audio equip-
ments, such as amplifiers or speakers, please
turn the TV speakers off.
1
2
1
Analog Stereo Amplifier
TV Back panel
