APPENDIX
RS-232C Setup
- Connect the RS-232C input jack to an external control device (such as a computer or an
A/V control system) and control the set’s functions externally.

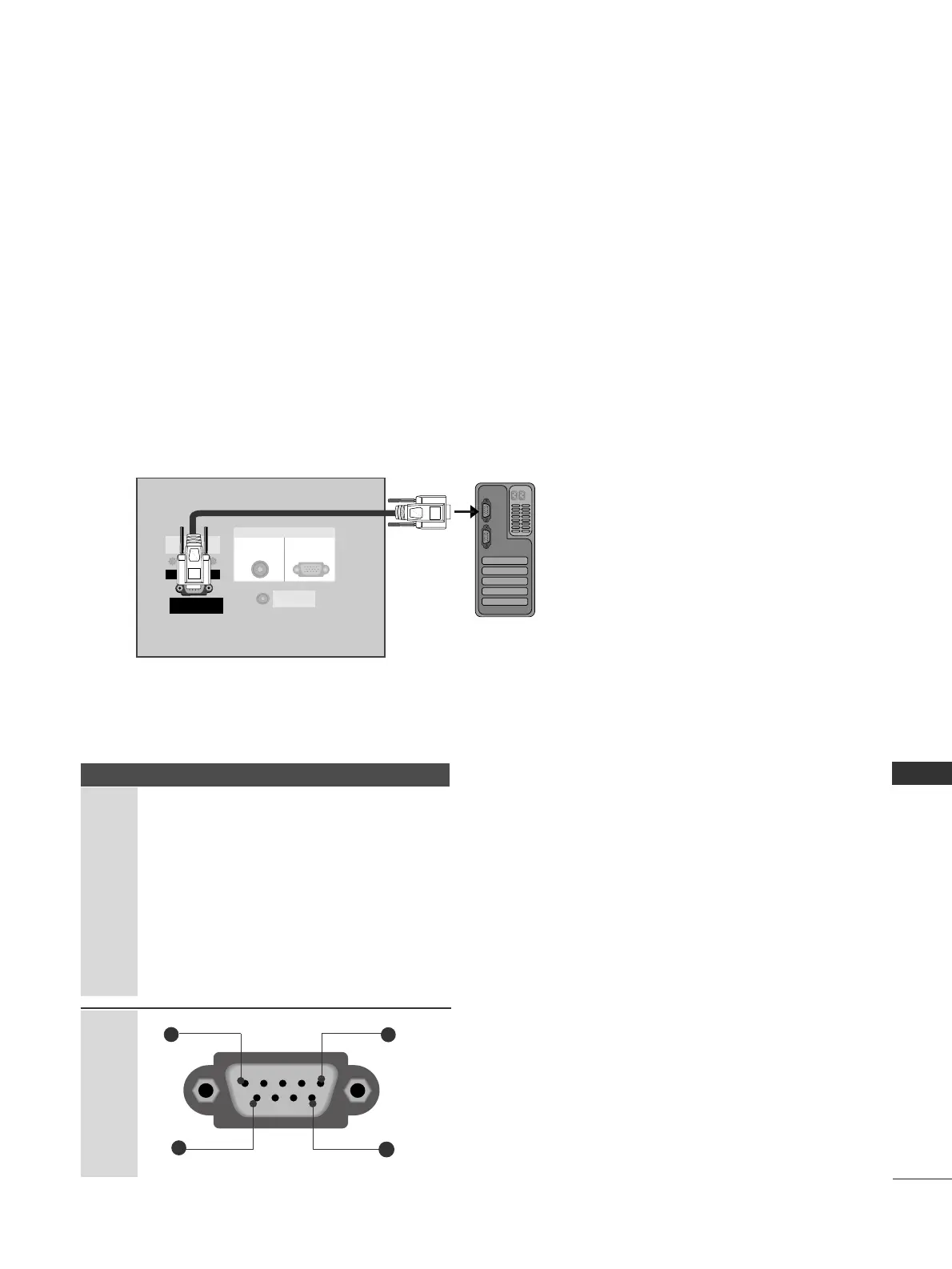

How to connect external control equipment
• Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
• RS-232C connection cables are not supplied with the set.
• The set remote control and front panel controls (except main power) will not be functional if
the Monitor is controlled by a PC computer or other external device.
AUDIO
(RGB/DVI)
RGB
(PC/DTV)
RGB IN
REMOTE
CONTROL IN
DVI IN
HDMI/
(CONTROL
& SERVICE)
RS-232C IN
EXTERNAL CONTROL DEVICE SETUP
Type of Connector; D-Sub 9-Pin Male
REMOTE AUDIO IN
RGB INRGB IN
(PC/DTV)
HDMI/DVI IN
UPGRADE
(MODULE)
AUDIO OUT
VARIABLE
RS-232C IN
(CO
NTRO
L
&
SER
VICE)
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7 RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
99
1
5
6
