LG 32LF550U-ZA User Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
2014/05/22

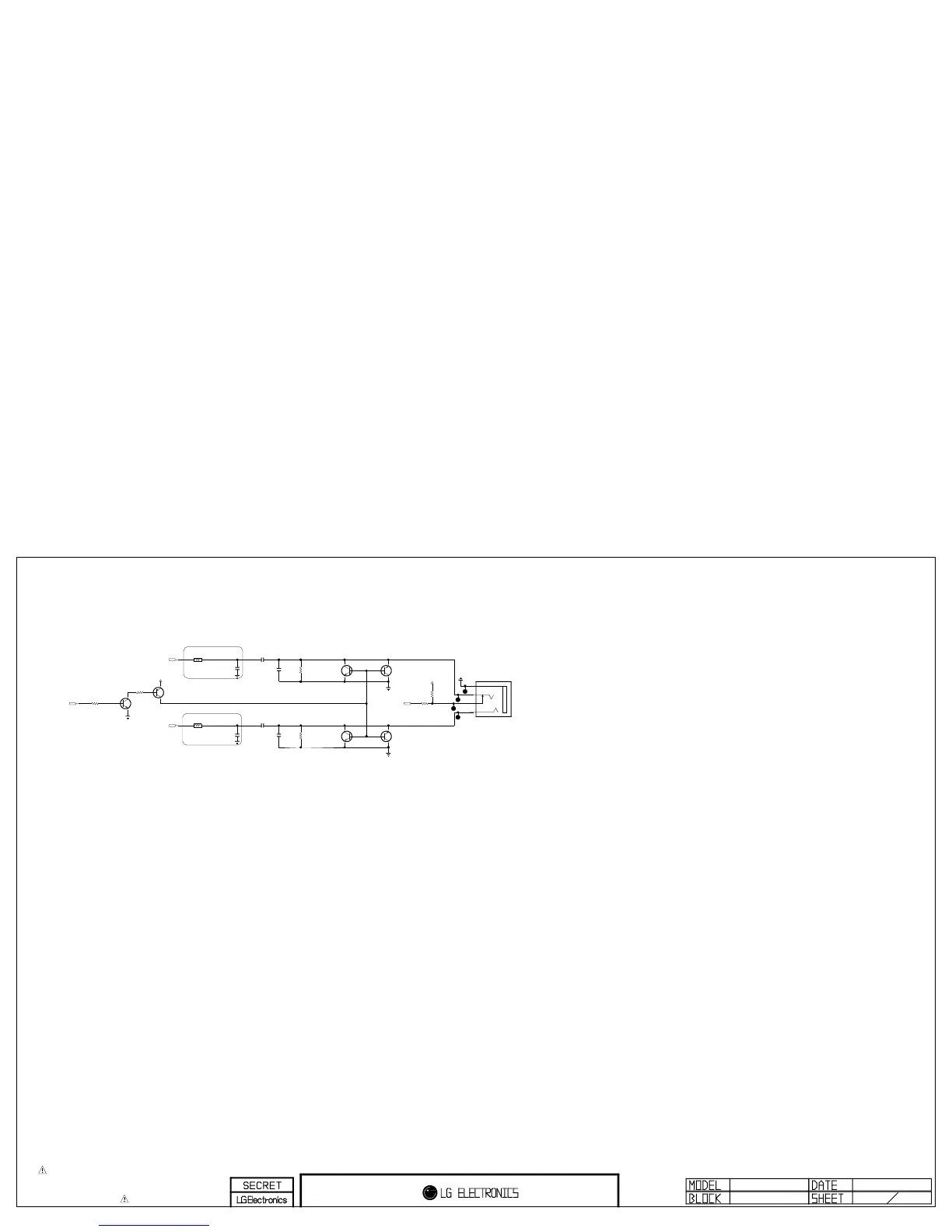

HEAD_PHONE 30
L14_CA_M1A
R3001
3.3K
OPT
C3000
10uF
16V
HEAD_PHONE
C3001
10uF
16V
HEAD_PHONE
+3.3V_Normal
R3005
10K
HEAD_PHONE
C3003
1000pF
50V
OPT
HP_LOUT
R3004
1K
HEAD_PHONE
HP_DET
+3.5V_ST
HP_ROUT
SIDE_HP_MUTE
R3002
1K
HEAD_PHONE
C3002
1000pF
50V
OPT
R3003
1K
HEAD_PHONE
Q3002
MMBT3904(NXP)
OPT
E
B
C
Q3003
MMBT3904(NXP)
OPT
E
B
C
Q3005
MMBT3904(NXP)
OPT
E
B
C
Q3004
MMBT3904(NXP)
OPT
E
B
C
Q3001
MMBT3906(NXP)
OPT
E
B
C
Q3000
MMBT3904(NXP)
OPT
E
B
C
R3000
1K
OPT
C3004
4.7uF
10V
HEAD_PHONE
L3001
HEAD_PHONE
5.6uH
L3000
HEAD_PHONE
5.6uH
C3005
4.7uF
10V
HEAD_PHONE
JK3000
PEJ038-3B6
HEAD_PHONE
3DETECT
4L
5GND
1R
Headphone
*Option : HEAD_PHONE_EU
Close to the Main IC
Close to the Main IC
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG 32LF550U-ZA Specifications

General

Screen Size	32 inches
Display Type	LED
Resolution	1366 x 768
Refresh Rate	50 Hz
HDMI Ports	2
USB Ports	1
Smart TV	No
Built-in Wi-Fi	No
Energy Rating	A+
Audio Output	10 W
Digital TV Standard	DVB-T2
