13
ENG
ENGLISH
ASSEMBLING AND PREPARING
NOTE
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
y
(
Plasma
)

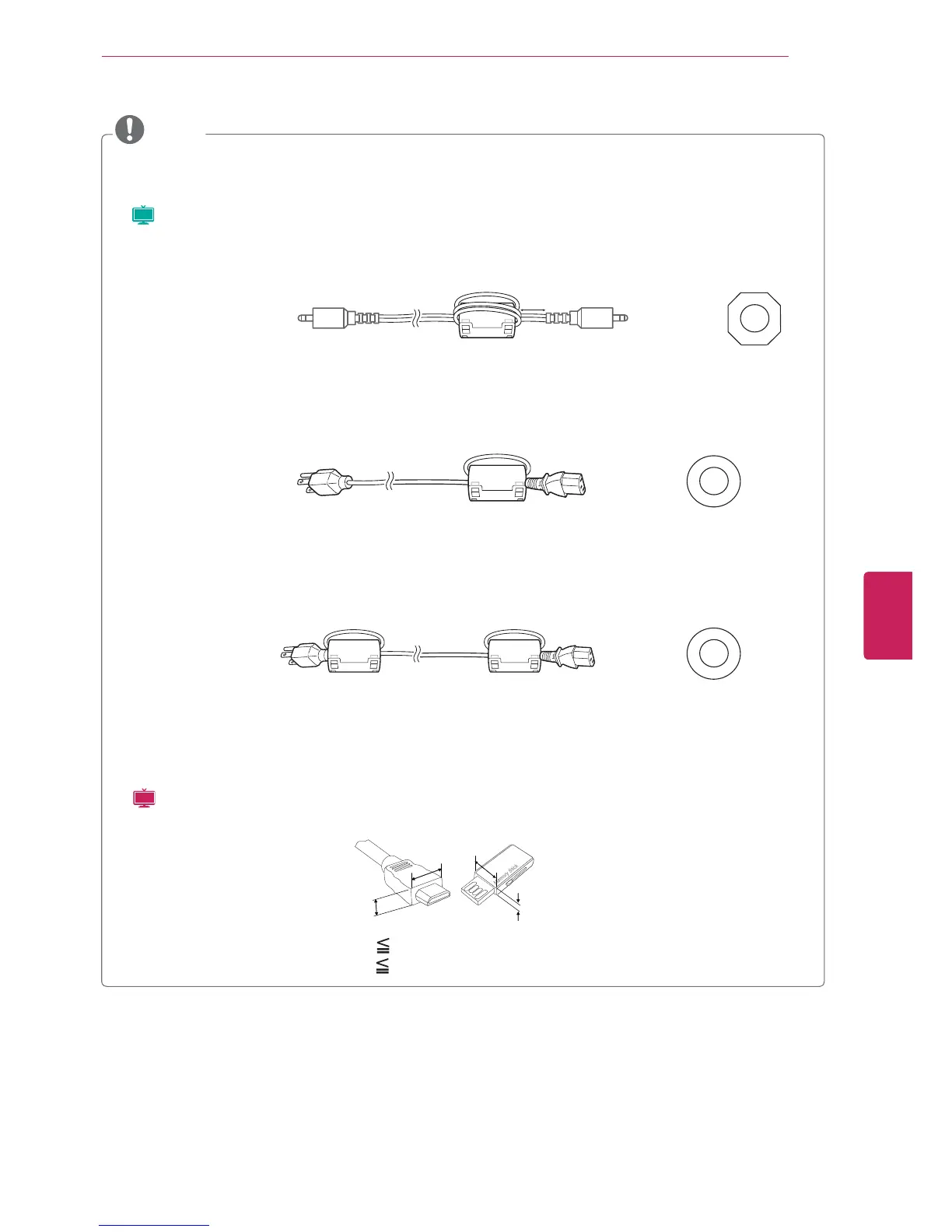

How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.
Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV.
[to an External device]
10 mm (+/-5 mm)
[to the TV]
2 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV.
[to a wall plug]
[to the TV]
3 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall
plug.
[to a wall plug]
[to the TV]
- If there is one ferrite core, follow as shown in Figure 1.
- If there are two ferrite cores, follow as shown in Figures 1 and 2.
- If there are three ferrite cores, follow as shown in Figures 1 and 3.
y
(
LCD
) For an optimal connection, HDMI cables and USB devices should have bezels less than 10
mm (0.39 inches) thick and 18 mm (0.7 inches) width.
B
A
A
B
*A 10 mm (0.39 inches)
*B
18 mm (0.7 inches)
[Cross Section of
Ferrite Core]
[Figure 1]
[Cross Section of
Ferrite Core]
[Figure 2]
[Cross Section of
Ferrite Core]
[Figure 3]
To Next Page
