21
ENGENGLISH
MAKING CONNECTIONS

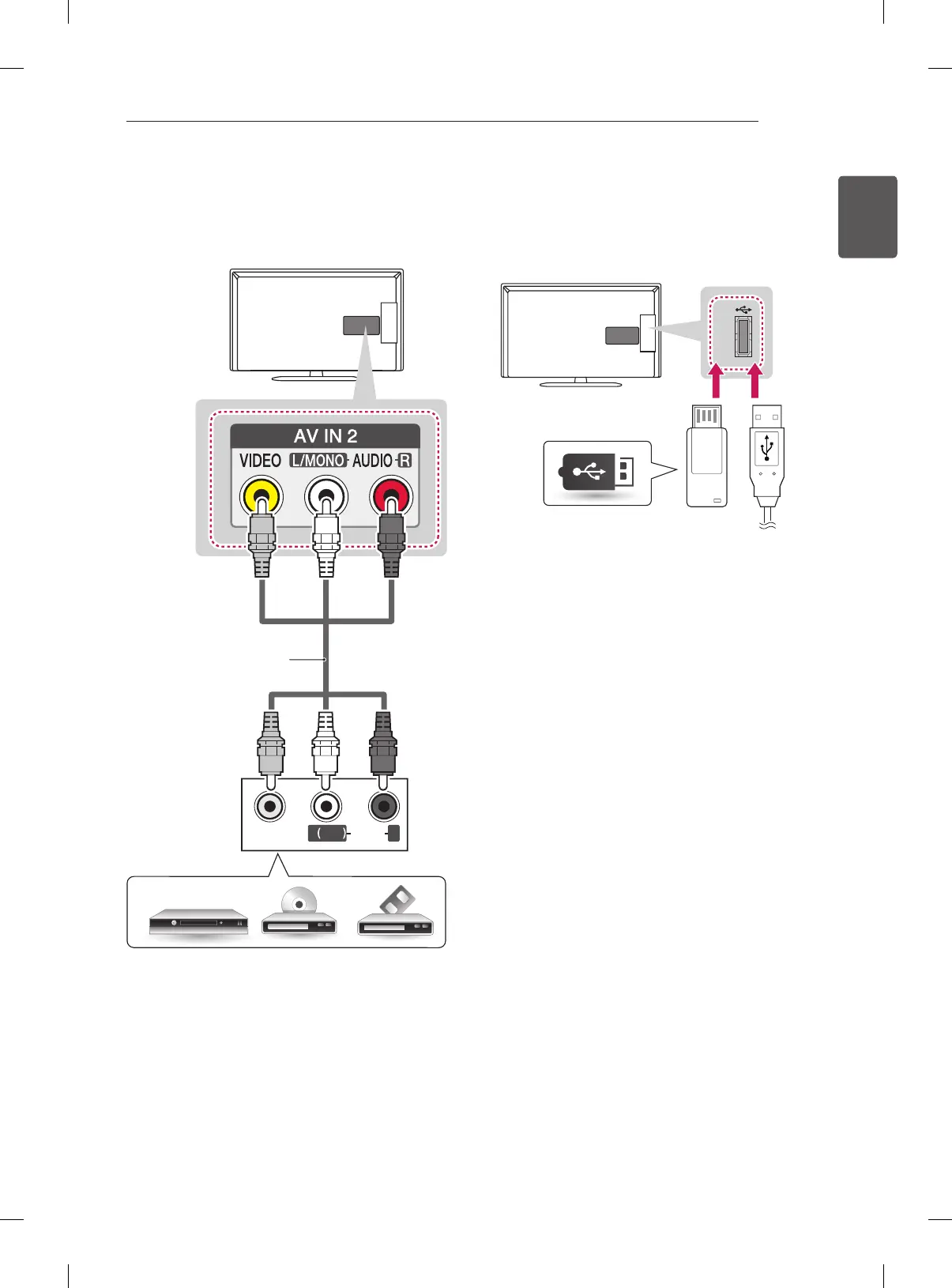

Composite connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with the composite cable as shown.
VIDEO
MONO
( )
AUDIOL R
YELLOW
WHITE
RED
RED
YELLOW
WHITE
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box / VCR
USB connection
Connect a USB storage device such as a USB flash
memory, external hard drive, or a USB memory card
reader to the TV and access the My media menu to use
various multimedia files.
USB IN
USB
(*Not Provided)
To Next Page
