MAKING CONNECTIONS

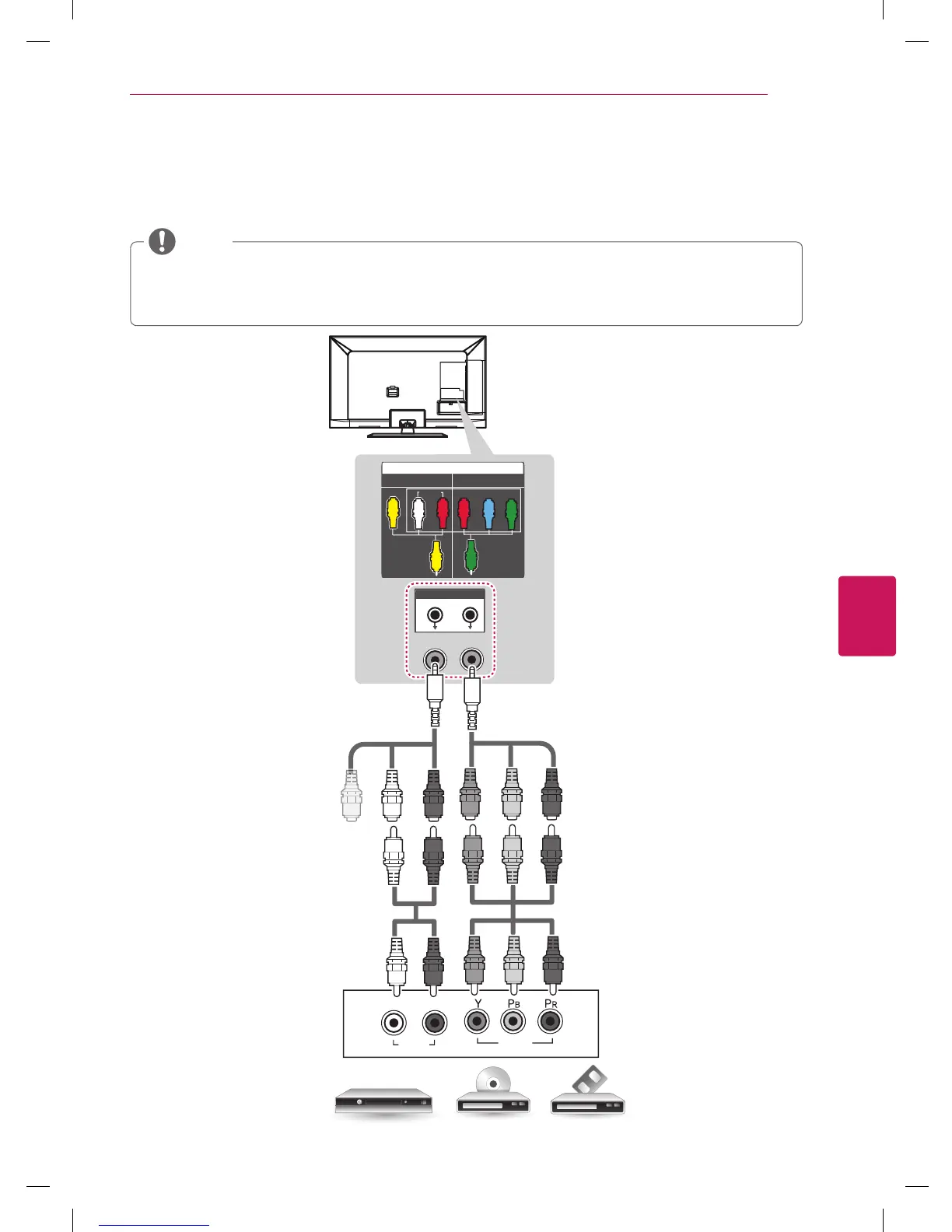

Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown in the following illustration.

If cables are installed incorrectly, it could case the image to display in black and white or with
distorted color.

Check to ensure the cables are matched with the corresponding color connection.
NOTE
VIDEO
AUDIO
L R
IN
COMPONENT
AV
PR
PB Y
AUDIO
VIDEO
DVD/ Blu-Ray / HD Cable Box
(*Not Provided)
(*Not Provided)
(Use the composite video cable provided.)
(Use the component video cable provided.)
GREEN RED BLUE
GREEN RED BLUE
GREEN RED BLUE
WHITE
RED
YELLOW
WHITE
RED
WHITE RED
GREEN
YELLOW
