LG 42LB5800-UG Service Manual

- 10 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

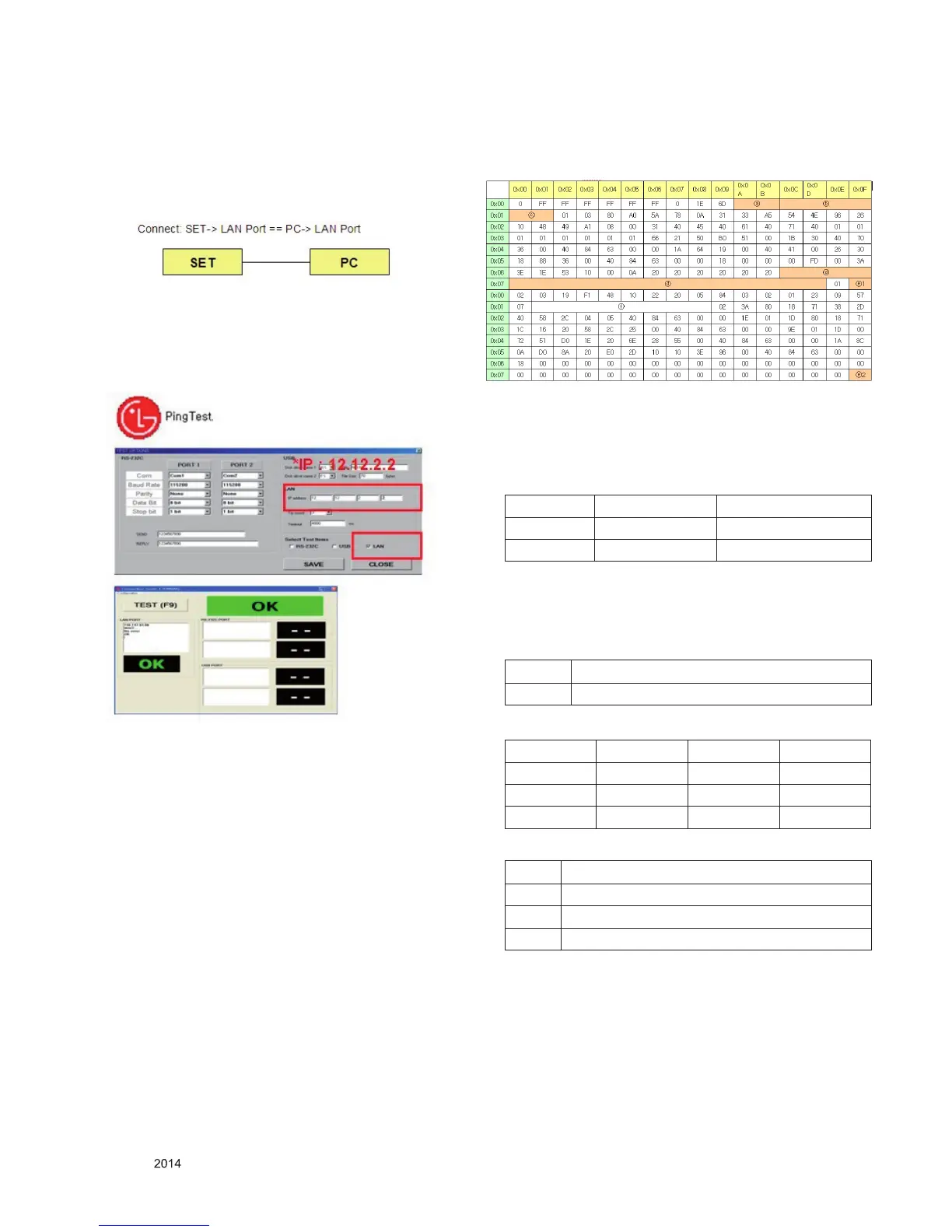

4.3. LAN port Inspection (Ping Test)
4.3.1. Equipment setting
1) Play the LAN Port Test PROGRAM.
2) Input IP set up for an inspection to Test Program.
- IP number: 12.12.2.2
4.3.2. LAN PORT inspection (PING TEST)
1) Play the LAN Port Test Program.
2) Connect each other LAN Port Jack.
3) Play Test (F9) button and confirm OK Message.
4) Remove LAN CABLE
4.4. EDID Download
4.4.1 Overview
▪ It is a VESA regulation. A PC or a MNT will display an
optimal resolution through information sharing without any
necessity of user input. It is a realization of “Plug and Play”.
4.4.2 Equipment
▪ Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.
▪ Adjust remocon
4.4.3. EDID DATA
4.4.3.1. . 2D_8bit_PCM(US) _ xvYCC : off (HD)
HDMI EDID 2D_8bit_PCM(US)_xvYCC : off (HD)
▪Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by S/W or Input
mode.
ⓐ Product ID
HEX EDID Table DDC Function
0001 0100 Analog
0001 0100 Digital
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘01’ -> ‘01’
Year : ‘2014’ -> ‘18’
ⓓ Model Name(Hex): LGTV
Chassis MODEL NAME(HEX)
LA46B 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓔ1 ⓔ2 ⓔ3
HDMI1 A5 0C X
HDMI2 A5 FC X
HDMI3 A5 EC X
ⓕ Vendor Specific(HDMI)
INPUT MODEL NAME(HEX)
HDMI1 67 03 0C 00 10 00 80 1E
HDMI2 67 03 0C 00 20 00 80 1E
HDMI3 67 03 0C 00 30 00 80 1E

LG 42LB5800-UG Specifications

General

Screen Type	led
Wall Mount	400mm x 400mm
Tuner	digital
Screen Size	41.9 inches, 42 inches
Screen Technology	qled
Resolution	full hd (1080p)
Refresh Rate	120hz
HDR	yes
HDMI Ports	3
HDMI 2.1 Ports	0
USB Ports	3
RF Antenna	yes
Headphones Output	no
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	hulu, netflix, youtube
Voice Assistant	other
Remote Control	standard
3D	no
Power Consumption	36.52 kilowatt hours
Depth with Stand	10.04 inches
Height with Stand	26.61 inches
Width with Stand	37.88 inches
Net Weight with Stand	20.9 pounds
Depth without Stand	2.19 inches
Height without Stand	22.32 inches
Net Weight without Stand	20.3 pounds
