LG 42LB5800-UG Service Manual

- 14 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.2. Tool Option setting & Inspection per
countries
5.2.1. Overview
(1) Tool option selection is only done for models in Non-USA
North America due to rating
(2) Applied model: LA46B Chassis applied to CANADA and
MEXICO
5.2.2. Country Group selection
(1) Press ADJ key on the Adj. R/C, and then select Country
Group Menu
(2) Depending on destination, select US, then on the lower
Country option, select US, CA, MX.
Selection is done using +, - KEY
5.2.3. Tool Option inspection
▪ Press Adj. key on the Adj. R/C, then select Tool option
Model Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6 Tool 7
32LB580B-UG(Sharp) 6769 13329 33152 64070 4566 1353 41771
32LB580B-UG(LGD) 625 13329 33152 64070 4310 1354 41771
32LB5800-UG 625 13329 33152 64070 4310 1353 41771
39LB5800-UG 14963 13329 33152 64070 4566 1353 41771
42LB5800-UG(LGD) 628 13329 33152 64070 4310 1433 41771
42LB5800-UG(AUO) 4724 13329 33152 64070 4310 1353 41771
47LB5800-UG 629 13329 33152 64070 4310 1353 41771
50LB5800-UG(AUO) 4726 13329 33152 64070 4310 1353 41771
50LB5800-UG(INX) 14966 13329 33152 64070 4310 1353 41771
55LB5800-UG(LGD) 631 13329 33152 64070 4310 1402 41771
55LB5800-UA(AUO) 4727 13329 33152 64070 4310 1353 41771
47LB6100-UG 677 13329 33152 64070 12502 1353 41771
50LB6100-UG(LGD) 678 13329 33152 64070 12502 1353 41771
50LB6100-UG(AUO) 4774 13329 33152 64070 12502 1353 41771
50LB6100-UG(INX) 15014 13329 33152 64070 12502 1353 41771
55LB6100-UG(LGD) 679 13329 33152 64070 12502 1402 41771
55LB6100-UG(AUO) 4775 13329 33152 64070 12502 1353 41771
60LB6100-UG 39592 13329 33152 64070 12502 1353 41771
65LB6190-UD 34467 13329 33152 64070 12502 1353 41771
※ Tool option can be reconstructed by Software
5.3. Magic Motion remote controller Check
5.3.1. Test equipment
▪ RF-remote controller for check, IR-KEY-CODE remote
controller.
▪ Check AA battery before test. A recommendation is that a
tester change battery every lots.
5.3.2. Test
(1) Make pairing with TV set by pressing “Start key(Wheel
key)” on RCU.
(2) Check a cursor on screen by pressing ‘Wheel key” of RCU
(3) Stop paring with TV set by pressing “Back+ Home” key of
RCU
5.3.3. Applied models
Chassis Model Name Magic RF receiver
LA46B 32LB580B-UG Dongle
32/39/42/47/50/55LB5800-
UG
47/50/55/60LB6100-UG
※ Dongle Model : An USB dongle-type receiver will be
supplied in form of accessory. So this
pairing test is not necessary for these
models
5.4. Wi-Fi MAC Address Check
5.4.1. Using RS232 Command
Command Set ACK
Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

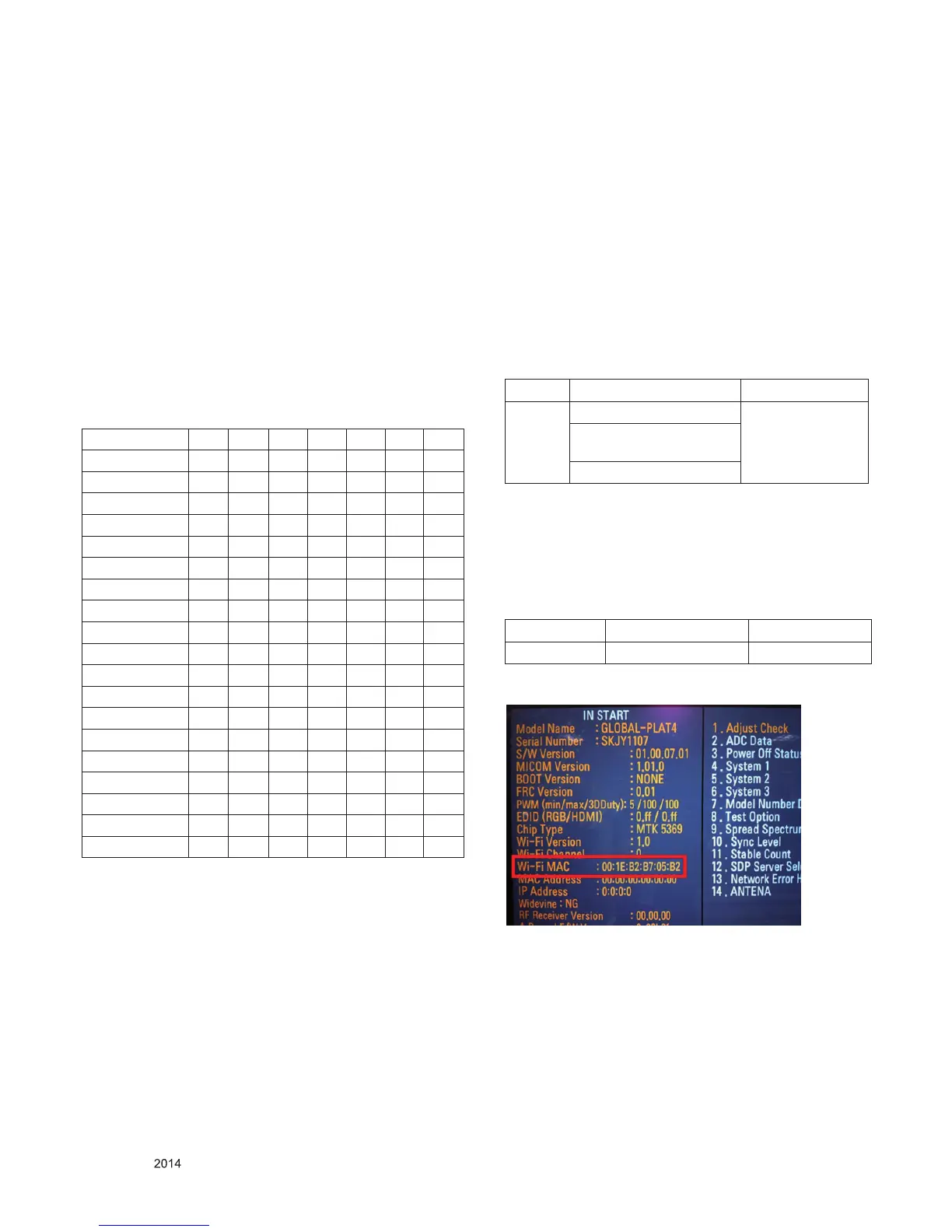

5.4.2. Check the menu on in-start

LG 42LB5800-UG Specifications

General

Screen Type	led
Wall Mount	400mm x 400mm
Tuner	digital
Screen Size	41.9 inches, 42 inches
Screen Technology	qled
Resolution	full hd (1080p)
Refresh Rate	120hz
HDR	yes
HDMI Ports	3
HDMI 2.1 Ports	0
USB Ports	3
RF Antenna	yes
Headphones Output	no
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	hulu, netflix, youtube
Voice Assistant	other
Remote Control	standard
3D	no
Power Consumption	36.52 kilowatt hours
Depth with Stand	10.04 inches
Height with Stand	26.61 inches
Width with Stand	37.88 inches
Net Weight with Stand	20.9 pounds
Depth without Stand	2.19 inches
Height without Stand	22.32 inches
Net Weight without Stand	20.3 pounds
