STAND INSTRUCTIONS
(For 26/32/37/42/47/55LE5300, 26LE5500, 42/47/55LE530C)
Image shown may differ from your TV.
INSTALLATION
NOTE
► When assembling the desk type stand,
make sure the screws are fully tightened (If
not tightened fully, the TV can tilt forward
after the product installation). Do not over
tighten.
2

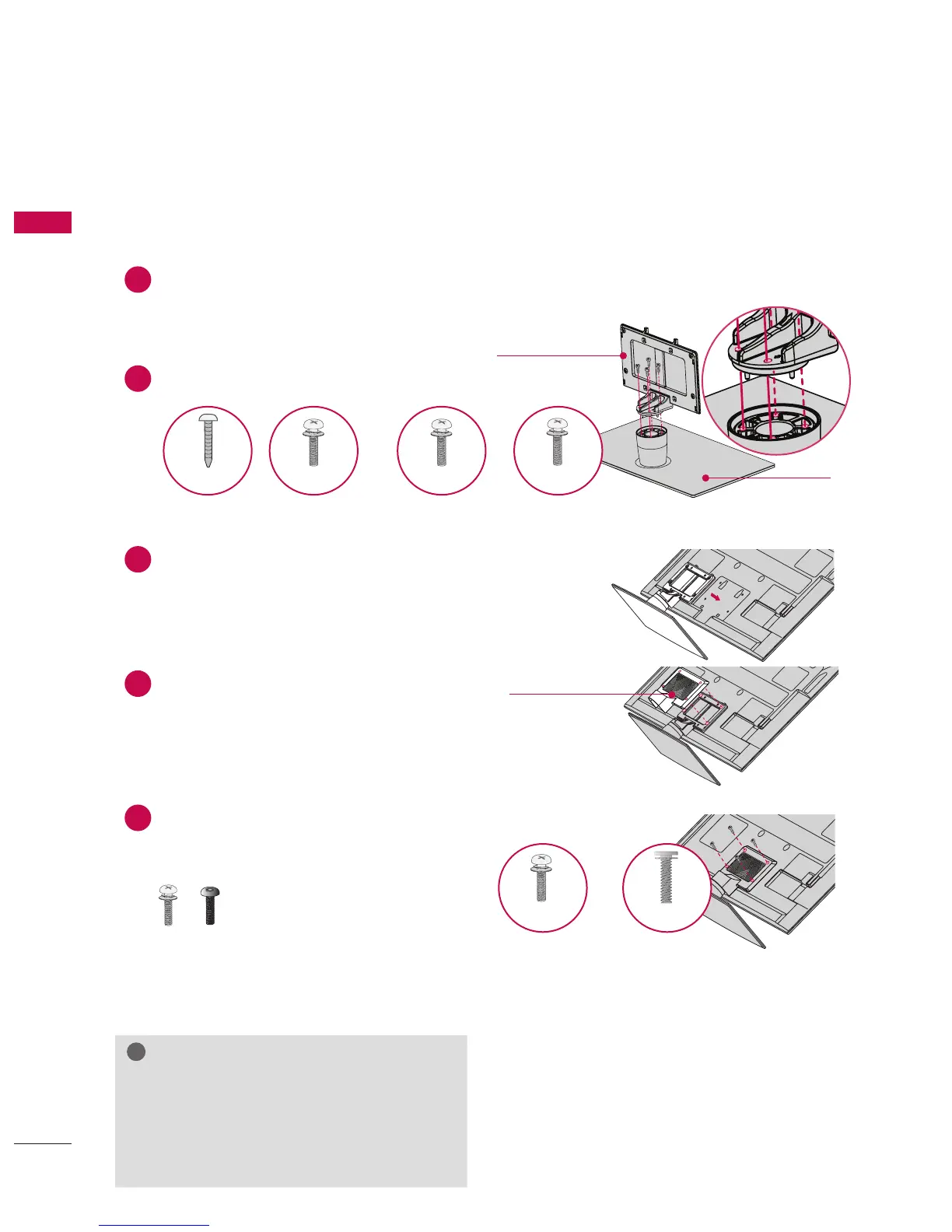

Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
3
Assemble the TV as shown.
1
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
4
Assemble the part of the STAND
REAR COVER with the TV.
5
Install the 4 screws into the holes shown.
STAND BASE
STAND BODY
STAND REAR
COVER
M4 x 22 M4 x 24 M4 x 26M4 x 20
M4 x 16M4 x 14
26LE5300,
26LE5500
26LE5300,
26LE5500
Other models
32LE5300 37/42LE5300,
42LE530C
47/55LE5300,
47/55LE530C
or
Tighten the two of these four
screws and the two Torx plus
star head screws (provided as
parts of the TV) to secure the TV. Tighten
the two Torx plus star head screws with a
star head driver bit (not provided as parts
of the TV).
x 2
x 2
(For 42/47/55LE530C)
To Next Page
