DVI to HDMI Connection

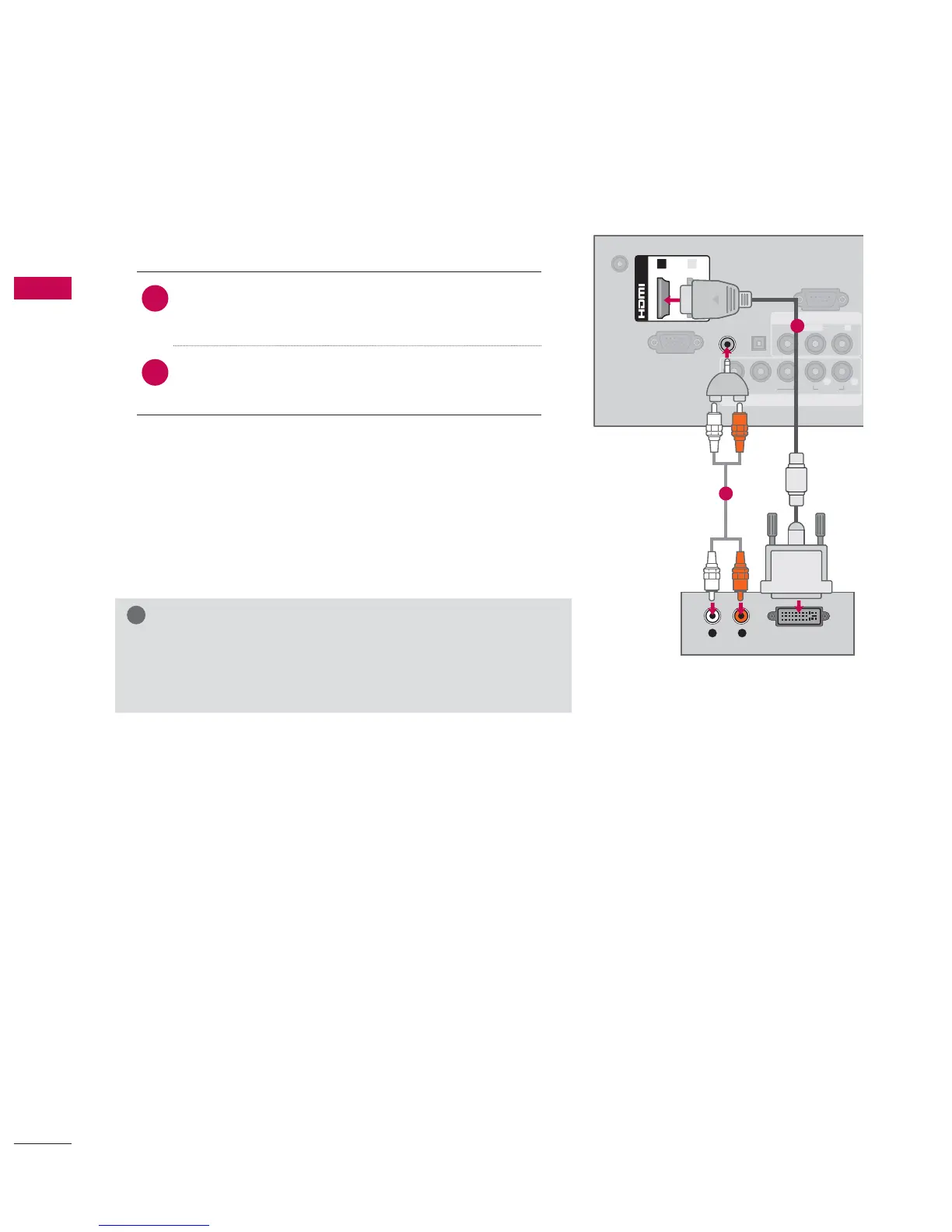

1. How to connect
1
Connect the DVI output of the digital set-top
box to the HDMI/DVI IN 1 jack on the TV.
2
Connect the digital set-top box audio output to
the AUDIO IN
(
RGB/DVI
)
jack on the TV.
2. How to use
ᯫ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box.
)
ᯫ
Select the HDMI1 input source on the TV using
the
INPUT
button on the remote control.
!
NOTE
A DVI to HDMI cable or adapter is required for this con-
nection. DVI doesn't support audio, so a separate audio
connection is necessary.
DC-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
DIGITAL
AUDIO OUT
COMPO ENT IN
AV IN
RS-232C IN
(
CONTROL&SERVICE)
VIDE
AUDIO
L(MONO)
R
VIDEO
AUDIO
YP
B
P
R
L R
(DVI)
/DVI IN
1 2
L R
DVI OUTPUT
AUDIO
1
2
To Next Page
