EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
42
OTHER A/V SOURCE SETUP
ANTENNA/
CABLE IN
DC-IN
RGB IN (PC)
AUDIO IN
RGB DVI
(DVI)
OPTICAL
D GITAL
AUDIO OUT
/DVI IN
COMP NEN N
RS-232C IN
( CONTROL&SERVICE)
1 2
VIDEO
AUDI
YP B P R
L R
AV IN
VIDEO AUDIO
L(MONO)
R
L R
VIDEO
Camcorder
Video Game Set

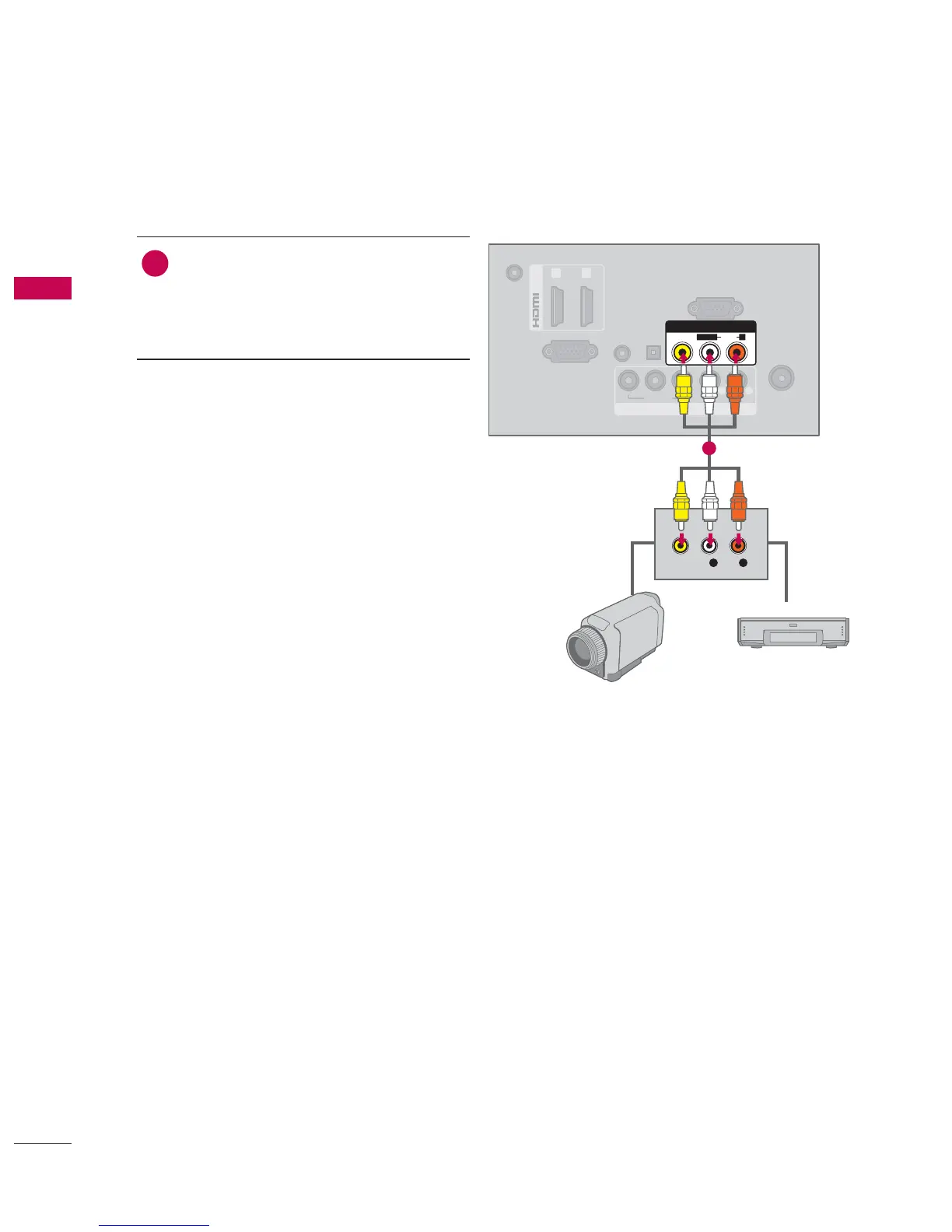

1. How to connect
1
Connect the AUDIO/VIDEO jacks
between TV and external equipment.
Match the jack colors
.
(
Video = yellow, Audio Left = white, and
Audio Right = red
)
2. How to use
ᯫ
Select the AV or AV1/2* input source on
the TV using the INPUT button on the
r
emote control.
ᯫ
Operate the corresponding external
equipment.
1
* AV2: Except 19/22/26LE5300
