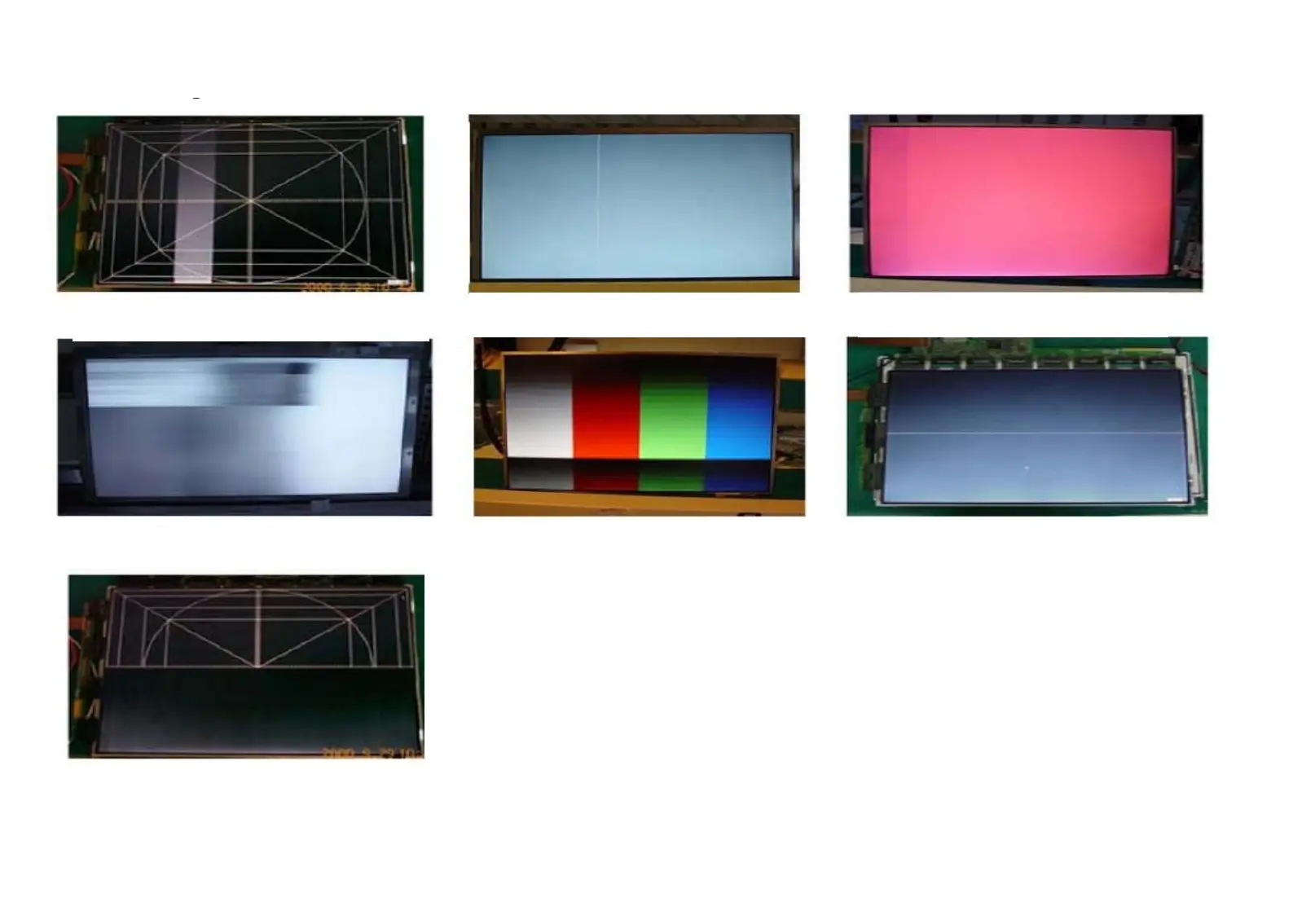

Vertical Block
Source TAB IC Defect
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
Gate TAB IC Defect
Vertical Line
Source TAB IC Defect
Vertical Block
Source TAB IC Defect
Horizontal Block
Gate TAB IC Defect
Horizontal line
Gate TAB IC Defect
Gate TAB IC Defect
Horizontal Block
Gate TAB IC Defect
Appendix : Exchange Module itself(2)
Un-repairable Cases
In this case please exchange the module.
A-5/5
Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes
