10
ASSEMBLY AND PREPARATION
ENGLISH
OPS Hole Cover
Connector on
the KT-OPSA
Connector inside the set
Connecting the OPS
- For certain models only.
- The image may be different according to the
model.

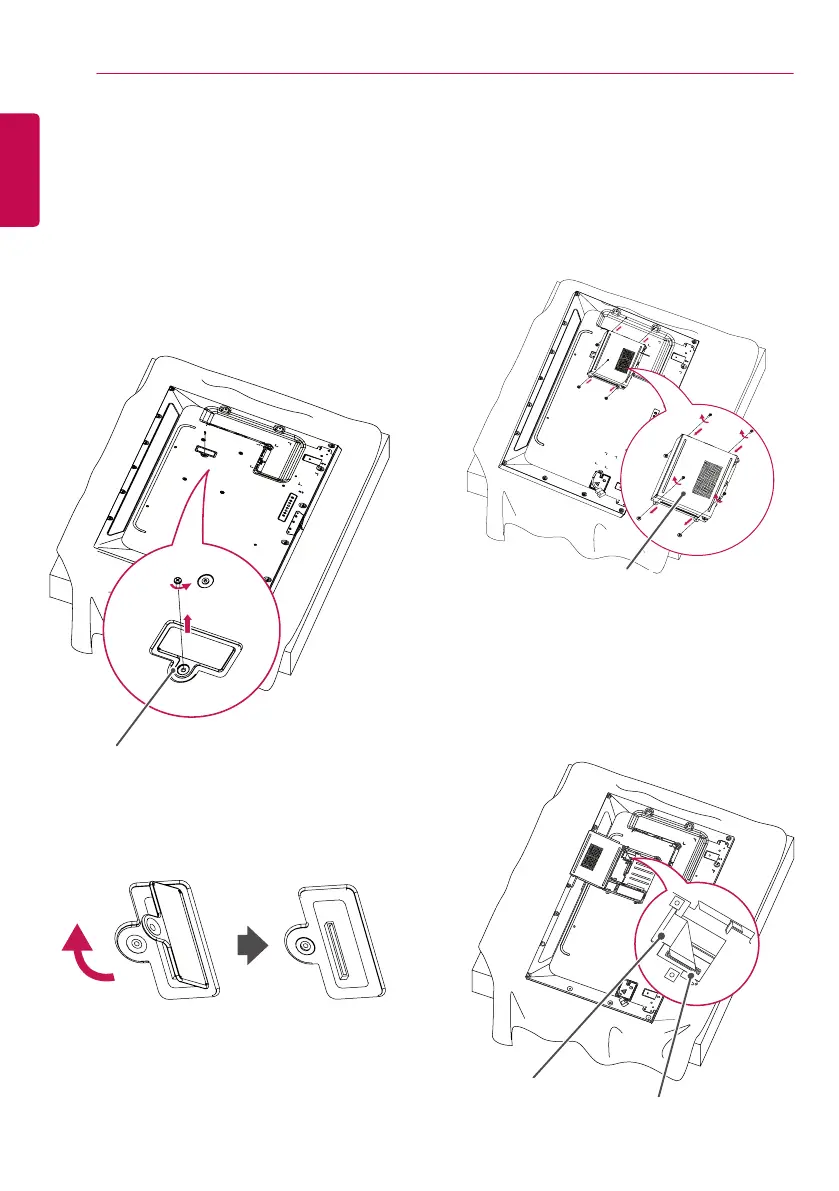

1 Lay a clean cloth on the floor, put the
monitor on it with the screen facing
downward, and then remove the screws
from the OPS hole cover on the rear of the
monitor with a screwdriver.
2 Lift the left side (round part) of the OPS hole
cover. Remove the cover.
3 Align the KT-OPSA along the four screw
holes on the rear of the set and attach it
to the rear of the set using the four screws
provided.
4 Open the top cover of the KT-OPSA and
connect the cable provided to the connector
inside the set and the connector on the KT-
OPSA.
KT-OPSA
To Next Page
