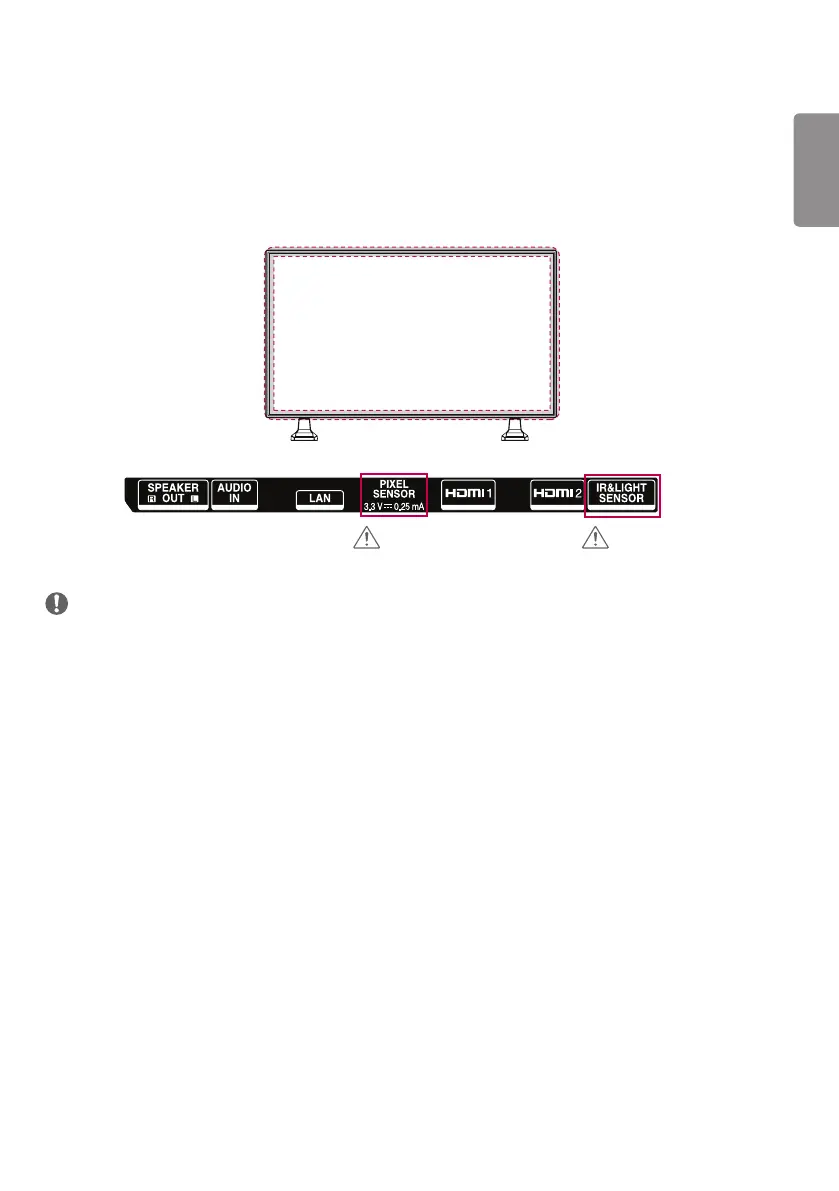

IR & Light Sensor Connection
When the cable is c
onnected to the product, the featur
e for receiving r
emote c
ontrol signals is activated.
The IR & Light
sensor is magnetic. Attach it to the c
orner of the front side of the pr
oduct for use.
[F
ront]
CAUTION
CAUTION
NOTE
•
The signal strength of the
IR & Light sensor will decrease if it is no
t attached to the front of the pr
oduct.
