ASSEMBLING AND PREPARING
NOTE
y You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.
Touch button
2
Description
/ I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
OK
󰭺
Selects the highlighted menu option or confirms an input.
Adjusts the volume level.
P Scrolls through the saved programmes.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
Only 32/42/47/55LW65
**
, 47/55LW95
**
INPUT
HOME
P
OK
H
INPUT
HOME
H
OK
P
WIRELESS
CONTROL
AUDIO
VIDEO
L/MONO
R
RS-232C IN (CONTROL&SERVICE)
AV IN2
ᯱ
LAN RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
13/18V
700mA Max
LNB IN
Satellite
AUDIO IN
(RGB/DVI)
AV1
(RGB)
ANTENNA/
CABLE IN
AV IN 3
AUDIO / VIDEO
COMPONENT IN
AUDIO / Y PB PR
H/P
IN 1(ARC) IN 2 IN 3 IN 4
HDMI/DVI HDMI/DVI HDMI/DVI HDMI/DVI
HDD IN USB IN 1
USB Apps USB IN 2

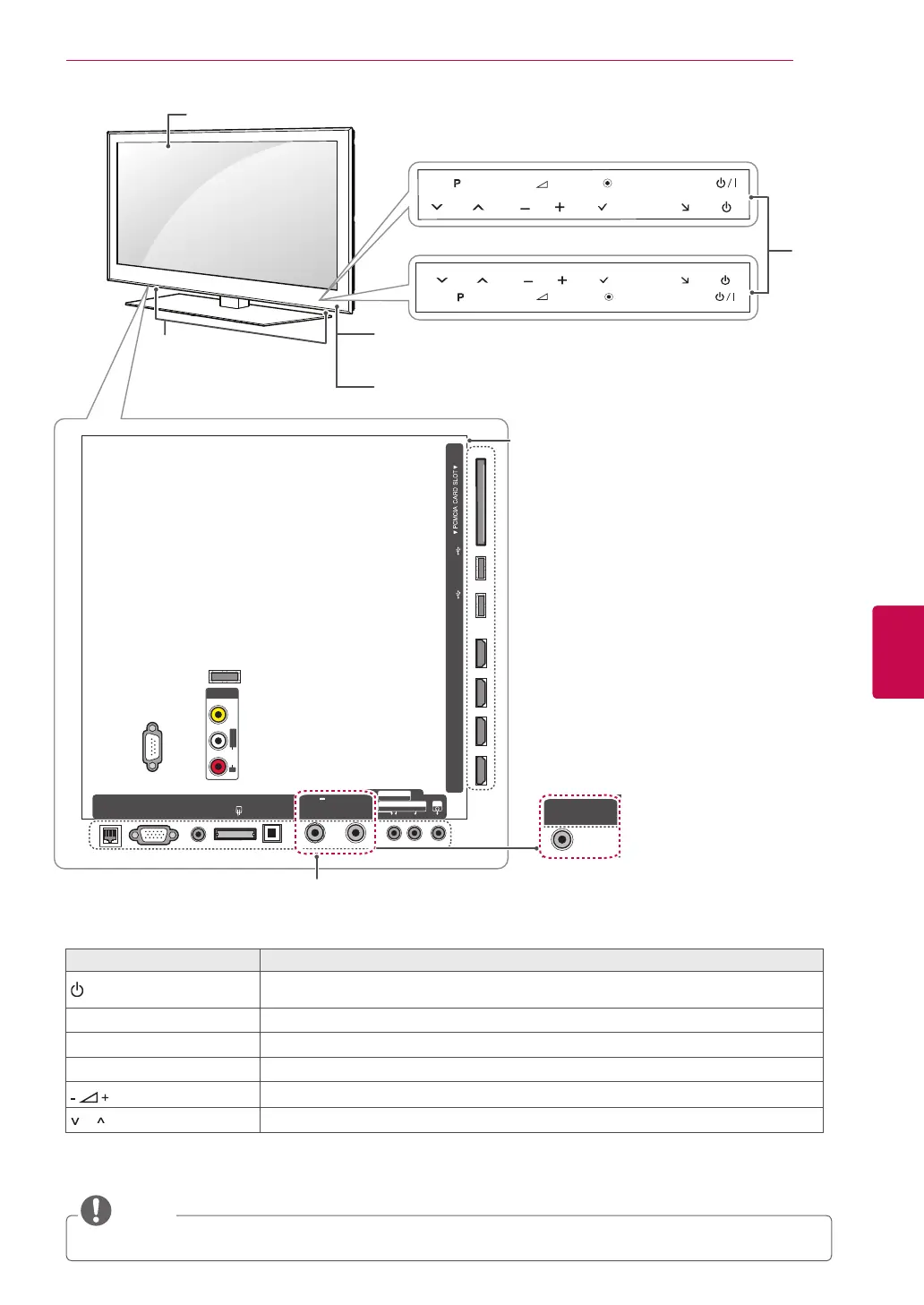

Rear Connection panel
(See p.114)
Speakers
(Only 32/42/47/55LW650S, 32/42/47/55LW650G,
47/55LW950S, 47/55LW950G)
(Except for 32/42/47/55LW650S,
32/42/47/55LW650G, 47/55LW950S,
47/55LW950G)
INPUT
P
OK
WIRELESS
CONTROL
AUDIO
VIDEO
L/MONO
R
RS-232C IN (CONTROL&SERVICE)
AV IN2
ᯱ
IN 1(ARC) IN 2 IN 3 IN 4
USB IN 1 HDD IN
HDMI/DVI HDMI/DVI HDMI/DVI HDMI/DVI
USB IN 2 USB Apps
LAN RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
AV1
(RGB)
ANTENNA/
CABLE IN
AV IN 3
AUDIO / VIDEO
COMPONENT IN
AUDIO / Y PB PR
H/P
HOME
H
Touch
buttons
2
Remote control and
intelligent
1
sensors
Power indicator
Screen
Only 47/55LW95
**
Only 32/42/47/55LW65
**

LG 42LW650T Specifications

General

Display diagonal	42 \
Display brightness	400 cd/m²
Native aspect ratio	16:9
LED backlighting type	-
Supported video modes	1080i, 1080p, 720p
Contrast ratio (dynamic)	9000000:1
3D	Yes
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Smart modes	Cinema, Game
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.2 W
Power consumption (typical)	89 W

Weight and Dimensions

Depth (with stand)	255 mm
Height (with stand)	686 mm
Weight (with stand)	16200 g
Depth (without stand)	29.9 mm
Width (without stand)	1009 mm
Height (without stand)	622 mm
Weight (without stand)	13400 g
