LG 42PG20 - Page 46

46
Plasma Fall 2008 42PG20
2
4
6
8
10
12
14
16
18
22
16V
Gnd
NC
Gnd
5VSTB
5VSTB
Gnd
Gnd
AC Det
VS_ON
Auto Gnd
20
3
5
7
9
11
13
15
17
19
21
Gnd
NC
Gnd
5VSTB
5VSTB
Gnd
Gnd
5_V Det
RL_ON
M5V_ON
1
15V
P813

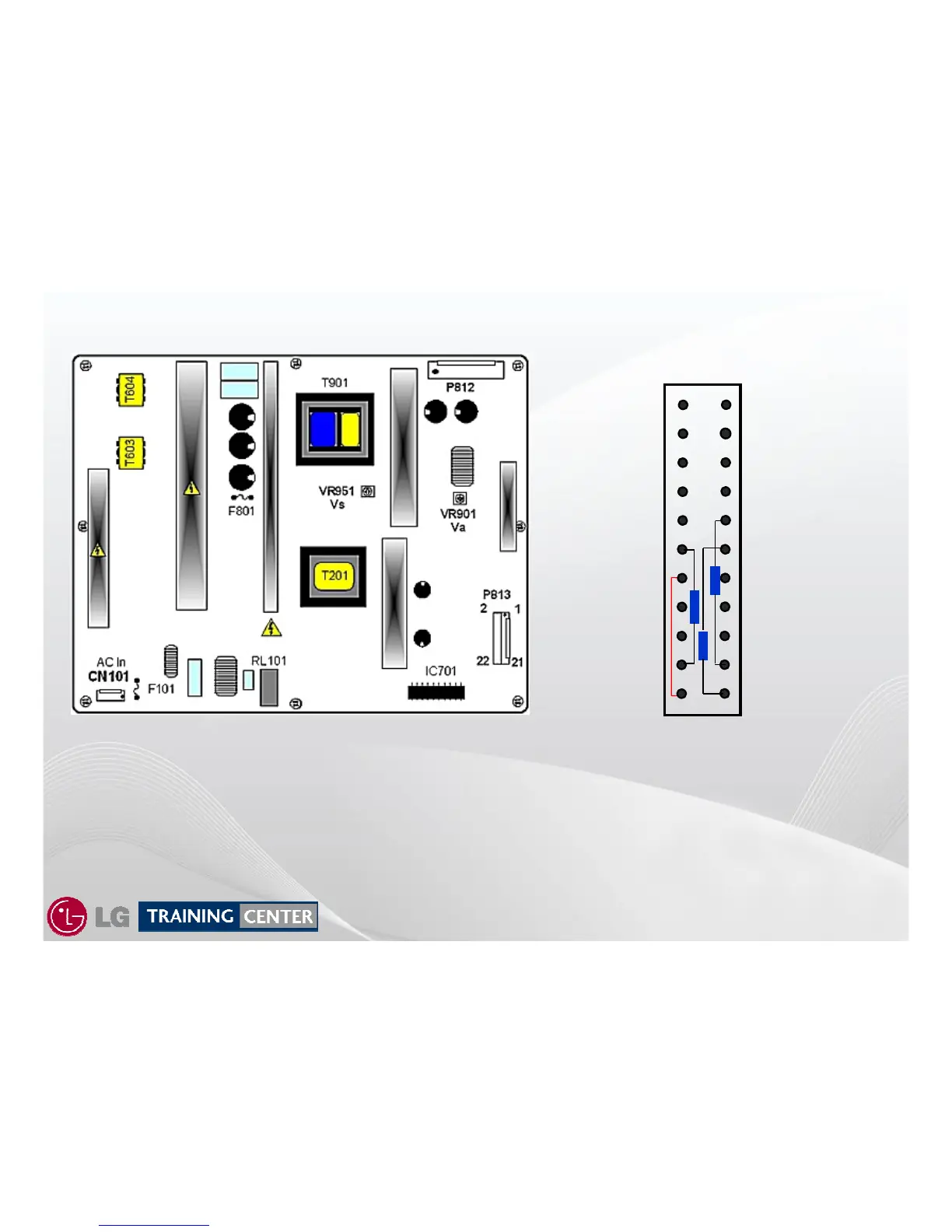

Switch Mode Power Supply Static Test (Forcing on the SMPS in sta
Switch Mode Power Supply Static Test (Forcing on the SMPS in sta
ges)
ges)
AC Power Applied AC Det (Pin 18) and 5V STB (Pins 9 ~ 12) are 5V.
100Ω ¼ watt resistor added from 5V STB (Pins 9 ~ 12) to RL ON (Pin 19) closes relay RL101 turning on the 16V Supply
100Ω ¼ watt resistor added from 5V STB (Pins 9 ~ 12) to VS _ON (Pin 20) brings the VA and VS Lines high
100Ω ¼ watt resistor added from 5V STB (Pins 9 ~ 12) to M5V_ ON (Pin 21) brings the 5V VCC line high
Ground the Auto Ground (Pin 22) on P813
Remove AC between each test step
