Plasma Fall 2008 42PG20

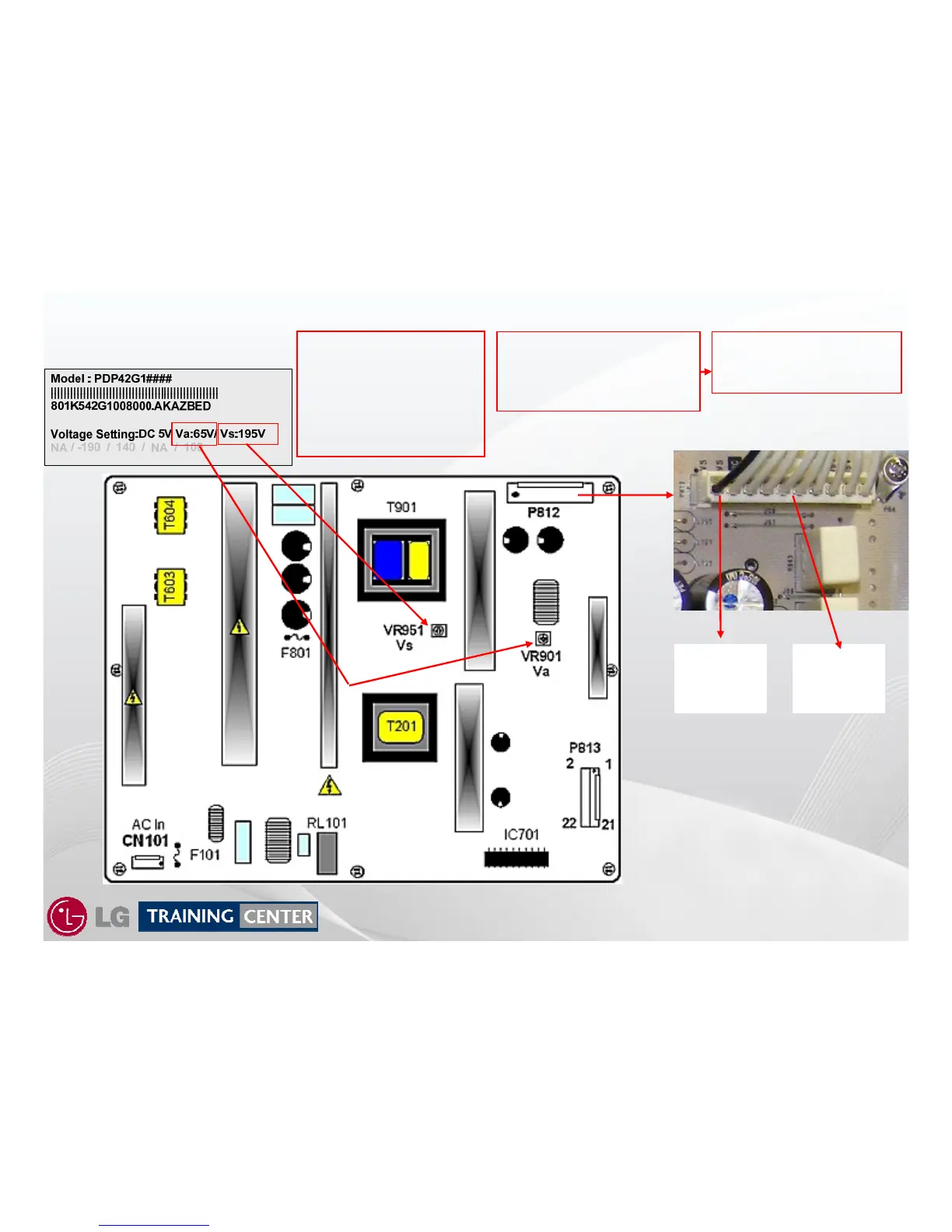

Panel Voltage Label
Pull P813
Apply AC Power
Power Supply Starts.
Vs TP
P812
Pin 1 or 2
This Power
Supply will come
up and run with
“NO” load.
P812 pulled.
Use Full White Raster
Va and Vs Adjustments
Va and Vs Adjustments
Y-Z SUS Runs “Yes”
Both Y and Z waveforms
Generated “Yes”
Va TP
P812
Pin 5 or 6
