LG 42PG20 - Page 49

49
Plasma Fall 2008 42PG20

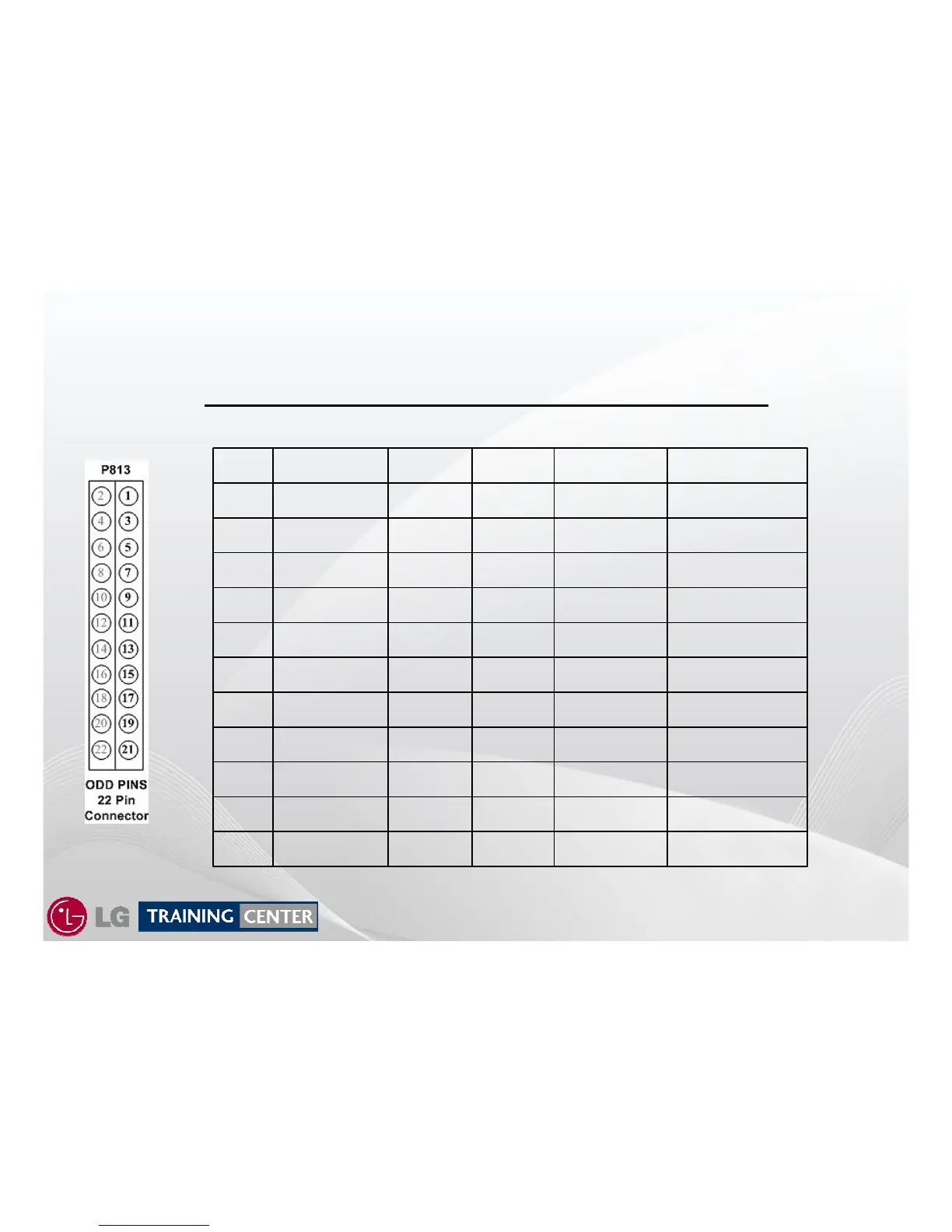

Voltage and Resistance Measurements for the SMPS (Page 1 of 2)
Resistance Readings with the PCB Disconnected
P803 Odd Pins ID and Voltages
P803 Odd Pins ID and Voltages
Open0V3.24V0VM5V_ON21
Open0V3.73V0VRL_On19
1.92V5V5V.15V5_V Det17
GndGndGndGndGnd15
GndGndGndGndGnd13
1.43V5V5V5V5V11
1.43V5V5V5V5V9
GndGndGndGndGnd7
OpenNCNCNCNC5
GndGndGndGndGnd3
1.5V16.5V16.5V0V15V1
Diode ModeNo LoadRun STBYLabelPin
P813 CONNECTOR Odd "SMPS" to P701 "Main PWB"
