LG 42PG20 - Page 50

50
Plasma Fall 2008 42PG20

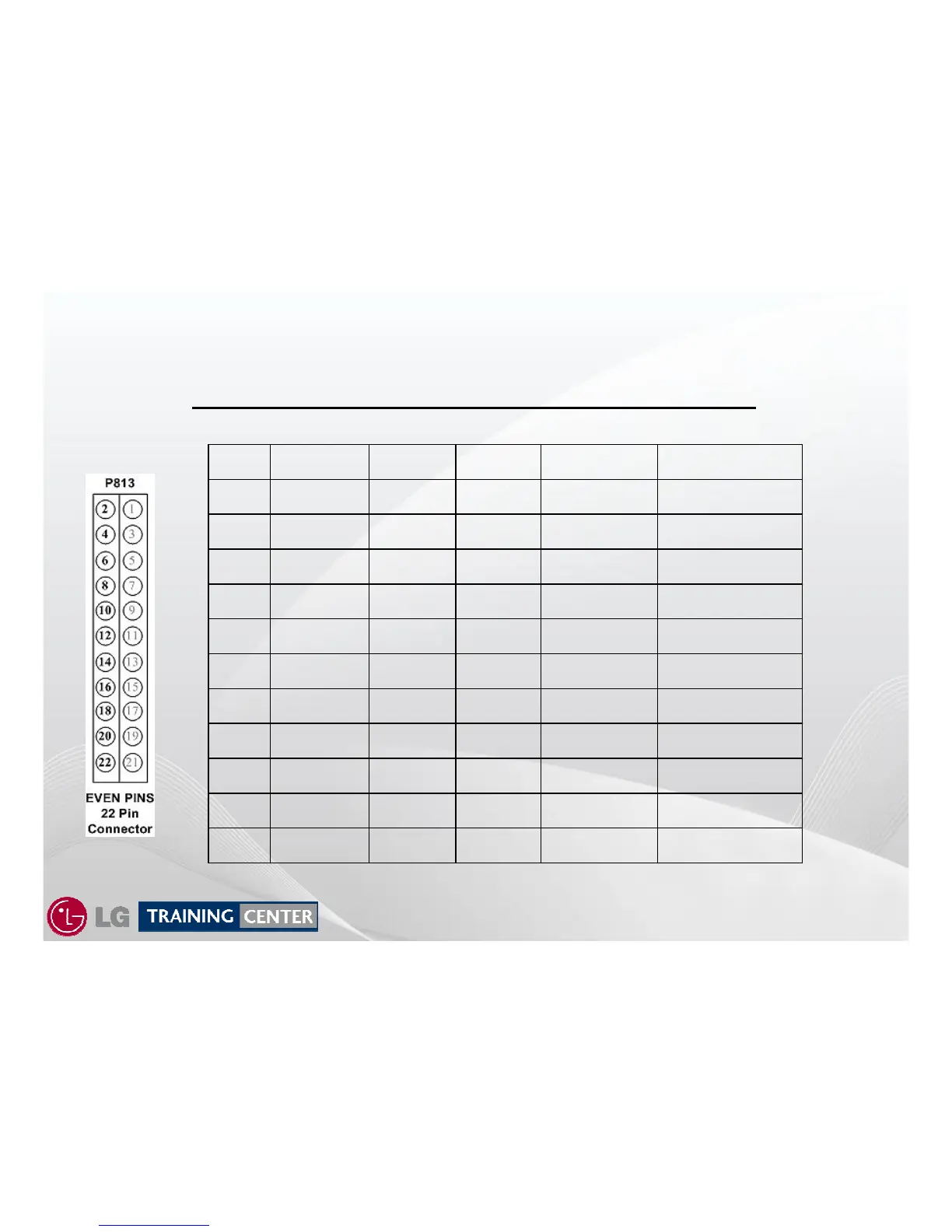

Voltage and Resistance Measurements for the SMPS (Page 2 of 2)
Resistance Readings with the PCB Disconnected
P803 Even Pins ID and Voltages
P803 Even Pins ID and Voltages
Open5V0V0VAUTO22
Open0V3.2V0VVs_On20
2.3V5V5V5VAC Det18
GndGndGndGndGnd16
GndGndGndGndGnd14
1.43V5V5V5V5V12
1.43V5V5V5V5V10
GndGndGndGndGnd8
OpenNCNCNCNC6
GndGndGndGndGnd4
1.5V16.5V16.5V0V15V2
Diode ModeNo LoadRun STBYLabelPin
P813 CONNECTOR Even "SMPS" to P701 "Main PWB"
