LG 42PG20 - Page 70

70
Plasma Fall 2008 42PG20
P100
+5V

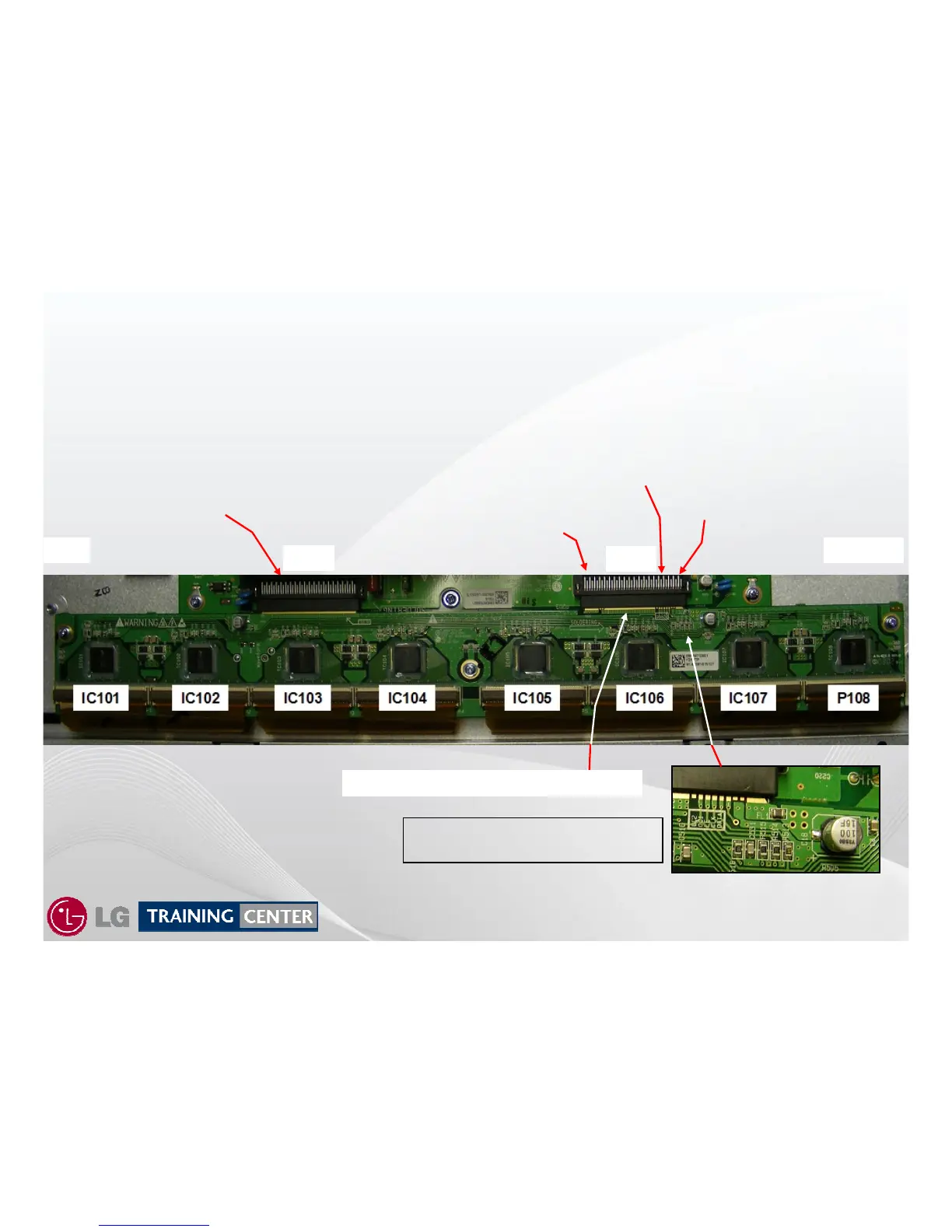

5 Volts, Y Drive and Logic Signals from Y SUS Board are supplied to the Drive Board on Connectors P200.
Logic Signals from P100.
Y Drive PWB ID
Y Drive PWB ID
P200
Y Drive and Logic Signals
(Clock and Data) from the
Y SUS Board
TOP BOTTOM
Check 5V supply using FL1 or C18.
Measured from Floating Ground
Floating Ground from the Y SUS Board
PANEL SIDE
Y-SUS SIDE
Floating Ground from the Y SUS Board
Y Drive Sig
(Scan)
