Plasma Fall 2008 42PG20
Y Drive P200
Y Drive P200

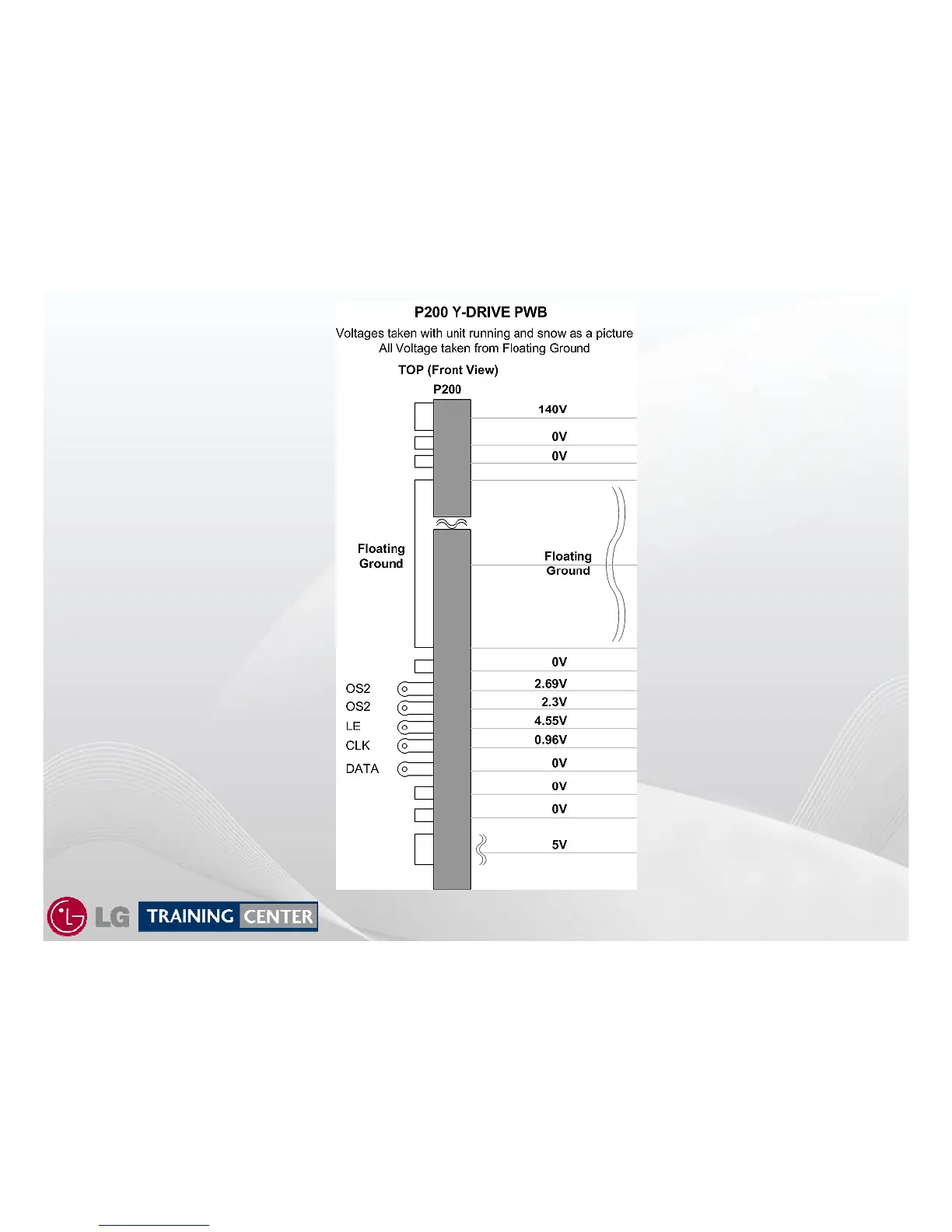

Voltage Readings
Voltage Readings
Back and Front of
Back and Front of
Connector Identical.
Connector Identical.
All voltages taken
All voltages taken
from Floating
from Floating
Ground.
Ground.
Warning: Do not
Warning: Do not
hook scope ground
hook scope ground
up unless set
up unless set
plugged into an
plugged into an
isolation
isolation
transformer.
transformer.
