Plasma Fall 2008 42PG20

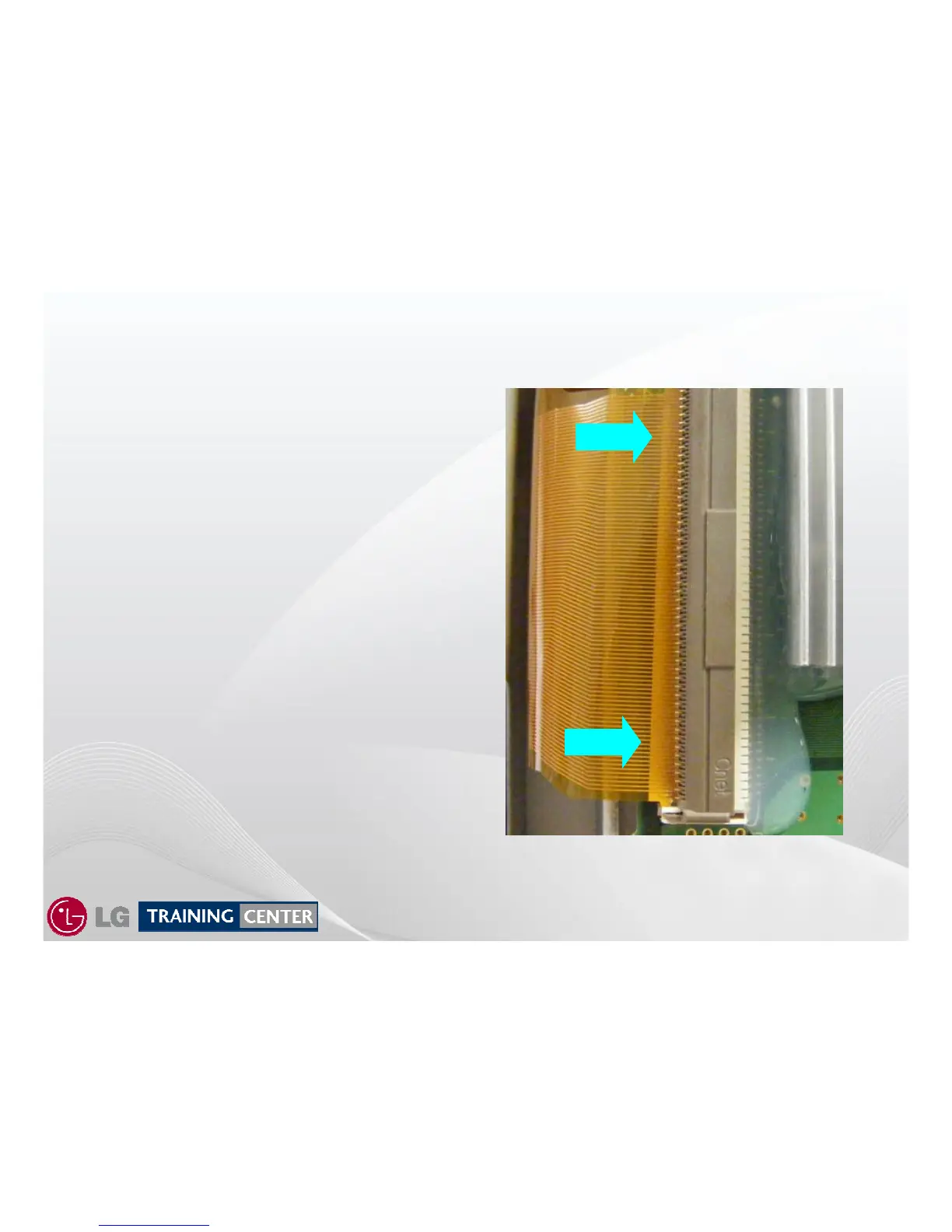

The Ribbon Cable is clearly
improperly seated into the
connector. You can tell by
observing the linearity.
The Locking Tab will offer a
greater resistance to closing in
the case.
Note the cable is crooked. In
this case the Tab on the Ribbon
cable was improperly seated at
the bottom. This can cause
bars, lines, intermittent lines
abnormalities in the picture.
Remove the ribbon cable and
re-seat it correctly.
Y Drive Flexible Ribbon Incorrectly Seated
Y Drive Flexible Ribbon Incorrectly Seated
