79
Plasma Fall 2008 42PG20

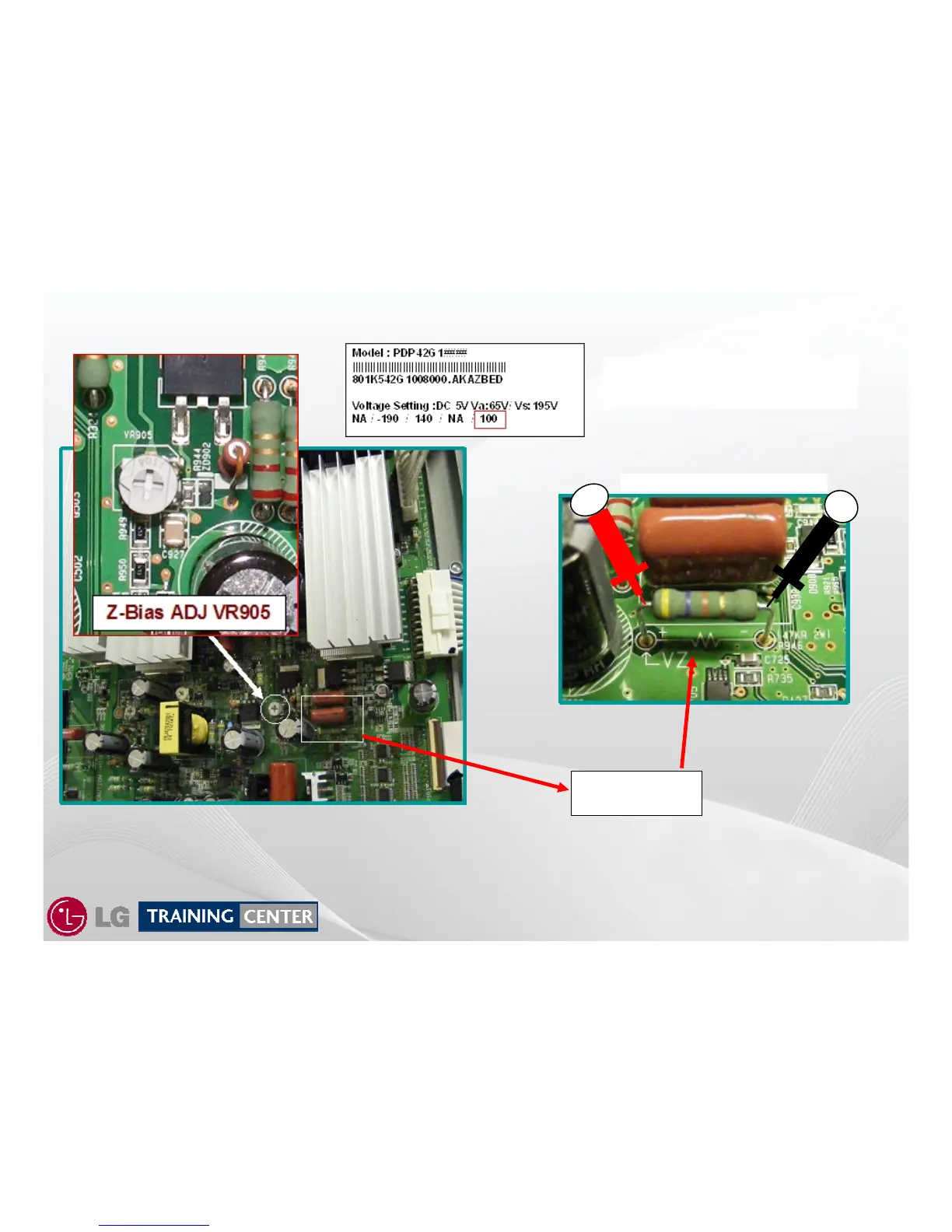

ZBias TP R946
+
-
VZ (Z
VZ (Z
-
-
Bias) Adjustment
Bias) Adjustment
P801
To
Z-SUS
VZ (Z-Bias)
VZ (Z-Bias) TP
R946
Read the Label on the back of the
upper left hand side of the panel.
Adjust R946 to that voltage.
Set should run for 15 minutes, this is the “Heat Run” mode.
Set screen to “White Wash” mode or 100 IRE White input.
Adjust VZ (Z-Bias) to 100V (+/- 1V
