LG 42PG20 - Page 84

84
Plasma Fall 2008 42PG20
X001
Crystal
Temp
LEDs
P162
P161
P160
L
V
D
S
To
Y-Z-
SUS
To X Drive Left
T
o
X
D
r
i
v
e
R
i
g
h
t
P164
P131
IC201
MCM
P121
IC212
IC213
IC121
IC101
IC211
IC171
IC122
IC133
AUTO GEN TEST
PATTERN

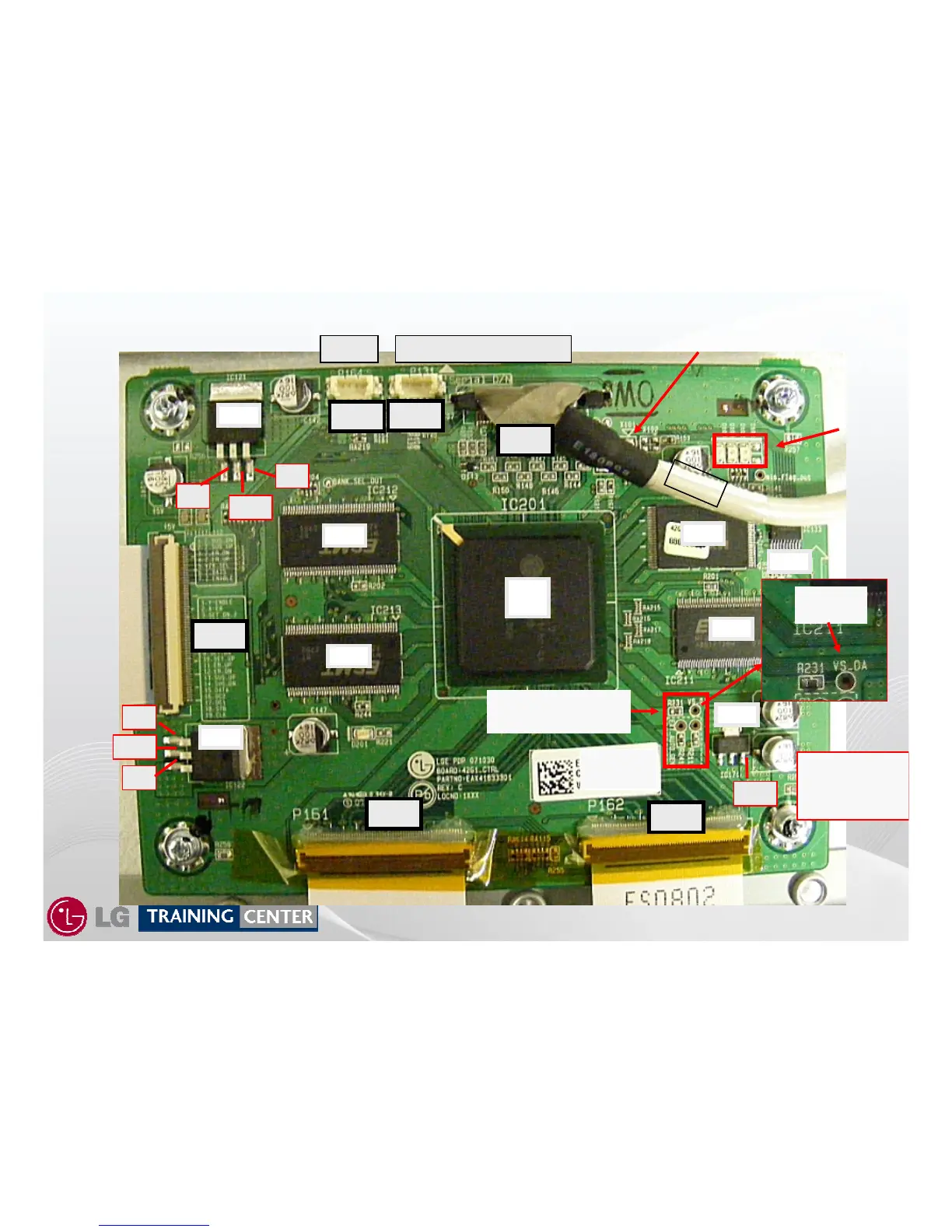

Control PWB Identified
Control PWB Identified
Download Connection
To P101
Y-SUS
5V
Part Number
Label
3.3V
0V
n/c
5V
3.3V
0V
IC171
Pin 1 ---- 3.29V
Pin2 ---- 1.20v
Pin 3 ---- 0V
3.3V
VS_DA
3V ~3.3V
