Plasma Fall 2008 42PG20

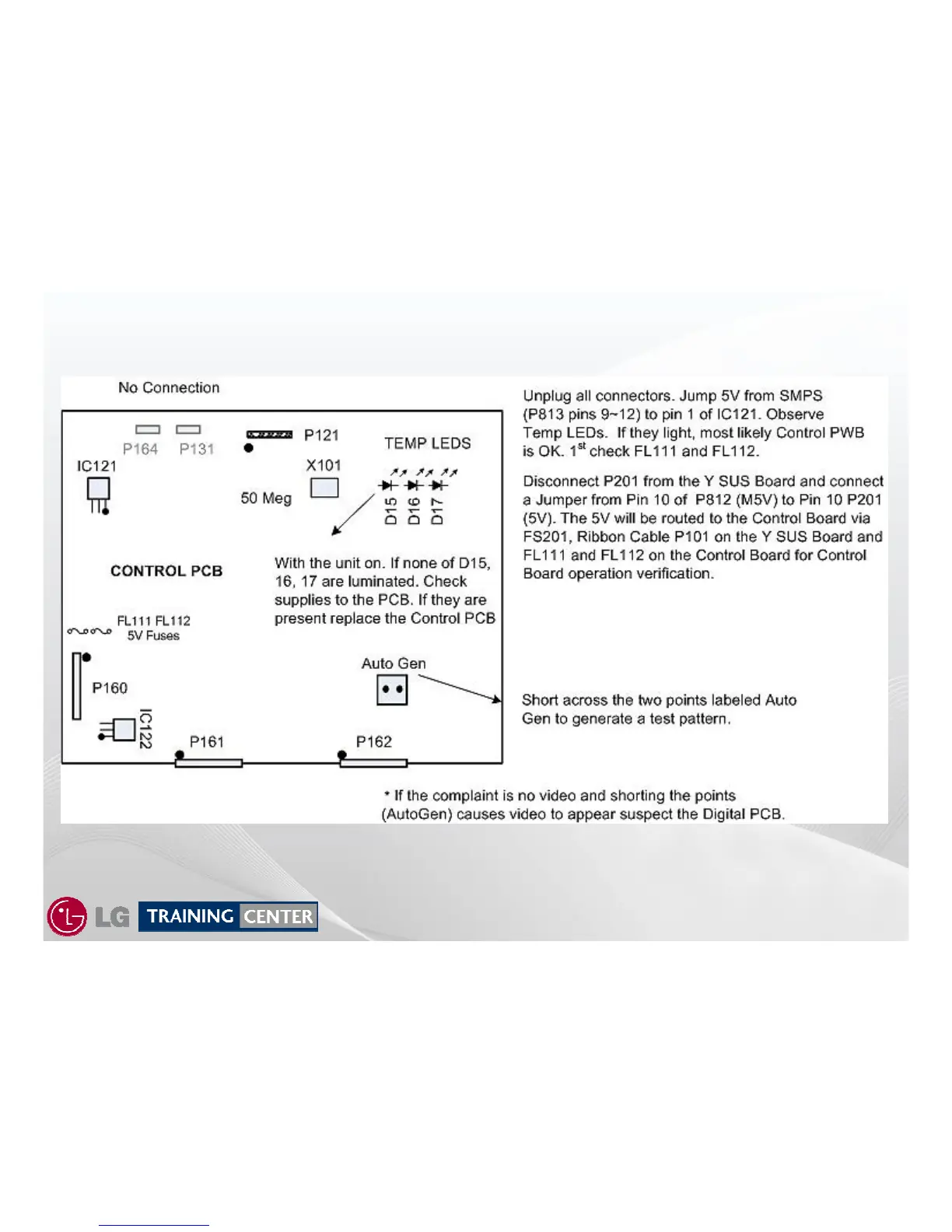

Control PWB Pictorial
Control PWB Pictorial
IC121
Pin 1 – 4.75V
Pin 2 – 3.3V
Pin 3 – 0V
Note: P812 on SMPS P201 on Y SUS
IC122
Pin 1 – 4.75V
Pin 2 – 3.3V
Pin 3 – 0V
