- 10 -

Only for training and service purposes

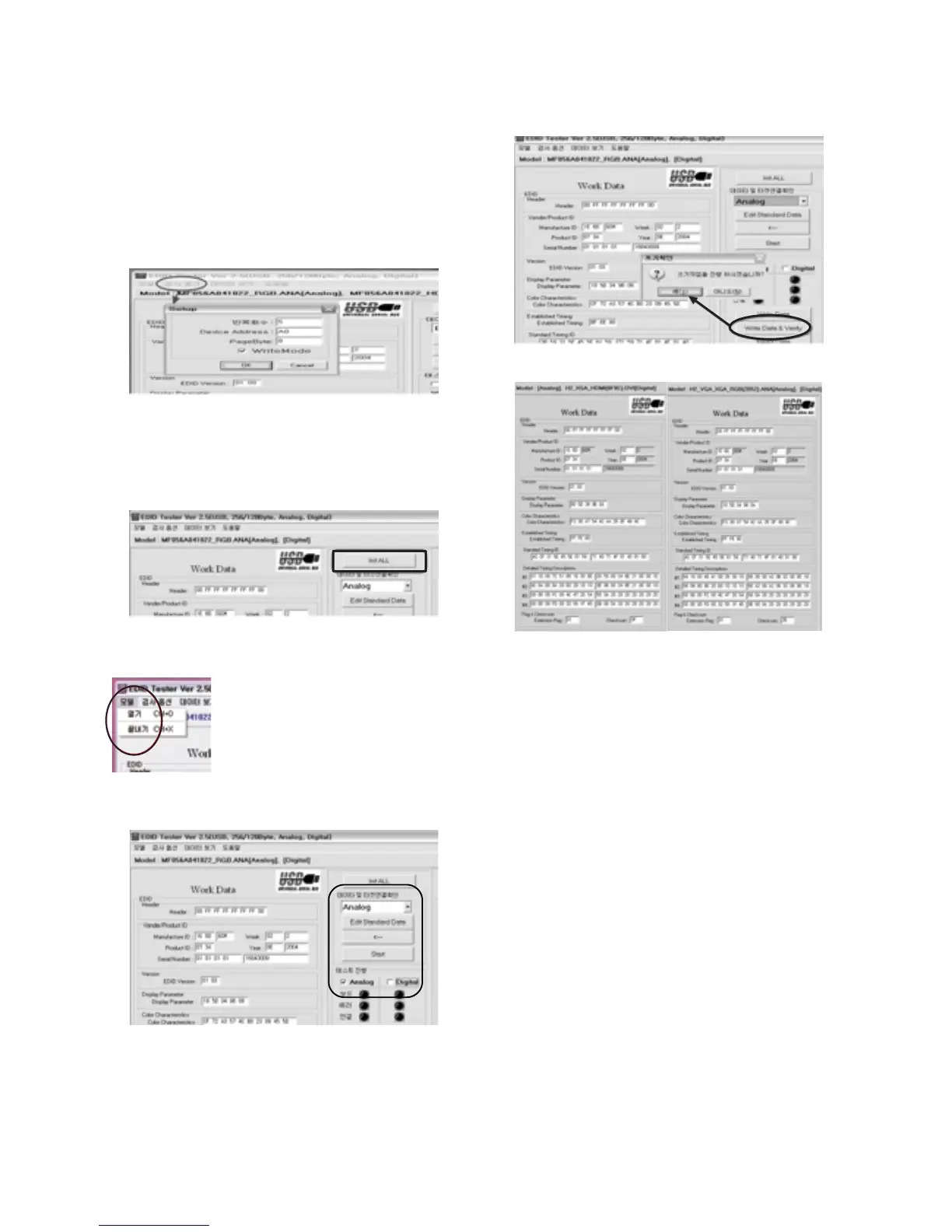

7-5. Preparation for Adjustment

(1) As above Fig. 3, Connect the Set, EDID Download Jig,,

PC & Cable

(2) Turn on the PC & EDID Download Jig. And Execute the

S/W : EDID TESTER Ver.2.5

(3) Set up the S/W option

Repeat Number : 5

Device Address : A0

PageByte : 8

(4) Power on the Set

1) Sequence of Adjustment

1. DDC data of Analog-RGB

(1) Init the data

(2) Load the EDID data.(Open File).

[Analog - RGB : PP81A_RGB.ANA]

[Digital - HDMI1 : PP81A_HDMI1.DVI]

[Digital - HDMI2 : PP81A_HDMI2.DVI]

[Digital - HDMI3 : PP81A_HDMI3.DVI]

(3) Set the S/W as below.

(4) Push the “Write Data & Verify” button. And confirm “Yes”.

(5) If the writing is finished, you will see the “OK” message.

8. HDCP(High-Bandwidth Digital Contents Protection)

(1) Connect D-sub Signal Cable to D-Sub Jack

(2) Input HDCP key with HDCP-key- in-program

(3) HDCP Key value is stored on Main M-STAR

IC(LGE6891DD) which is 0x80~0x90 addresses of

0x00~0x01 page(EEPROM MAP PAGE0~PAGE1 /

START :A080)

(4) Play the Equipment(DVD Player) included HDCP Key and

confirm whether picture is displayed or not of using DVD

Player.

(5) HDCP Key value is different among the sets

Open File
