LG 42PJ350 Training Manual

68
August 2010 42PJ350 Plasma
Using the “Diode Test” on the DVM, check
the pins for shorts or abnormal loads.
Y
Y
-
-

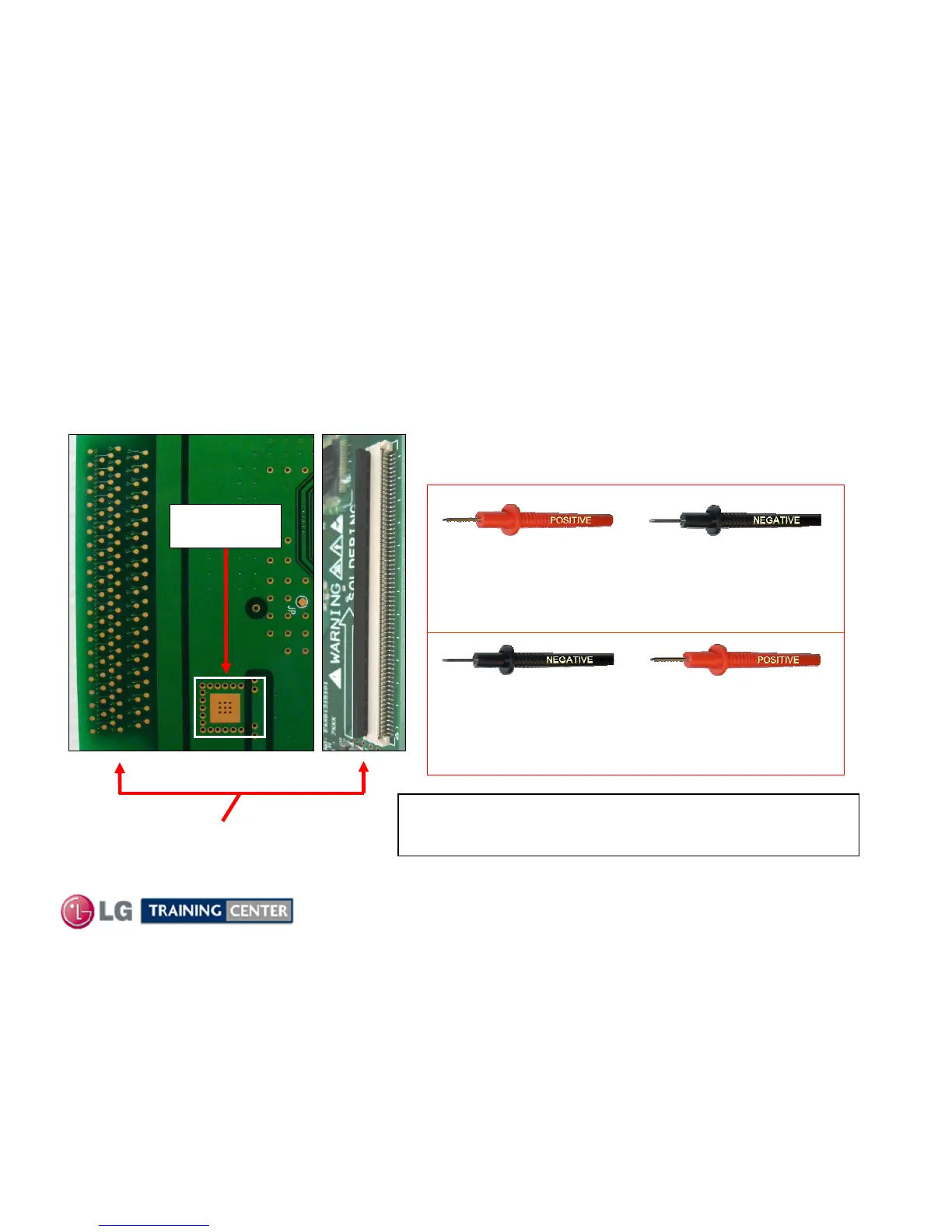

Drive Buffer Troubleshooting
Drive Buffer Troubleshooting
RED LEAD On
Floating Ground
BLACK LEAD On “ANY”
Output Lug Reads 0.80V
YOU CAN CHECK FOR A SHORTED BUFFER ICs OUTPUT USING THIS PROCEDU
YOU CAN CHECK FOR A SHORTED BUFFER ICs OUTPUT USING THIS PROCEDU
RE
RE
Any of these output lugs can be checked from
floating ground. Look for shorts indicating a
defective Buffer IC
Indicated by white outline
6 Ribbon cables communicating with the Panel’s (Horizontal
Electrodes) totaling 768 lines determining the Panel’s Vertical
resolution pixel count.
FRONT SIDE
BUFFER IC
(FGnd)
BACK SIDE
BLACK LEAD On
Floating Ground
RED LEAD On “ANY”
Output Lug Reads Open
Indicated by white outline
