EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
■
To prevent damage do not connect to the mains outlet until all connections are made between the devices.
AV IN 3
L/MONO
R
AUDIO
VIDEO
S-VIDEO
USB IN
SERVICE ONLY
COMPONENT IN
IN 2
AV IN 3
L/MONO
R
AUDIO
VIDEO
S-VIDEO
USB IN
SERVICE ONLY
COMPONENT IN
IN 2

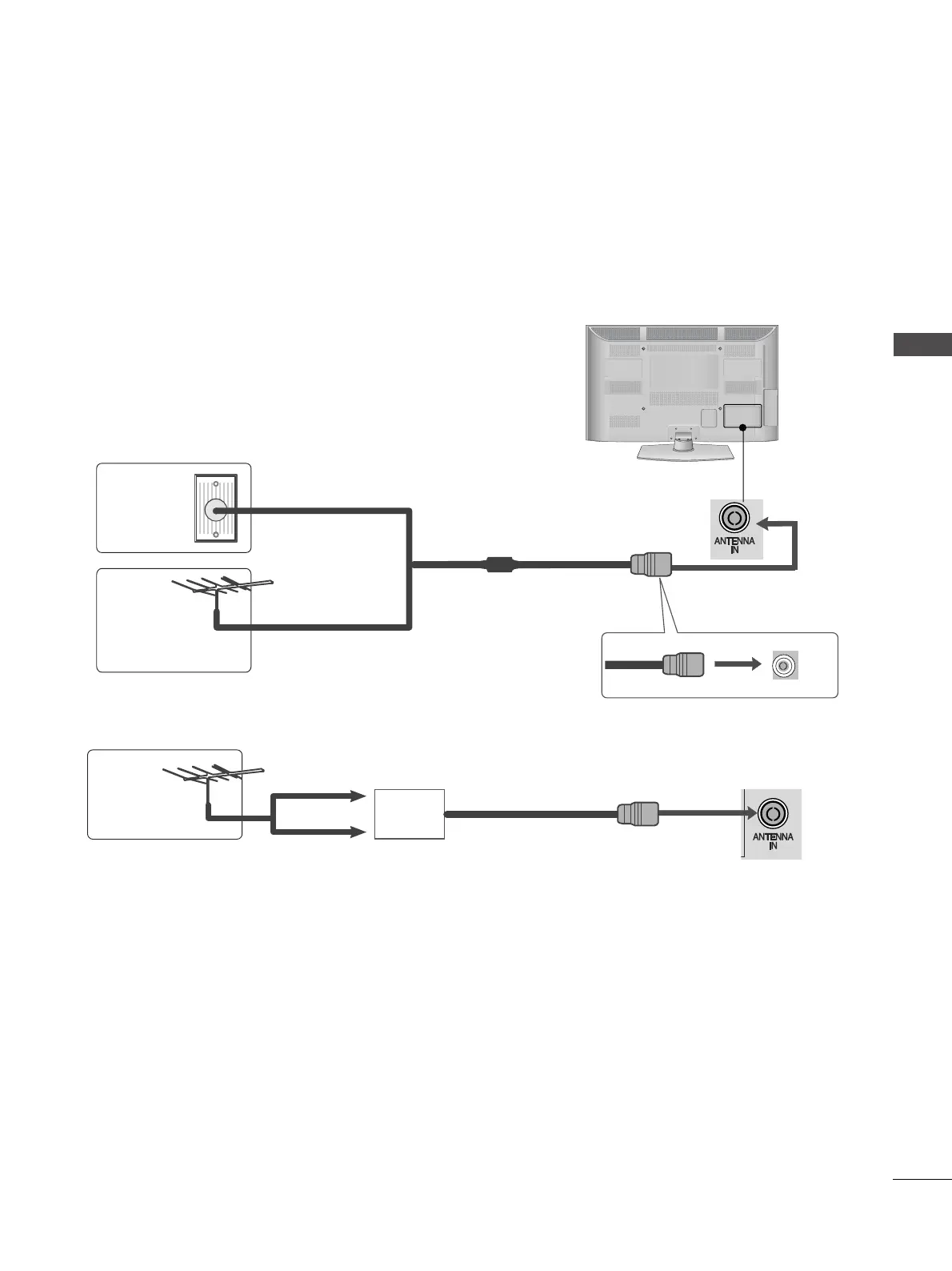

ANTENNA CONNECTION
■
For optimum picture quality, adjust antenna direction.
■
An antenna cable and converter are not supplied.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire (75 Ω)
Antenna
UHF
Signal
Amplifier
VHF
■
In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplifier to the
antenna as shown above.
■
If signal needs to be split for two TVs,use an antenna signal splitter for connection.
AV IN 3
L/ MONO
R
AUDIO
VIDEO
S-VIDEO
USB IN
SERVICE ONLY
COMPONENT IN
IN 2

LG 42PJ550 Specifications

General

Integrated clock	Yes
Number of AV connections	2
Mean time between failures (MTBF)	100000 h
RS-232 ports	1
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
LED indicators	Stand-by
Display diagonal	42 \
Display brightness	1500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	3000000:1
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	309.7 mm
Width (with stand)	1171.4 mm
Height (with stand)	786.2 mm
Weight (with stand)	31000 g
Depth (without stand)	55.3 mm
Height (without stand)	724.4 mm
Weight (without stand)	28600 g
