LG 42PT350C Service Manual

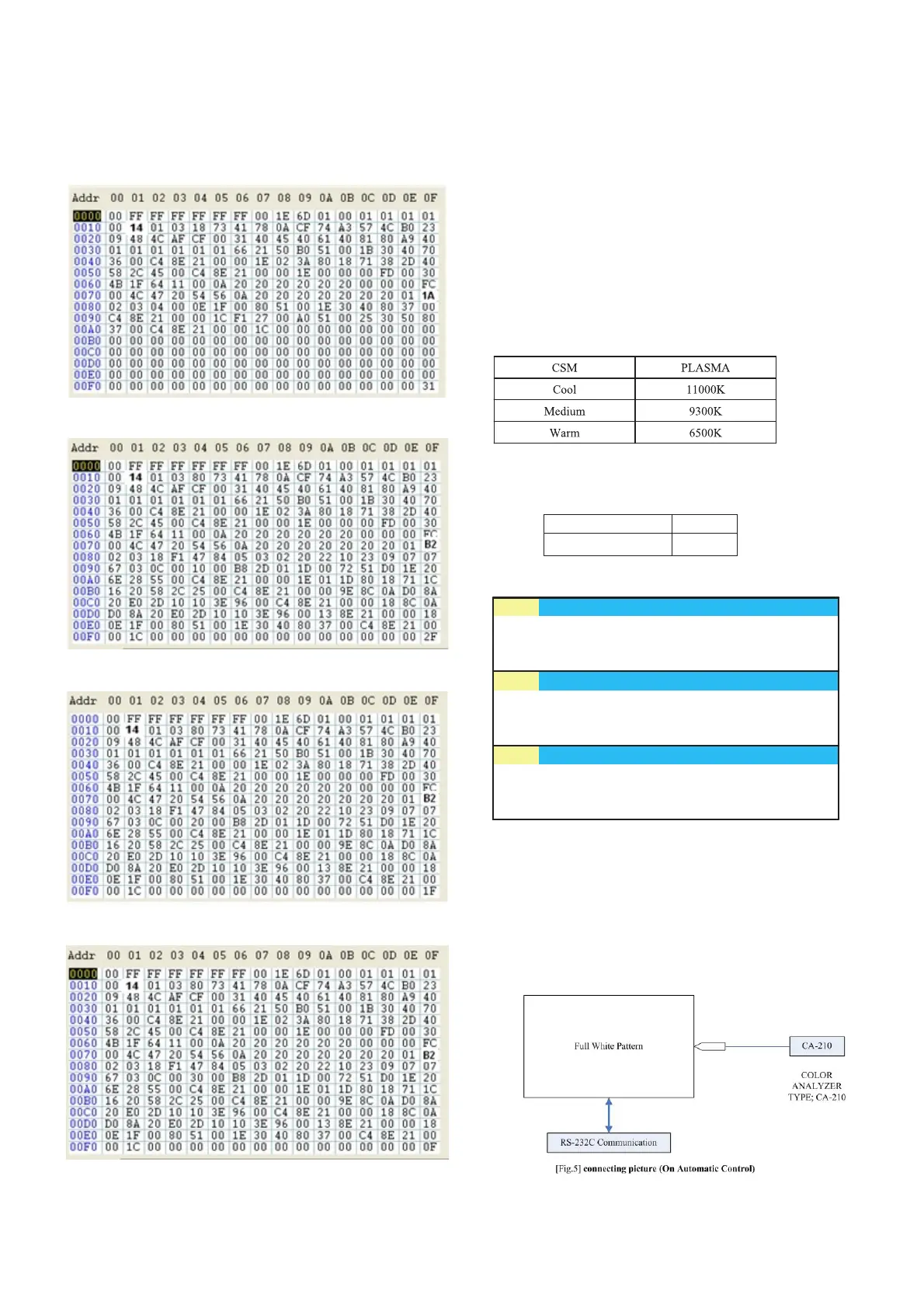

7-3 HD EDID DATA
RGB EDID DATA
HDMI-1 EDID DATA
HDMI-2 EDID DATA
HDMI-3 EDID DATA
8. Adjustment of White Balance
Caution: Press the POWER ON KEY on R/C before W/B adjustment.
8-1. Test Equipment
- Color Analyzer(CS-1000, CA-100+(CH.10), CA-210(CH.10) )
[ Please adjust CA-100+ / CA-210 by CS-1000 before measuring
--> You should use Channel 10 which is Matrix compensated
(White, Red, Green, Blue revised) by CS-1000 and adjust
in accordance with White balance adjustment coordinate.
O Color temperature standards according to CSM and Module
O Change target luminance and range of the Auto adjustment
W/B equipment.
O White balance adjustment coordinate and color temperature
8-2. Connecting Picture of the Measuring
Instrument
(On Automatic control )
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push control R/C ADJ Key‡ Enter the mode
of White-Balance, the pattern will come out.
- 9 -
LGE Internal Use OnlyCopyright ©2011 LG Electronics Inc. All rights reserved.
Only for training and service purposes
0.0030.0030.003
[ PC (for communication through RS-232C) ==> UART Baud rate : 115200 bps
3uv
0.329±0.0020.329±0.0020.329y
0.313±0.0020.313±0.0020.313x
CA-210 (CH.10)CA-100+ (CH.10)CS-1000Warm
0.0000.0000.0003uv
0.293±0.0020.293±0.0020.293y
0.285±0.0020.285±0.0020.285x
CA-210 (CH.10)CA-100+ (CH.10)CS-1000
Medium
0.0000.0000.0003uv
0.283±0.0020.283±0.0020.283y
0.276±0.0020.276±0.0020.276x
CA-210 (CH.10)CA-100+ (CH.10)CS-1000Cool
Target luminance 65
Range 20
