LG 43LX570M User Manual

19
ENGLISH
External Control Device Setup
(Except for LX570M, LX770M series)
• Image shown may differ from your TV.

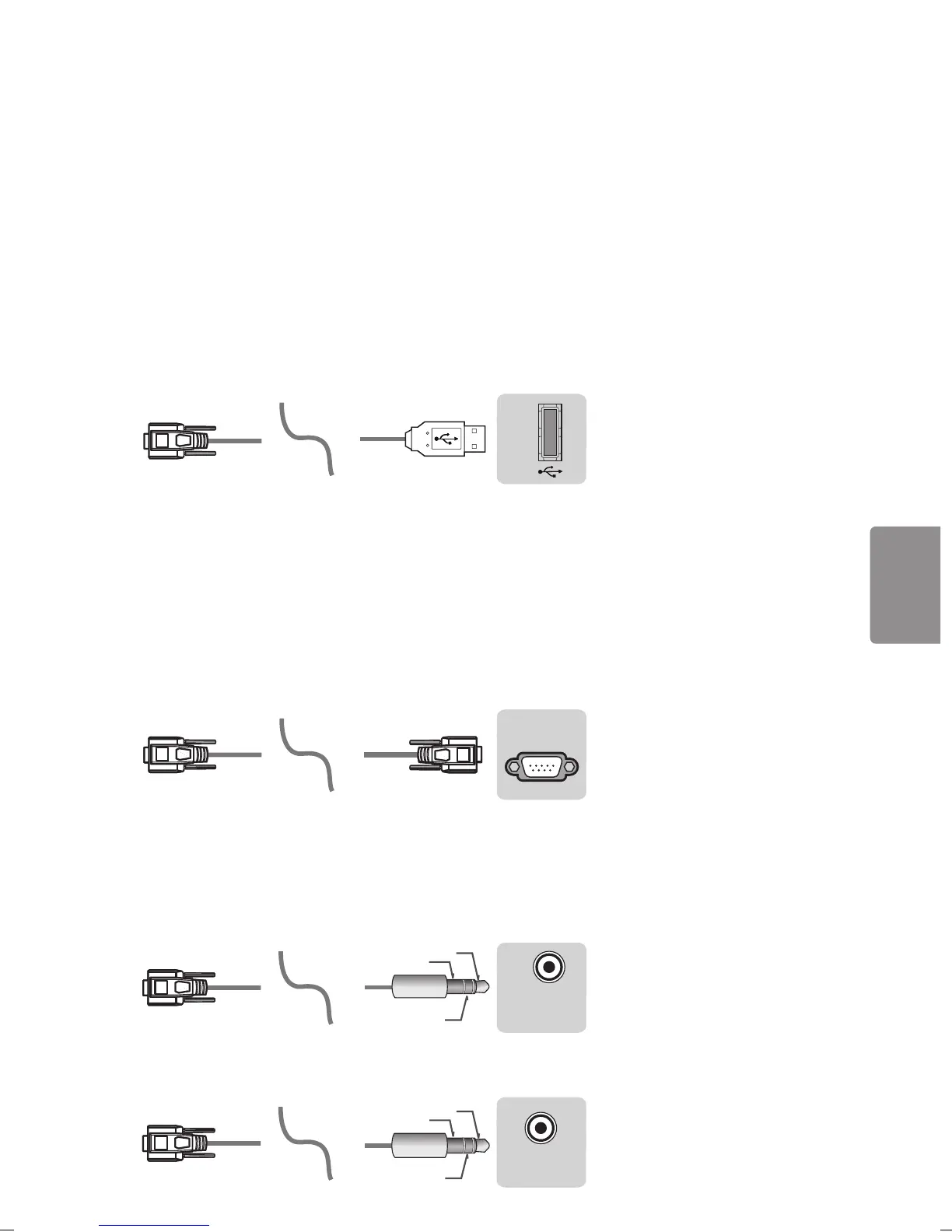

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an
A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
• Please be advised that not all models support this type of connectivity.
• Cable is not provided.
USB to Serial Converter with USB Cable
USB Type
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which is
not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C With RS232C Cable
DE9 (D-Sub 9-pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9-pin female-to-female type) to RS-232C cable required for
the connection between the PC and the TV, which is specified in the manual.
• The connection interface may differ from your TV.
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and the
TV, which is specified in the manual.
• For other models, connect to the USB port.
• The connection interface may differ from your TV.
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC
)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2

LG 43LX570M Specifications

General

Panel life	- h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	43 \
Display brightness	- cd/m²
Display technology	LED
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1200:1
Display number of colors	-
USB version	2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Sound modes	Dynamic, Game, Music, News, Sports, Standard
RMS rated power	10 W
Impedance	8 Ω
Weight (without stand)	9979.03214 g
AC input voltage	110 - 127 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	42 W
Product design	Digital signage flat panel
Panel mounting interface	200 x 200 mm
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	574.04 mm
Width	972.82 mm
Height	55.88 mm
