MAKING CONNECTIONS

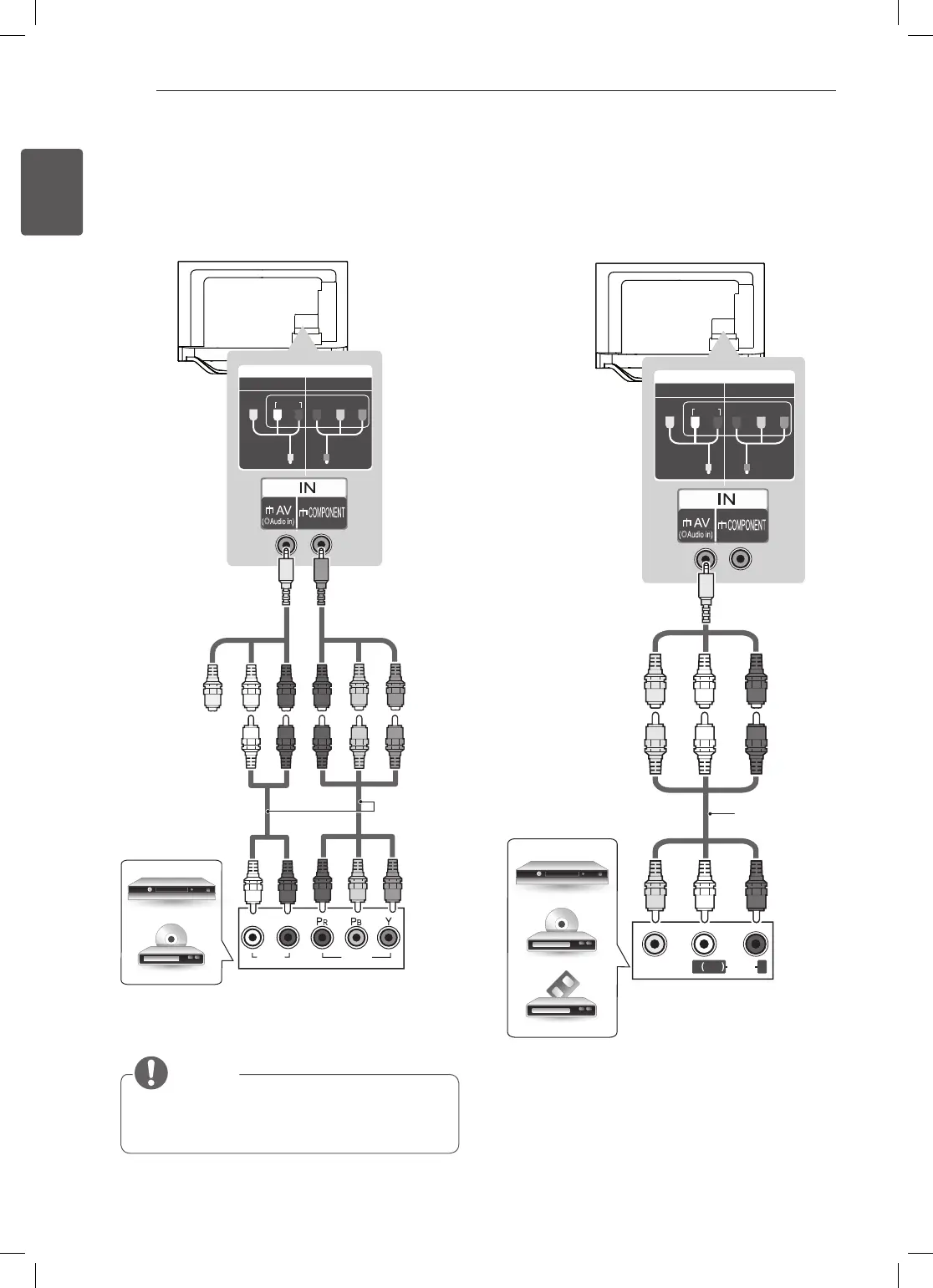

Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with a component gender cable as shown.
VIDEO
AUDIO
LR
IN
COMPONENT
YPB AUDIO
AV
PR VIDEO
NOTE

If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
RED
BLUE
GREEN
RED WHITE
DVD / Blu-Ray /
HD Cable Box
RED
RED
BLUE
BLUE
GREEN GREEN
RED RED WHITE WHITE
YELLOW
(Use the composite
video cable provided.)
(*Not Provided)
GREENYELLOW
(Use the component
video cable provided.)
Composite connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with the composite gender cable as shown.
VIDEO
MONO
( )
AUDIO
LR
COMPONENT
PB
Y
IN
COMPONENT
YP B AUDIO
AV
P R VIDEO
VCR / DVD / Blu-Ray /
HD Cable Box
RED
RED
RED
WHITE
WHITE
WHITE
YELLOW
YELLOW
YELLOW
(Use the composite video
cable provided.)
(*Not Provided)
YELLOW
