LG 47LM620T User Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
SC_L_IN
C4602
4700pF
EU
Q4601
MMBT3904(NXP)
EU
E
B
C
C4604
0.1uF
EU
JK4600
DA1R018H91E
EU
1
AUDIO_R_OUT
2
AUDIO_R_IN
3
AUDIO_L_OUT
4
AUDIO_GND
5
B_GND
6
AUDIO_L_IN
7
B_OUT
8
ID
9
G_GND
10
G_OUT
11
R_GND
12
R_OUT
13
RGB_IO
14
SYNC_GND
15
SYNC_OUT
16
SYNC_IN
17
COM_GND
18
AV_DET
19
SHIELD
SC_G
+12V
R4602
390
EU
C4603
4700pF
EU
R4603
390
EU
SC_DET
DTV/MNT_L_OUT
SC_ID
DTV/MNT_V_OUT
R4604
180
EU
SC_B
SC_R_IN
+3.3V_NORMAL
R4607
15K
EU
SC_CVBS_IN
Q4600
MMBT3906(NXP)
EU
E
B
C
C4600
1000pF
50V
EU
R4605
470
EU
C4601
1000pF
50V
EU
L4600
BLM18PG121SN1D
EU
L4601
BLM18PG121SN1D
EU
R460075
EU
DTV/MNT_R_OUT
SC_FB
SC_R
R4606
47K
EU
C4606
0.1uF
50V
EU
R4601
10K
EU
R4608
0
OPT
D4611
5.6V
OPT
D4607
5.6V
OPT
D4606
5.6V
OPT
D4605
5.6V
OPT
D4608
5.6V
OPT
D4601
5.6V
OPT
D4601-*1
5.6V
ESD_MTK_SCART
200pF
D4605-*2
5.6V
ESD_LG1152_SCART
200pF
D4606-*2
5.6V
ESD_LG1152_SCART
200pF
D4601-*2
5.6V
ESD_LG1152_SCART
200pF
D4611-*2
5.6V
ESD_LG1152_SCART
200pF
D4600
20V
OPT
D4600-*2
20V
ESD_LG1152_SCART
10pF
C4605
100uF
16V
EU
C4607
47uF
25V
EU
D4611-*1
5.6V
ESD_MTK_SCART
200pF
D4609
5.5V
OPT
D4610
5.5V
OPT
D4603
5.5V
OPT
D4602
5.5V
OPT
D4604
5.5V
OPT
D4609-*1
5.5V
ESD_MTK_SCART
15pF
D4609-*2
5.5V
ESD_LG1152_SCART
15pF
D4610-*1
5.5V
ESD_MTK_SCART
15pF
D4602-*1
5.5V
ESD_MTK_SCART
15pF
D4603-*1
5.5V
ESD_MTK_SCART
15pF
D4604-*1
5.5V
ESD_MTK_SCART
15pF
D4600-*1
20V
ESD_MTK_SCART
10pF
D4605-*1
5.6V
ESD_MTK_SCART
200pF
D4606-*1
5.6V
ESD_MTK_SCART
200pF

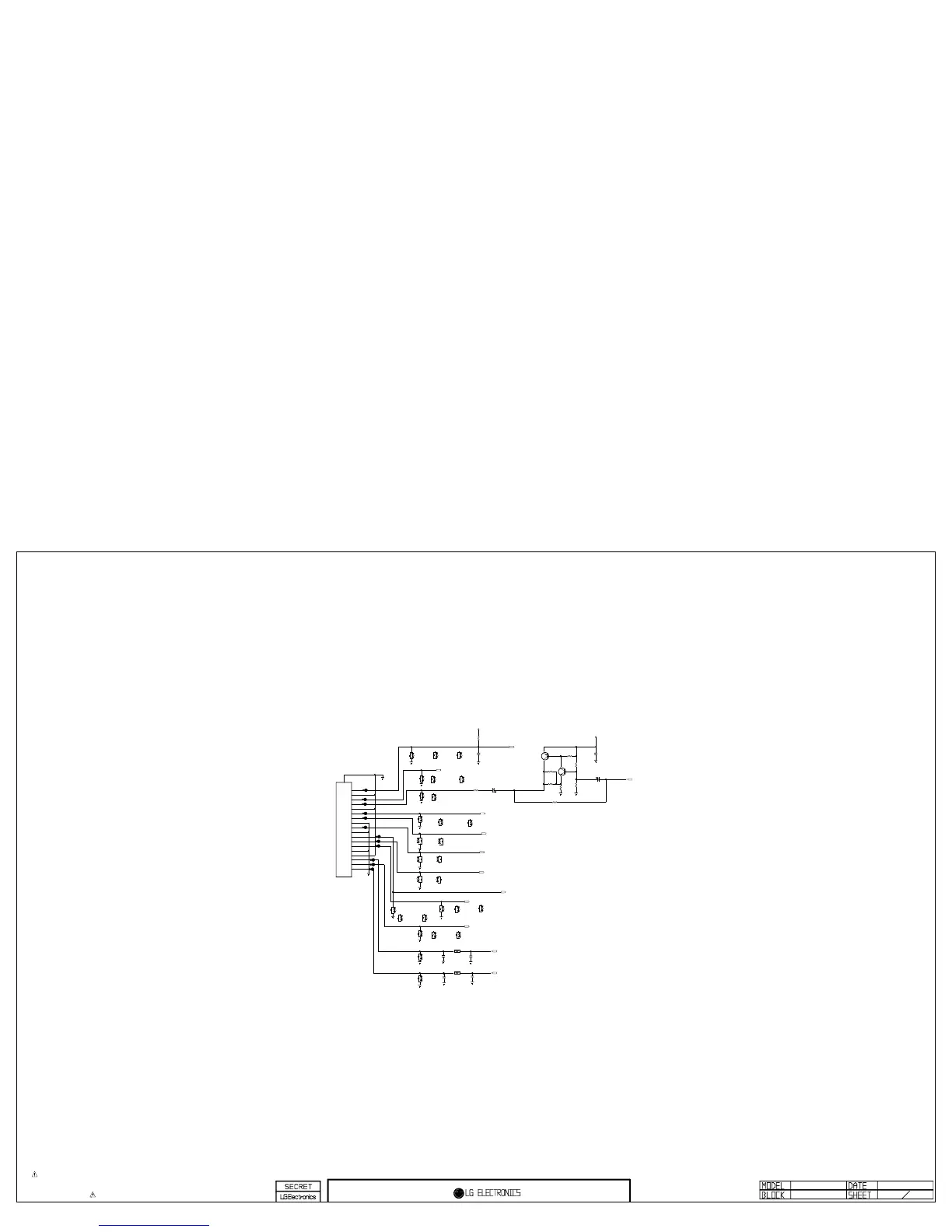

46
SCART GENDER
2011.10.26
Full Scart(18 Pin Gender)
Gain=1+Rf/Rg
CLOSE TO JUNCTION
Rf
Rg
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG 47LM620T Specifications

General

Display diagonal	47 \
LED backlighting type	-
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Motion interpolation technology	MCI (Motion Clarity Index) 400
3D	Yes
3D glasses quantity	4
Product color	Black
Panel mounting interface	400 x 400 mm
Audio system	Infinite Surround
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI version	1.4
DVI-D ports quantity	0
USB 2.0 ports quantity	3
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Anynet+
Audio formats supported	AAC, AC3, MP3, PCM
Image formats supported	JPG
Video formats supported	DIVX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	63 W

Weight and Dimensions

Depth (with stand)	263 mm
Height (with stand)	722 mm
Weight (with stand)	17800 g
Depth (without stand)	35.5 mm
Width (without stand)	1089 mm
Height (without stand)	655 mm
Weight (without stand)	15600 g
