LG 47LM620T User Manual

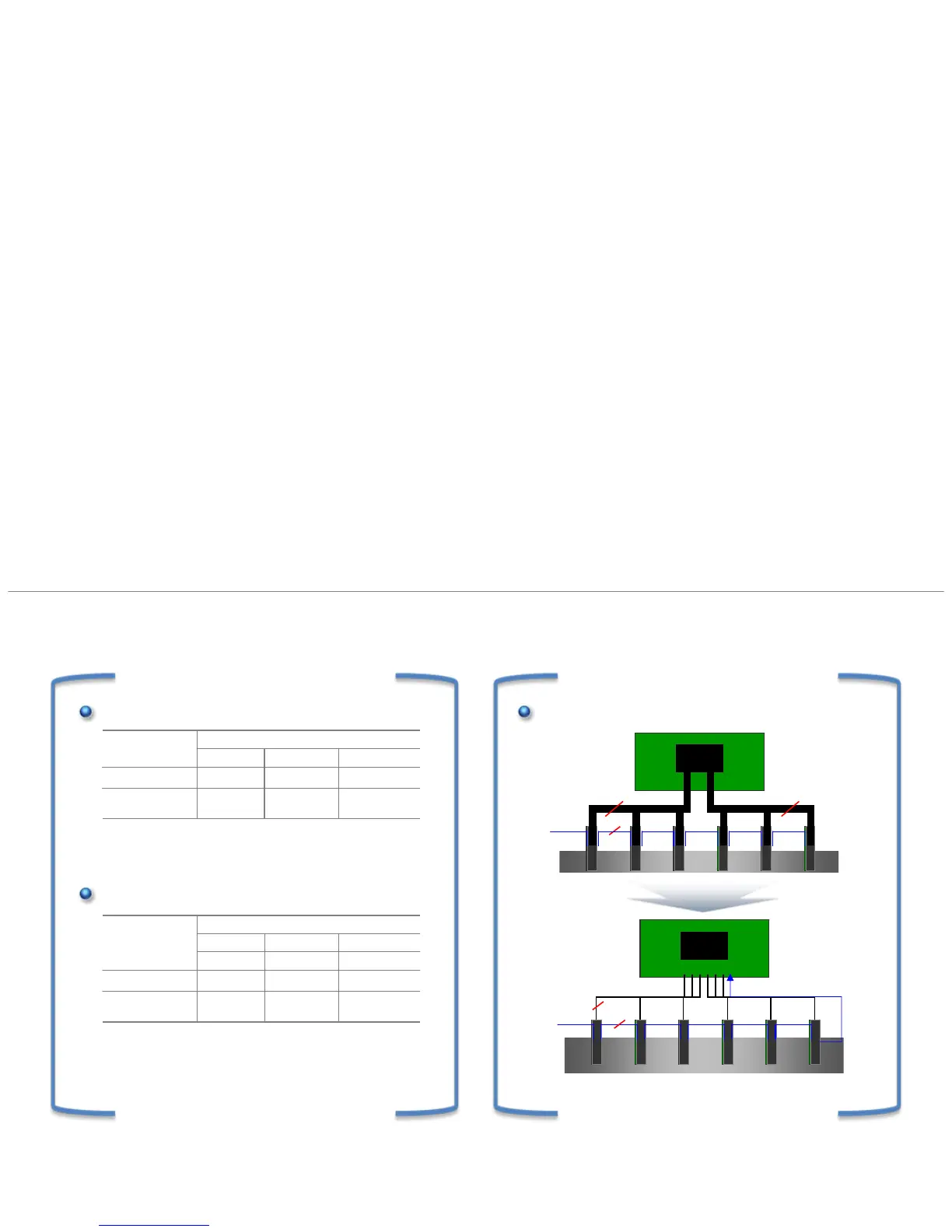

EPI Interface (mini-LVDS vs. EPI)
Comparison
HF mini-LVDS
What to change
EPI (Embedded clock P-to-P Interface)
-Difficult to upgrade bandwidth limit
-Multiple number of wires needed for higher bandwidth
HF mini-
LVDS
FHD (10bit)
60Hz 120Hz 240Hz
No. of Signal 36 36 72
Connector
60pin
(2ea)
60pin
(2ea)
80pin
(2ea)
-Better reliability on common noise
-No data skew. Better EMI margin
-Lower cost ( Cable, Connector )
-Slim S-PCB design (14mm Æ 10mm) helps slimmer TV
EPI
FHD (10bit)
60Hz 120Hz 240Hz
960ch 960ch 720ch
No. of Signal 12 12 32
Connector -
50 pin
(2ea)
70pin
(2ea)
LCM (T-con to S-Driver IC)
TCON
2
LOCK
VCC
1
TCON
18
VCC
1
18
HF mini-LVDS
EPI
* Bandwidth Capability
- FHD 120Hz 10Bit : 594Mbps@36Lines → 1.65Gbps@12Lines
- FHD 240Hz 10Bit : 594Mbps@72Lines → 1.25Gbps@32Lines
(FHD 120Hz)
(FHD 120Hz)
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG 47LM620T Specifications

General

Display diagonal	47 \
LED backlighting type	-
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Motion interpolation technology	MCI (Motion Clarity Index) 400
3D	Yes
3D glasses quantity	4
Product color	Black
Panel mounting interface	400 x 400 mm
Audio system	Infinite Surround
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI version	1.4
DVI-D ports quantity	0
USB 2.0 ports quantity	3
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Anynet+
Audio formats supported	AAC, AC3, MP3, PCM
Image formats supported	JPG
Video formats supported	DIVX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	63 W

Weight and Dimensions

Depth (with stand)	263 mm
Height (with stand)	722 mm
Weight (with stand)	17800 g
Depth (without stand)	35.5 mm
Width (without stand)	1089 mm
Height (without stand)	655 mm
Weight (without stand)	15600 g
