LG 47LM620T User Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
SIGN600005
SCART_Rout
SCART_MUTE
SCART_Lout
DTV/MNT_R_OUT
R6012 4.7K
OPT
+12V
C6005
33pF
EU
R6010
470K
OPT
R6008 33K
EU
+3.5V_ST
C6004
0.1uF
50V
EU
R60002.2K
EU
L6000
EU
R6002
470K
OPT
Q6000
MMBT3904(NXP)
EU
E
B
C
R6011
2.2K
EU
DTV/MNT_R_OUT
C6003
33pF
EU
DTV/MNT_L_OUT
Q6001
MMBT3904(NXP)
EU
E
B
C
DTV/MNT_L_OUT
R600433K
EU
C6002
6800pF
OPT
C6007
6800pF
OPT
C6008
1uF
25V
EU
C6000
1uF
25V
EU
IC6000
AZ4580MTR-E1
EU
3
IN1+
2
IN1-
4
VEE
1
OUT1
5
IN2+
6
IN2-
7
OUT2
8
VCC
SCART_AMP_R_FB
SCART_AMP_L_FB
R6013
510
EU

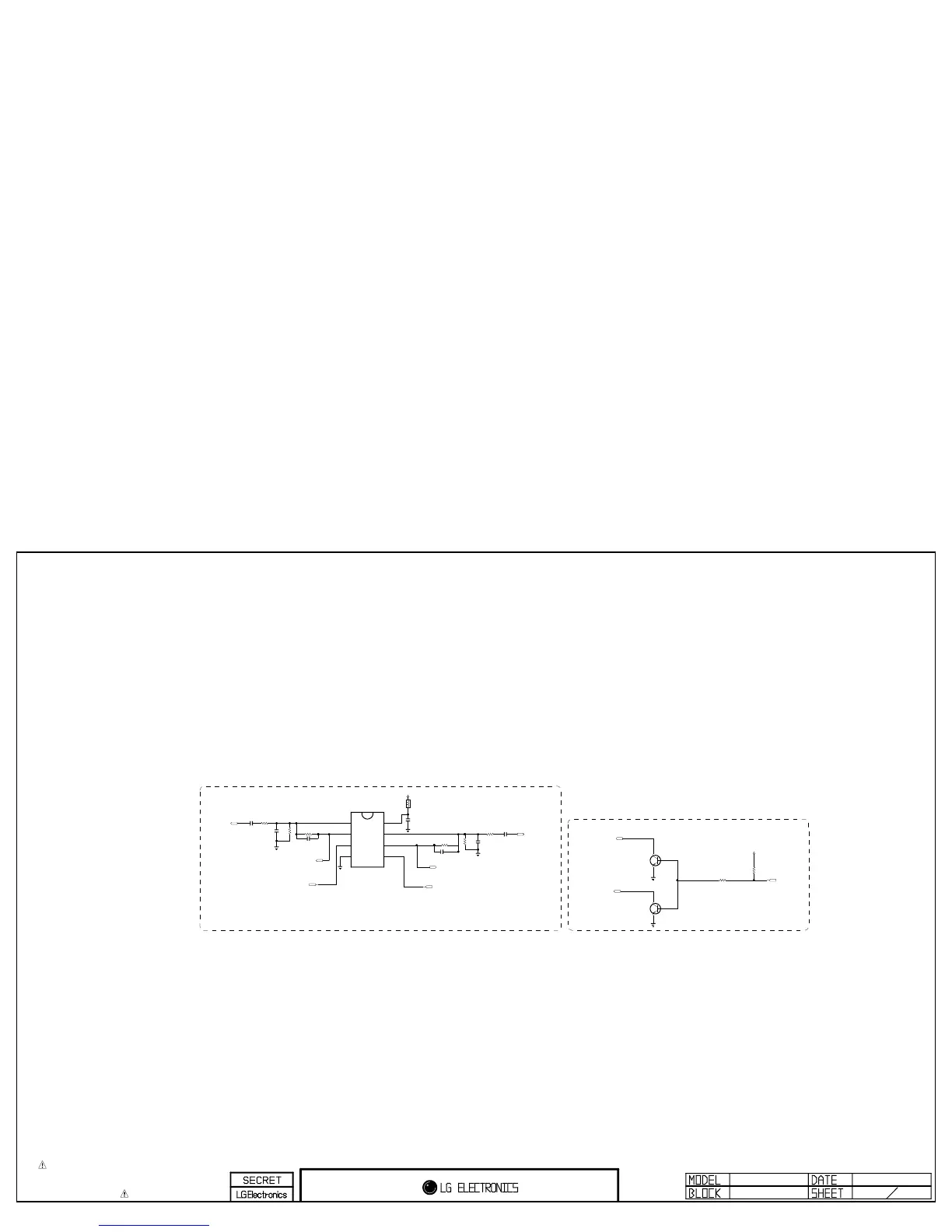

[SCART AUDIO MUTE]
AUD_OUT >> EU/CHINA_HOTEL_OPT
60
SCART AUDIO AMP
2011.11.21
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG 47LM620T Specifications

General

Display diagonal	47 \
LED backlighting type	-
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Motion interpolation technology	MCI (Motion Clarity Index) 400
3D	Yes
3D glasses quantity	4
Product color	Black
Panel mounting interface	400 x 400 mm
Audio system	Infinite Surround
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI version	1.4
DVI-D ports quantity	0
USB 2.0 ports quantity	3
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Anynet+
Audio formats supported	AAC, AC3, MP3, PCM
Image formats supported	JPG
Video formats supported	DIVX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	63 W

Weight and Dimensions

Depth (with stand)	263 mm
Height (with stand)	722 mm
Weight (with stand)	17800 g
Depth (without stand)	35.5 mm
Width (without stand)	1089 mm
Height (without stand)	655 mm
Weight (without stand)	15600 g
