LG 47LM640T User Manual

EPI Interface
EPI(Embedded Point-Point Interface)
Features
• Point-Point topology (support 2 Pair option)
• CDR (Clock Data Recovery)
• Bandwidth up to 1.85Gbps/pair
at FHD 120Hz 10 bit application
• Lock signal cascading and feedback to T-Con
• Embedded Control Data
Merits
• Better reliability on common noise
• No data skew and better EMI margin
• Fewer lines than mini-LVDS
• Slim PCB design
TCON
2
LOCK
VCC
1

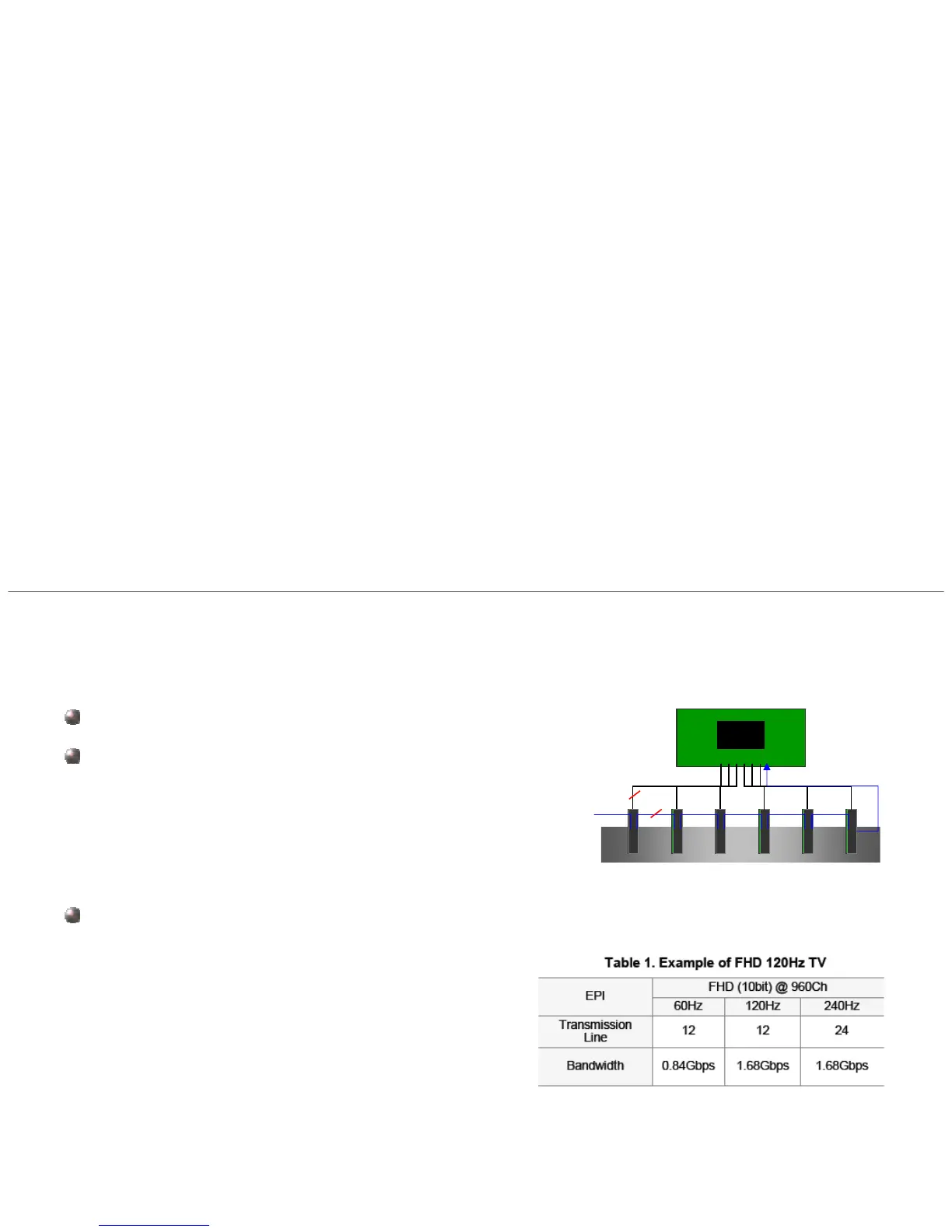

Figure1. Topology
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG 47LM640T Specifications

General

3D	Yes
Annual energy consumption	93 kWh
Supported 3D technologies	LG Cinema 3D
Display diagonal	47 \
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Motion interpolation technology	MCI (Motion Clarity Index) 400
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL
Digital signal format system	DVB-C, DVB-T2
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI version	1.4
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
Lifestyle apps	Skype
Audio formats supported	AC3, MP3, PCM
Image formats supported	JPG
Video formats supported	DIVX, MPEG2, MPEG4
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	64 W
Package weight	20900 g

Weight and Dimensions

Depth (with stand)	263 mm
Height (with stand)	705 mm
Weight (with stand)	16900 g
Depth (without stand)	35.2 mm
Width (without stand)	1073 mm
Height (without stand)	639 mm
Weight (without stand)	14700 g
