EXTERNAL EQUIPMENT SETUP

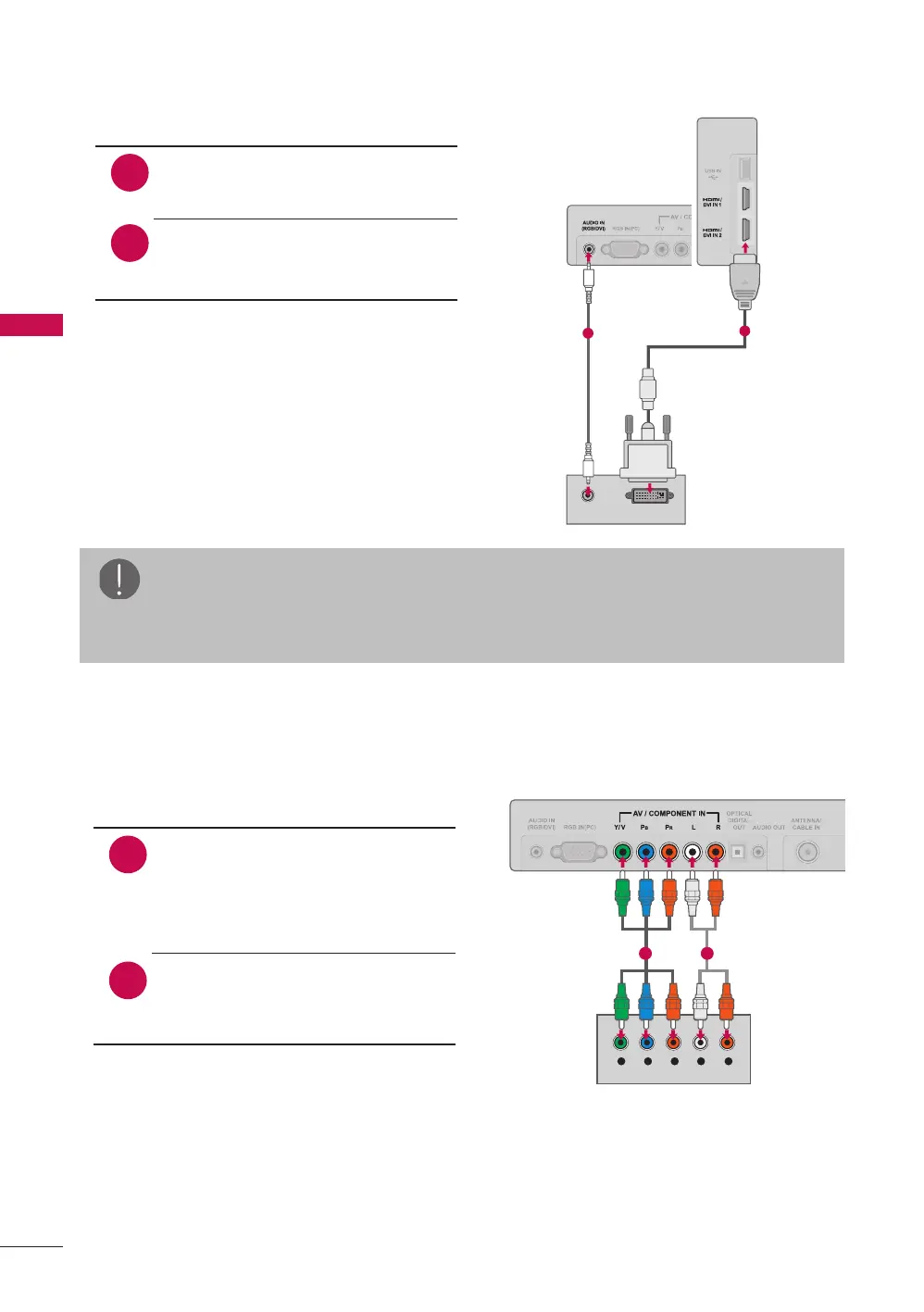

DVI to HDMI Connection
1. How to connect
1
2
Connect the digital set-top box
to HDMI/DVI IN 1 or 2 jack on
the TV.
Connect the digital set-top box
audio output to the DVI AUDIO
jack on the TV.
2. How to use
r Turn on the digital set-top box.
(Refer to the owner’s manual for the digital
set-top box operation.)
r Select the HDMI 1 or HDMI 2 input source on
the TV using the INPUT button on the remote
control.
NOTE
a A DVI to HDMI cable or adapter is required for this connection.
DVI doesn’t support audio, so a separate audio connection is necessary.
DVD Setup
Component Connection
1. How to connect
1
2
Connect the video outputs (Y, PB,
P
R) of the digital set-top box to
the COMPONENT IN VIDEO jack
on the TV. Match the jack colors
(Y = green, P
B = blue, and PR =
red).
Connect the audio output of
the digital set-top box to the
COMPONENT IN AUDIO jack on
the TV.
2. How to use
r Turn on the DVD player, insert a DVD.
r Select the Component input source on the TV using the INPUT button on the remote
control.
r Refer to the DVD player’s manual for operating instructions.
