LG 48842 - Page 36

35

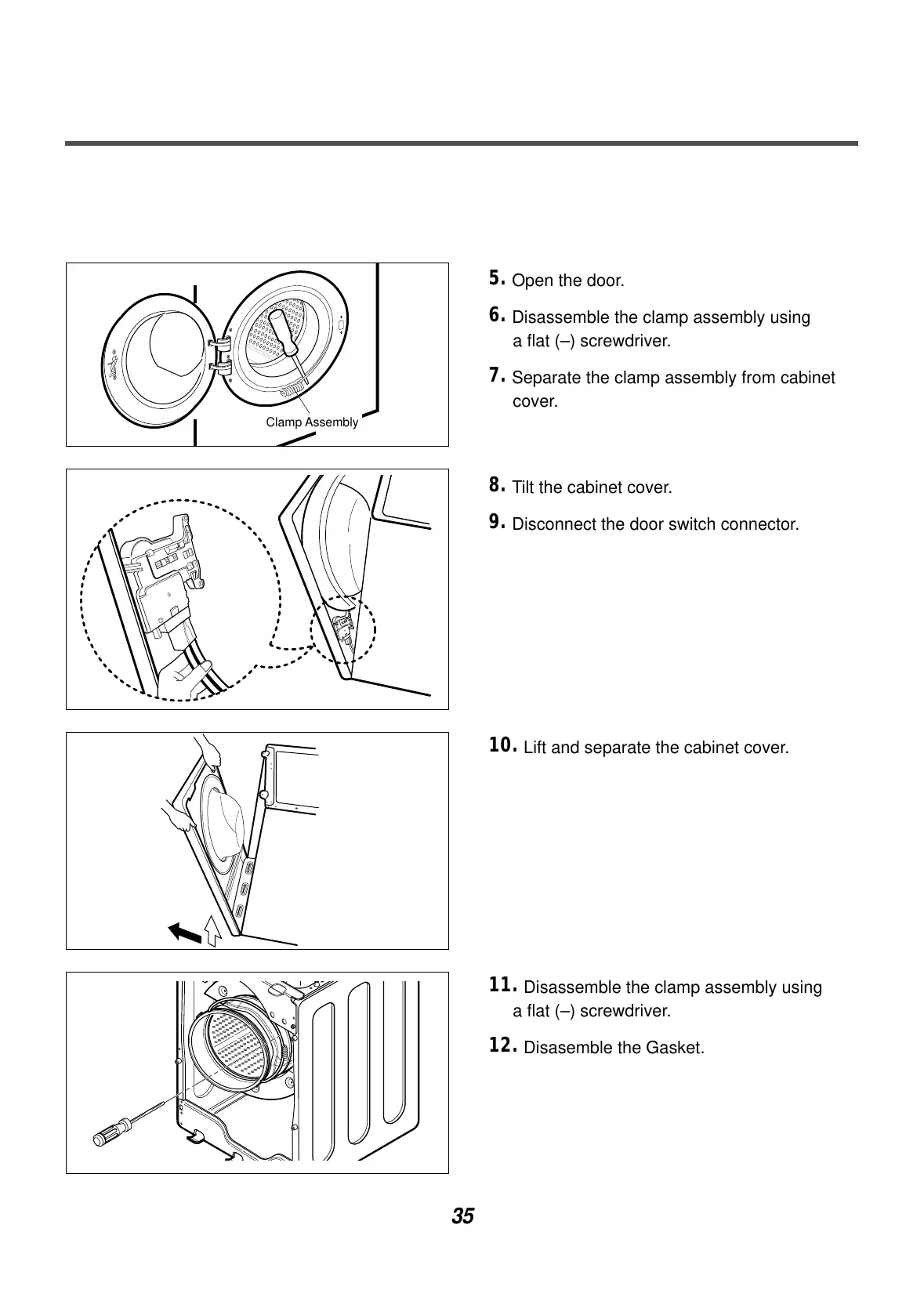

Clamp Assembly
5.
Open the door.
6.
Disassemble the clamp assembly using
a flat (–) screwdriver.
7.
Separate the clamp assembly from cabinet
cover.
8.
Tilt the cabinet cover.
9.
Disconnect the door switch connector.
10.
Lift and separate the cabinet cover.
11.
Disassemble the clamp assembly using
a flat (–) screwdriver.
12.
Disasemble the Gasket.
