LG 49LX560H Service Manual

- 18 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
900
910
200
400
800
540
810
521
530
820
700
121
350
120
LV1
A2
A10
Set + Stand

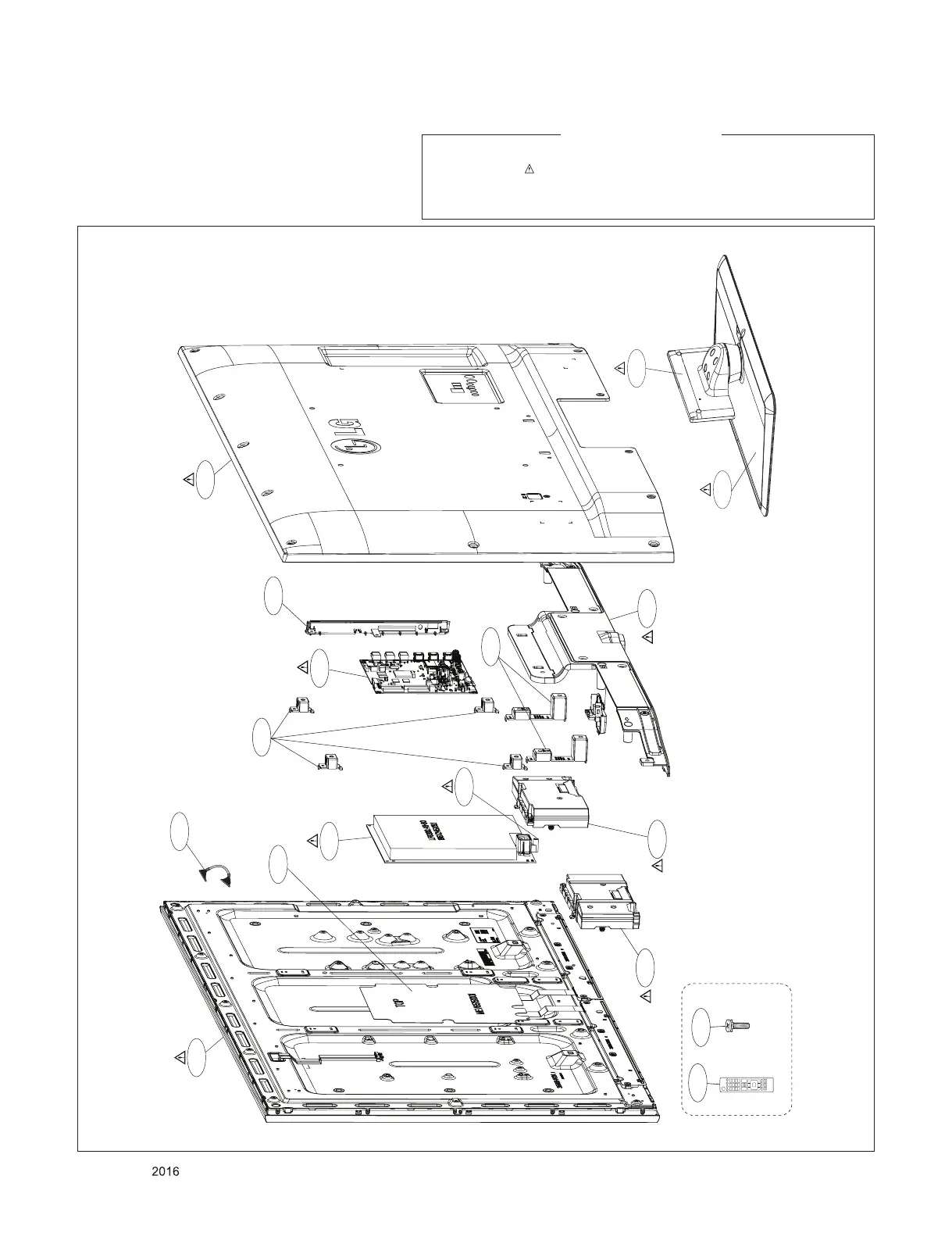

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

LG 49LX560H Specifications

General

Brand	LG
Model	49LX560H
Category	LED TV
Language	English
