LG 50PC1D - Exploded View Parts List

- 29 -

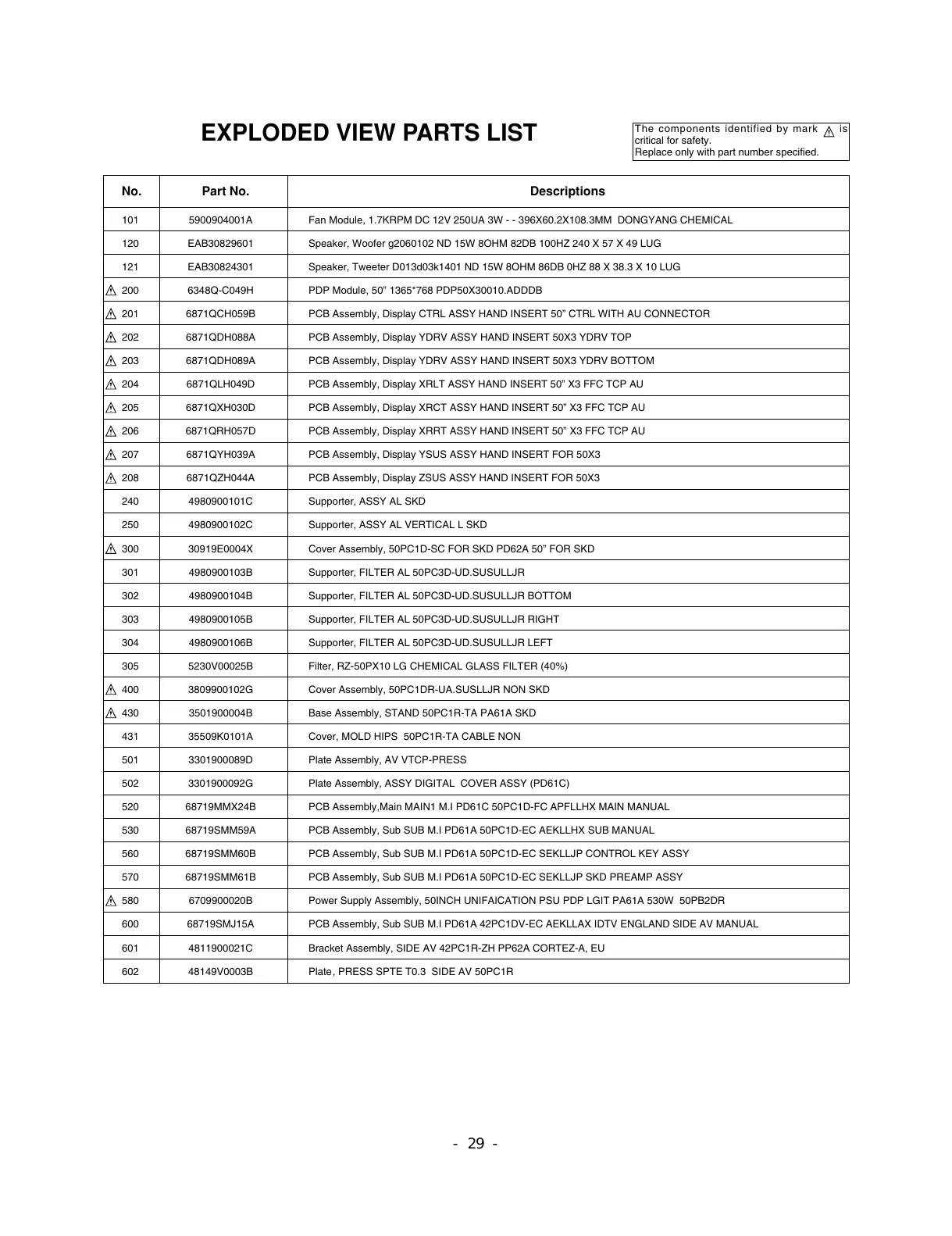

EXPLODED VIEW PARTS LIST
101 5900904001A Fan Module, 1.7KRPM DC 12V 250UA 3W - - 396X60.2X108.3MM DONGYANG CHEMICAL
120 EAB30829601 Speaker, Woofer g2060102 ND 15W 8OHM 82DB 100HZ 240 X 57 X 49 LUG
121 EAB30824301 Speaker, Tweeter D013d03k1401 ND 15W 8OHM 86DB 0HZ 88 X 38.3 X 10 LUG
200 6348Q-C049H PDP Module, 50” 1365*768 PDP50X30010.ADDDB
201 6871QCH059B PCB Assembly, Display CTRL ASSY HAND INSERT 50” CTRL WITH AU CONNECTOR
202 6871QDH088A PCB Assembly, Display YDRV ASSY HAND INSERT 50X3 YDRV TOP
203 6871QDH089A PCB Assembly, Display YDRV ASSY HAND INSERT 50X3 YDRV BOTTOM
204 6871QLH049D PCB Assembly, Display XRLT ASSY HAND INSERT 50” X3 FFC TCP AU
205 6871QXH030D PCB Assembly, Display XRCT ASSY HAND INSERT 50” X3 FFC TCP AU
206 6871QRH057D PCB Assembly, Display XRRT ASSY HAND INSERT 50” X3 FFC TCP AU
207 6871QYH039A PCB Assembly, Display YSUS ASSY HAND INSERT FOR 50X3
208 6871QZH044A PCB Assembly, Display ZSUS ASSY HAND INSERT FOR 50X3
240 4980900101C Supporter, ASSY AL SKD
250 4980900102C Supporter, ASSY AL VERTICAL L SKD
300 30919E0004X Cover Assembly, 50PC1D-SC FOR SKD PD62A 50” FOR SKD
301 4980900103B Supporter, FILTER AL 50PC3D-UD.SUSULLJR
302 4980900104B Supporter, FILTER AL 50PC3D-UD.SUSULLJR BOTTOM
303 4980900105B Supporter, FILTER AL 50PC3D-UD.SUSULLJR RIGHT
304 4980900106B Supporter, FILTER AL 50PC3D-UD.SUSULLJR LEFT
305 5230V00025B Filter, RZ-50PX10 LG CHEMICAL GLASS FILTER (40%)
400 3809900102G Cover Assembly, 50PC1DR-UA.SUSLLJR NON SKD
430 3501900004B Base Assembly, STAND 50PC1R-TA PA61A SKD
431 35509K0101A Cover, MOLD HIPS 50PC1R-TA CABLE NON
501 3301900089D Plate Assembly, AV VTCP-PRESS
502 3301900092G Plate Assembly, ASSY DIGITAL COVER ASSY (PD61C)
520 68719MMX24B PCB Assembly,Main MAIN1 M.I PD61C 50PC1D-FC APFLLHX MAIN MANUAL
530 68719SMM59A PCB Assembly, Sub SUB M.I PD61A 50PC1D-EC AEKLLHX SUB MANUAL
560 68719SMM60B PCB Assembly, Sub SUB M.I PD61A 50PC1D-EC SEKLLJP CONTROL KEY ASSY
570 68719SMM61B PCB Assembly, Sub SUB M.I PD61A 50PC1D-EC SEKLLJP SKD PREAMP ASSY
580 6709900020B Power Supply Assembly, 50INCH UNIFAICATION PSU PDP LGIT PA61A 530W 50PB2DR
600 68719SMJ15A PCB Assembly, Sub SUB M.I PD61A 42PC1DV-EC AEKLLAX IDTV ENGLAND SIDE AV MANUAL
601 4811900021C Bracket Assembly, SIDE AV 42PC1R-ZH PP62A CORTEZ-A, EU
602 48149V0003B Plate, PRESS SPTE T0.3 SIDE AV 50PC1R
No. Part No. Descriptions
The components identified by mark is
critical for safety.
Replace only with part number specified.
