88
APPENDIX
APPENDIX

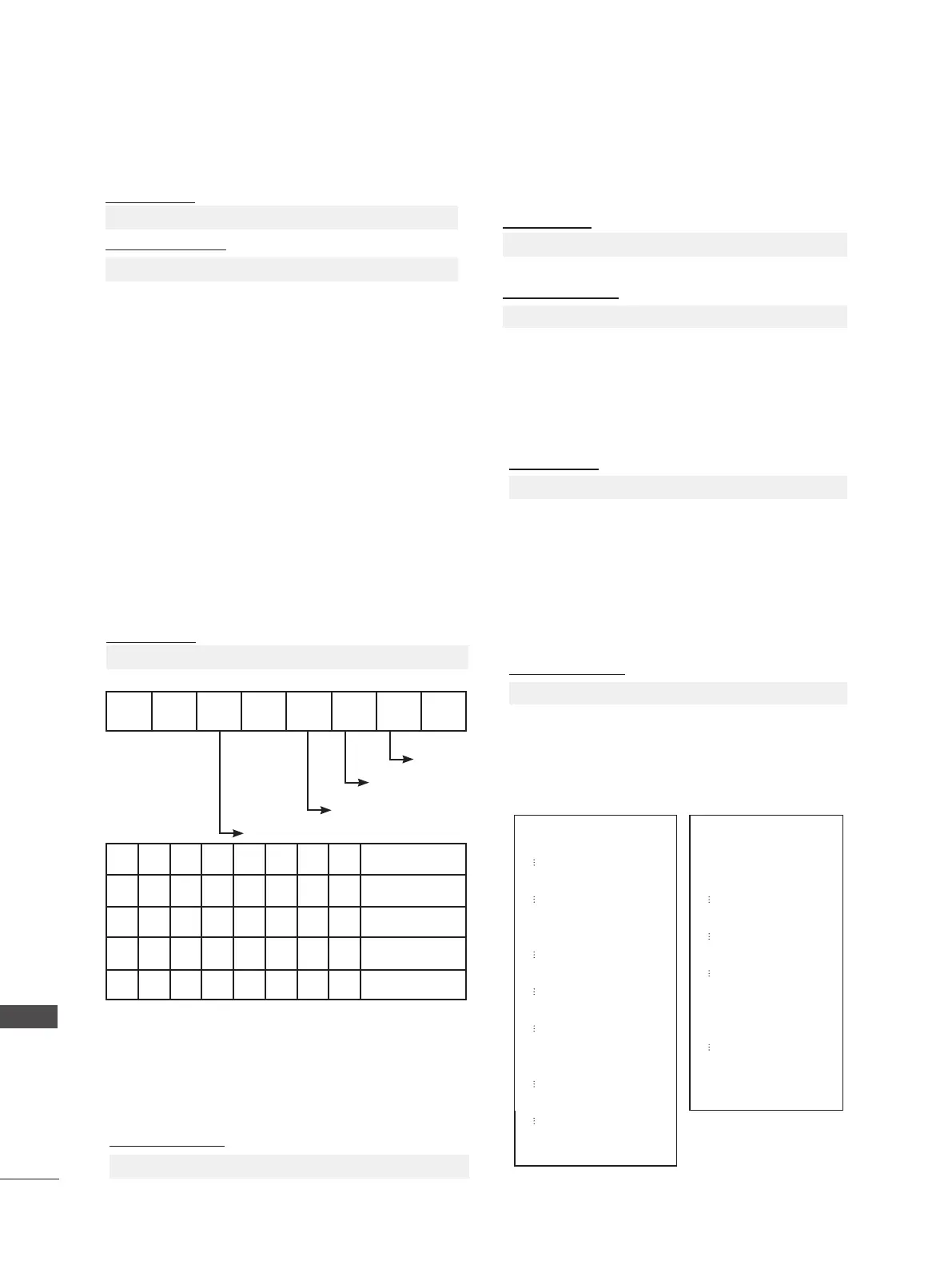

17. Abnormal State (Command: k z)
► To recognize an abnormal state.
Transmission
Data FF: Read
Data 00: Normal (Power on and signal exist)
Data 01: No signal (Power on)
Data 02: Turn the TV off by remote control
Data 03: Turn the TV off by sleep time function
Data 04: Turn the TV off by RS-232C function
Data 05: 5V down
Data 06: AC down
Data 08: Turn the TV off by Off time function
Data 09: Turn the TV off by Auto off function
* This function is “read only”.
[k][z][ ][Set ID][ ][Data][Cr]
Acknowledgemnt
[z][ ][Set ID][ ][OK/NG][Data][x]
18. ISM Method (Command: j p)
► To avoid hava fixed image remain on screen.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Acknowledgemnt
[p][ ][Set ID][ ][OK/NG][Data][x]
19 . Auto Configure (Command: j u)
20. Energy Saving (Command: j q)
► To adjust picture position and minimize image shaking
automatically. It works only in RGB (PC) mode.
Transmission
► To reduce the power consumption of the TV.
Transmission
Data 01: To set
Data 00: Low Power Off
Data 01: Low Power Minimum
Data 02: Low Power Medium
Data 03: Low Power Maximum
Data 05: Screen Off
Data 10: Intelligent Sensor
[j][u][ ][Set ID][ ][Data][Cr]
[j][q][ ][Set ID][ ][Data][Cr]
Acknowledgemnt
Acknowledgemnt
Data 02: Orbiter
Data 04: White Wash
Data 08: Normal
Data 20: Colour Wash
* More two kinds of function can not be set at a time.
[u][ ][Set ID][ ][OK/NG][Data][x]
[q][ ][Set ID][ ][OK/NG][Data][x]
*
Real data mapping 1
00 : Step 0
A : Step 10
F : Step 15
10 : Step 16
64 : Step 100
6E : Step 110
73 : Step 115
74 : Step 116
C7 : Step 199
FE : Step 254
FF : Step 255
*
Real data mapping 2
00 : -30
01 : -29
02 : -28
1E : 0
28 : +0
3A : +28
3B : +29
3C : +30
4E : N/A
4F : N/A
50 : N/A
MSB LSB
0 0 0 0 0 0 0 0
7 6 5 4 3 2 1 0
Function
0 0 1 0
Orbiter
0 1 0 0
White Wash
1 0 0 0
Normal
1 0 0 0 0 0
Colour Wash
Otbiter
White Wash
Normal
Colour Wash
To Next Page
