14
ENGLISH

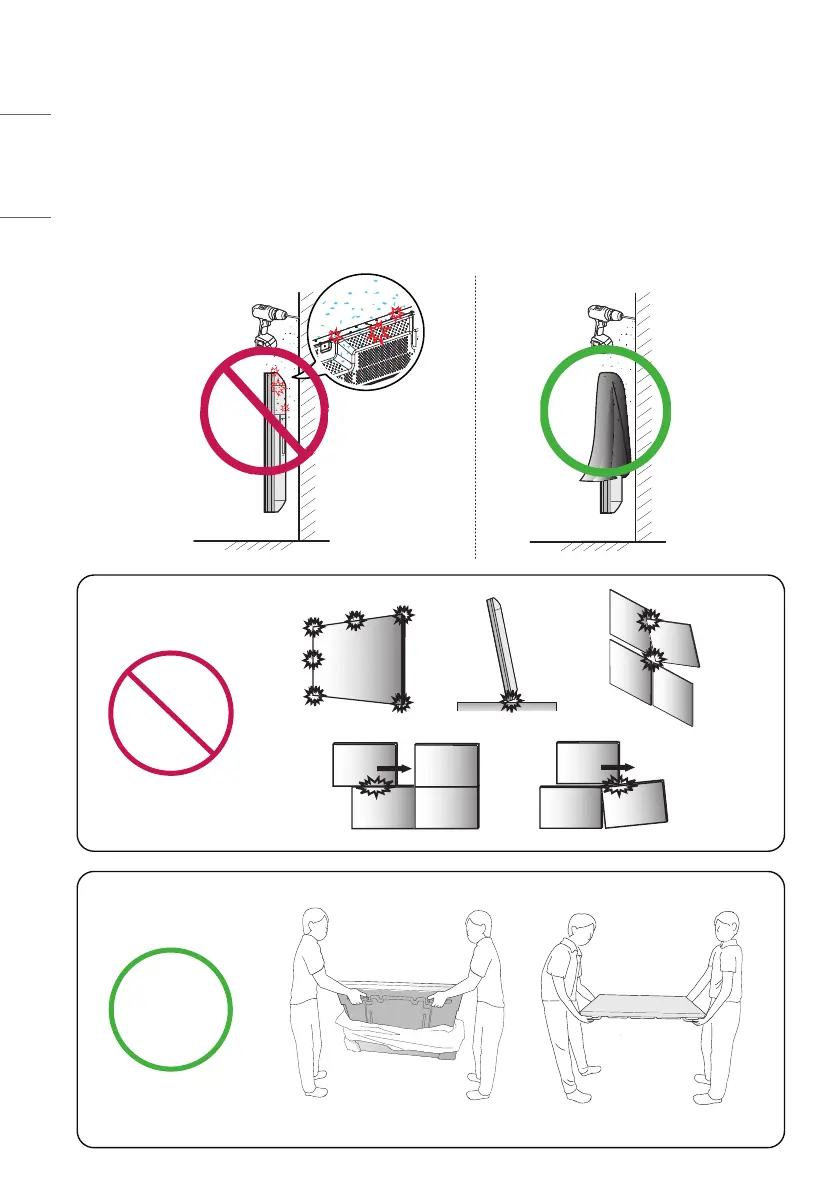

Safety and Prec
aution Guide for Installation
During installation, ensure any c
onductive materials (metals, etc.) do no
t enter through the gaps or vent holes between
the panel and the back co
ver
.
-
Cover
ing the back of the product with a cloth ma
y prevent for
eign substances fr
om entering the product and c
ausing
malfunction.
-
Make sur
e to remov
e the cloth after the install
ation is complete.
