ENGLISH
9
ASSEMBLING AND PREPARING
CAUTION
y
Do not use any unapproved items to ensure the safety and product life span.
y
Any damages or injuries by using unapproved items are not covered by the warranty.
y
Some models appear to have a thin film on the screen. It is actually part of the screen, do not remove it.
NOTE
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to upgrade of product
functions.
y
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches)
thick and 18 mm (0.7 inches) width. Use an extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not fit into your TV's USB port.
B
A
A
B
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
y

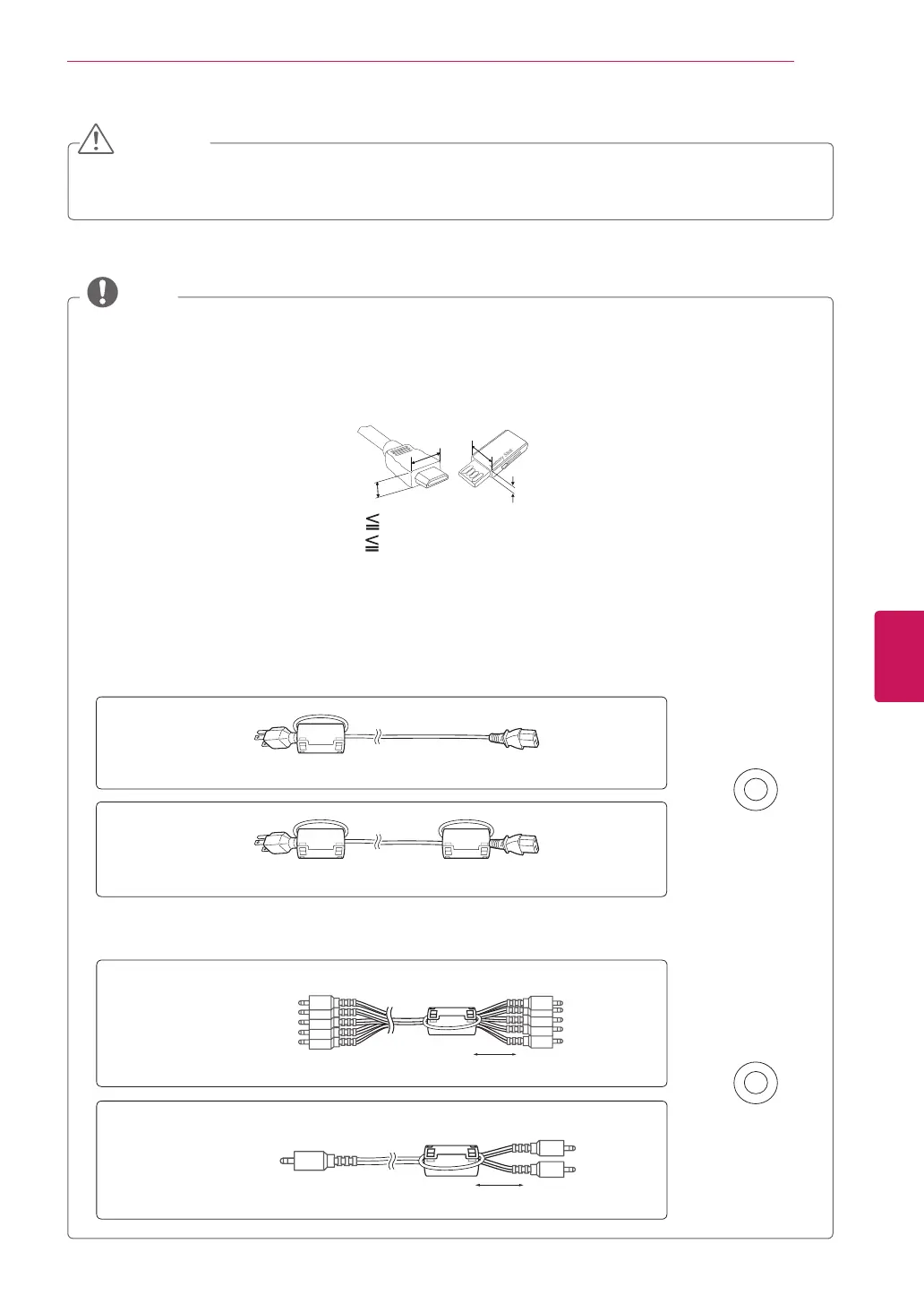

How to use the ferrite core
- If there are two ferrite cores, follow as shown in Figures 1-1 & 2-1 (or 2-2).
- If there are three ferrite cores, follow as shown in Figures 1-2 & 2-1 (or 2-2).
1 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall
plug.
[Figure 1-1]
[to the TV]
[to a wall plug]
[Figure 1-2]
[to the TV]
[to a wall plug]
2 Use the ferrite core to reduce the electromagnetic interference in the cable.
Place the ferrite core close to the TV.
[Figure 2-2]
[to the TV]
[to the TV]
[to an External device]
[to an External device]
[Figure 2-1]
10 mm(+ / - 5 mm)
10 mm(+ / - 5 mm)
Wind the component cable on the ferrite core once.
Wind the PC audio cable on the ferrite core once.
(Black)
[Cross Section of
Ferrite Core]
(Black)
[Cross Section of
Ferrite Core]
To Next Page
