LG A4UH306FA0 - A2 UH186 FA0; A2 UC186 FA0

Service Manual 23

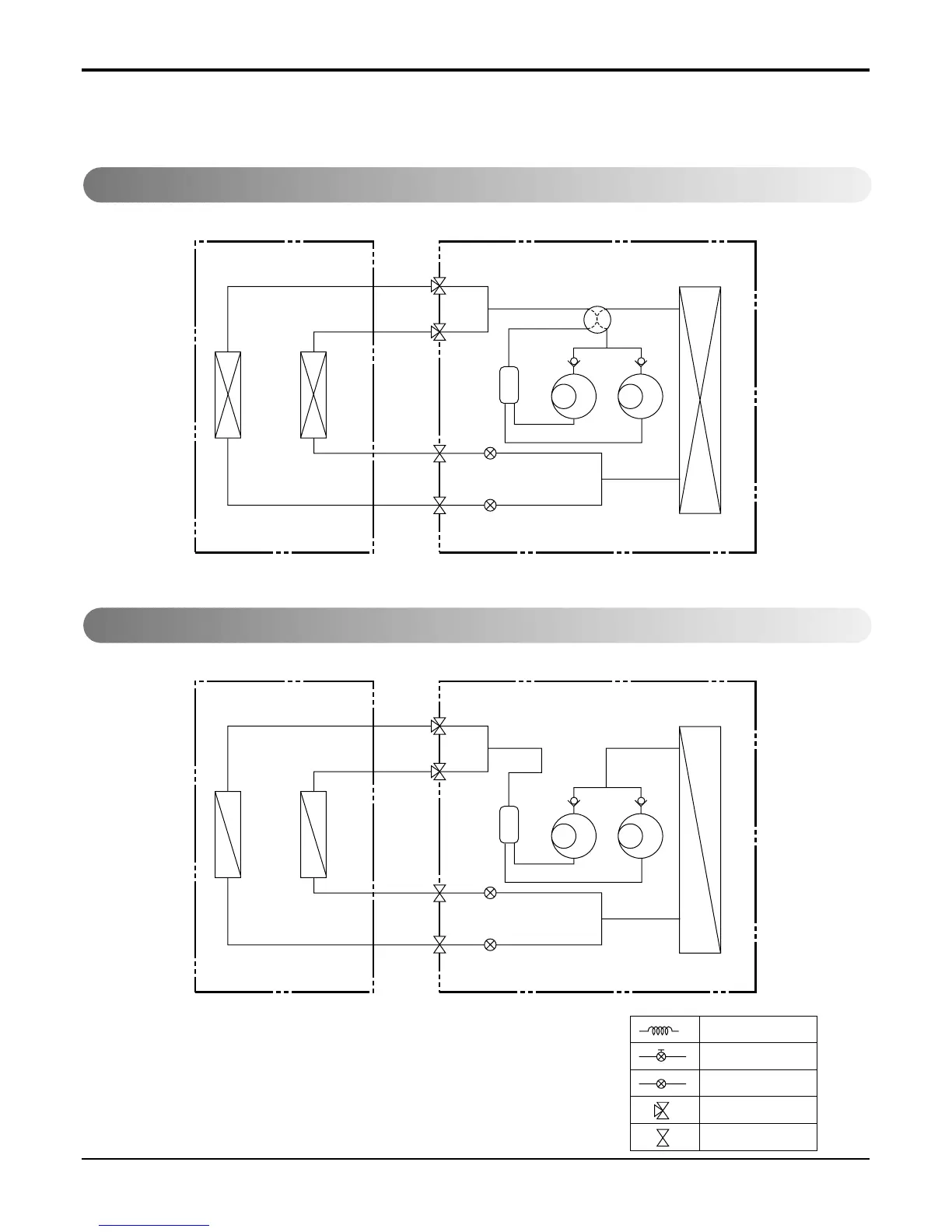

Refrigeration Cycle Diagram
3. A2UH186FA0
4. A2UC186FA0
Indoor Side Outdoor Side
A
B
4- WAYValve
COMP B
COMP A
Indoor Side Outdoor Side
A
B
COMP B
COMP A
ex)
Solenoid Valve
L.E.V
3-Way Valve
2-Way Valve
Capillary
Accum.Accum.
