LG A4UH306FA0 - A3 UH216 FA0; A3 UC216 FA0

24 Free Joint Multi Air Conditioner

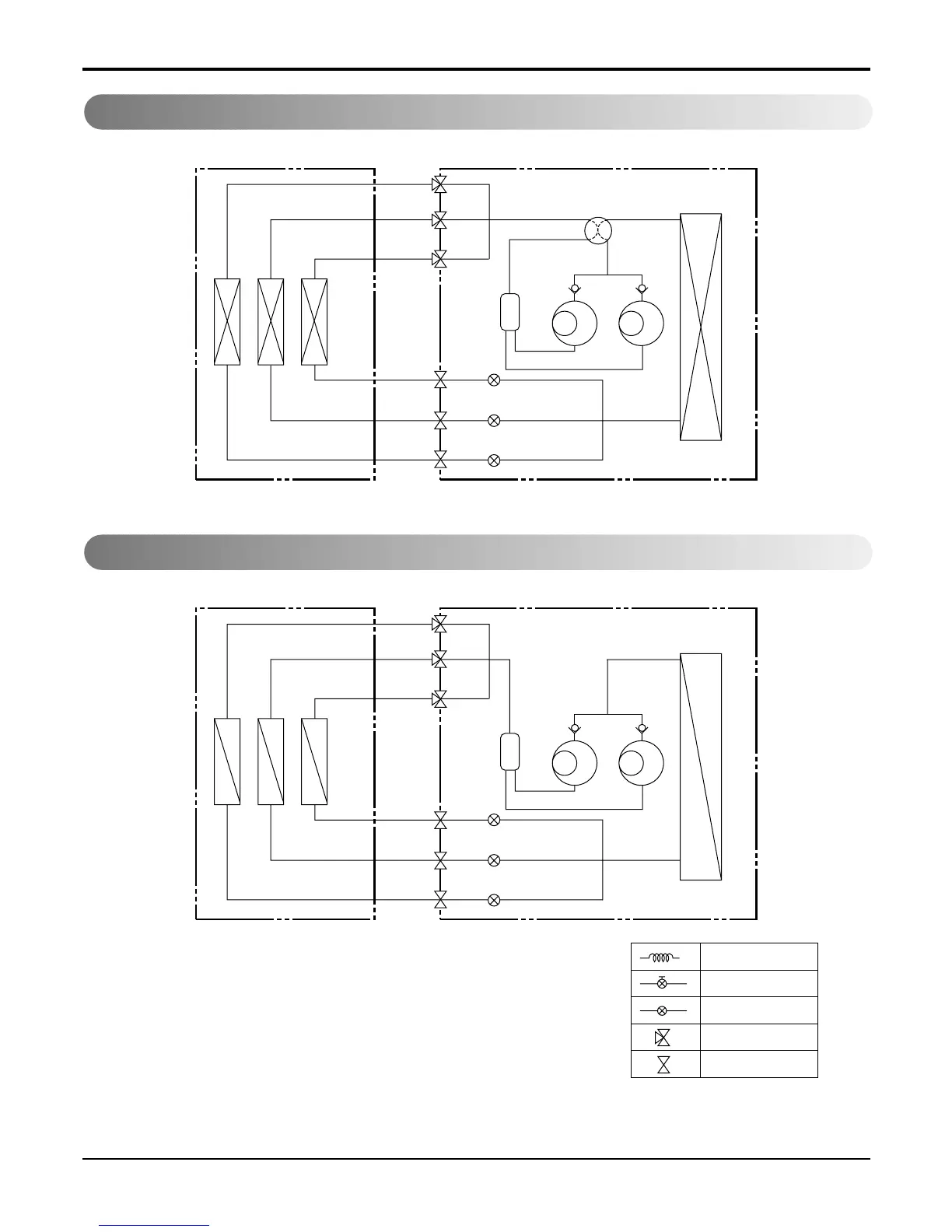

Refrigeration Cycle Diagram
5. A3UH216FA0
6. A3UC216FA0
Indoor Side Outdoor Side
B
A
4- WAY Valve
COMP B
COMP A
Accum.
C
Indoor Side Outdoor Side
B
A
COMP B
COMP A
Accum.
C
ex)
Solenoid Valve
L.E.V
3-Way Valve
2-Way Valve
Capillary
