PREPARATION

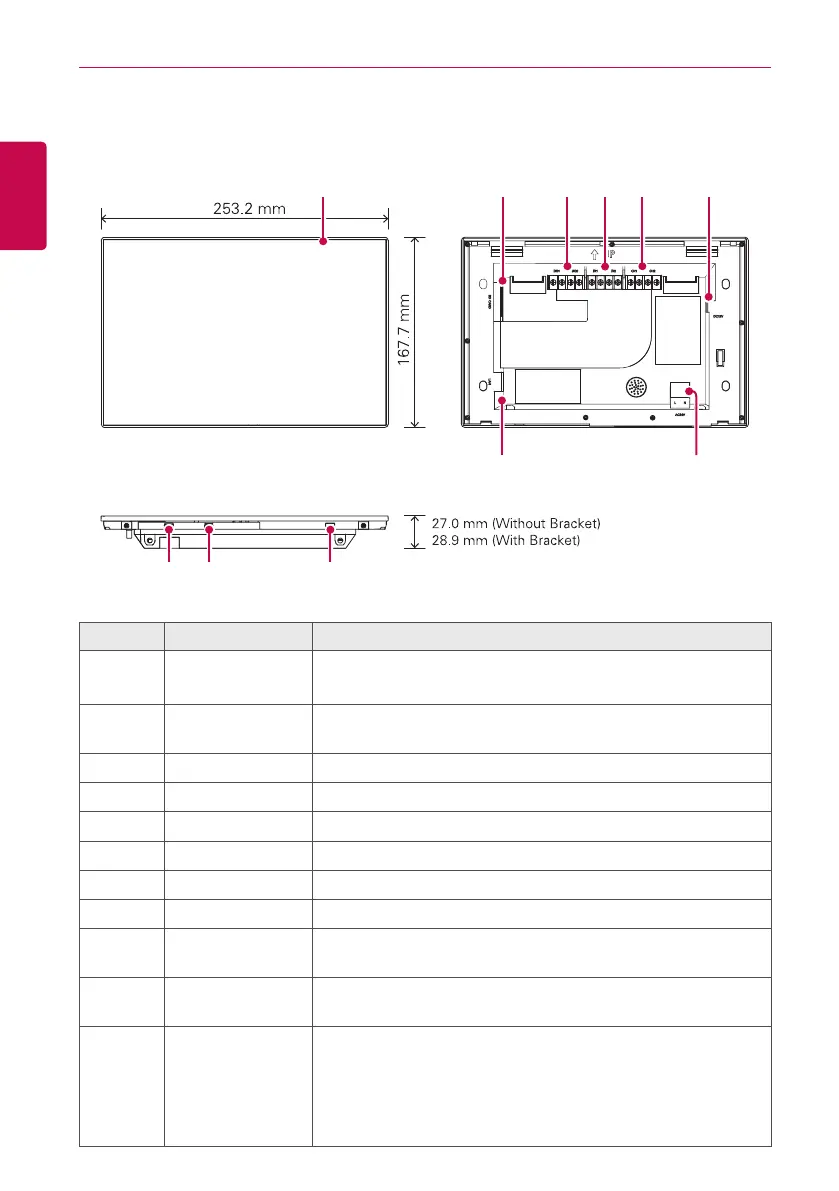

Features and Functions
The features and functions of AC Smart IV are as follows.
⑦ ⑧
⑪⑩⑨
① ③② ⑥④ ⑤
<Front>
<Bottom>
<Back>
Number Item Description
①
Touch Screen
y 10.2 inch LCD control panel
y AC Smart IV control and information display
②
SD Memory Slot
(for service)
SD card memory slot for software upgrade
③
DO Port 2CH DO port
④
DI Port 2CH DI port
⑤
485 Port 2CH 485 port (CH1: AHU, CH2: devices other than AHU)
⑥
DC 12 V Input Port DC 12 V power input port
⑦
LAN Port LAN cable port for Ethernet connection (100Mbps/10Mbps)
⑧
24 V~ Input Port 24 V~ power input port
⑨
Micro USB Port
USB 2.0 to connect USB memory sticks storing floor plans,
reports, statistics, etc.
⑩
Mini USB Port
(for service)
PC port for software upgrade
⑪
Power ON/OFF
y Push less than 10 seconds to control AC Smart IV LCD backlight.
y Push 10 seconds or more to reset AC Smart IV.
y If you are not going to use AC Smart IV for a long time, it is
recommended that the product be turned off to prolong the
LCD backlight's life.

LG AC Smart IV Specifications

General

Brand	LG
Model	AC Smart IV
Category	Controller
Language	English
