4) How to Set E.S.P?
Preheat
ZONE
Operation unit Program set
Room Temp
MED
LO
AUTO
JET
Heater
Defrost
Filter
Humidify
Out door
Set no. Time
01 03 05 07 09 11 13 15 17 19 21 23
OPERATION FAN SPEED SUB FUNCTION SET TEMP
HI
AUTO SWING
Time
Preheat
ZONE
Operation unit Program set
Room Temp
MED
LO
AUTO
JET
Heater
Defrost
Filter
Humidify
Out door
Set no. Time
01 03 05 07 09 11 13 15 17 19 21 23
OPERATION FAN SPEED SUB FUNCTION SET TEMP
HI
AUTO SWING
Time
Time
SUB FUNCTION SET TEMP OPERATIONAUTO SWING
Preheat
ZONE
Operation unit Program set
Room Temp
MED
LO
AUTO
JET
Heater
Defrost
Filter
Humidify
Out door
Set no. Time
01 03 05 07 09 11 13 15 17 19 21 23
FAN SPEED
HI
Time
SUB FUNCTION SET TEMP OPERATIONAUTO SWING
Preheat
ZONE
Operation unit Program set
Room T
MED
LO
AUTO
JET
Heater
Defrost
Filter
Humidify
Out door
Set no. Time
emp
01 03 05 07 09 11 13 15 17 19 21 23
FAN SPEED
HI
2
Timer
1
2
3
5
4
Timer

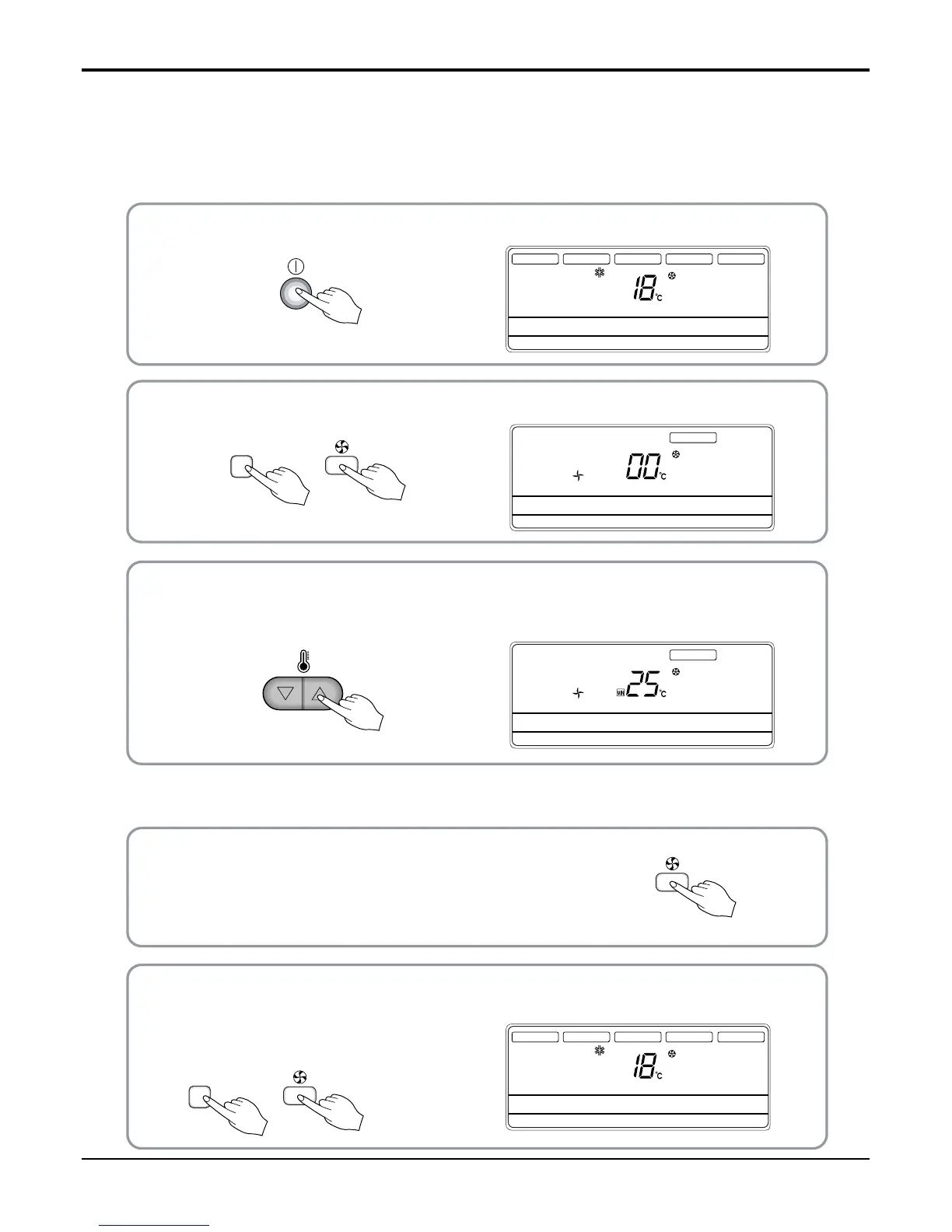

Push the"On/Off"button.
The unit will start.
Push the "Timer" and "Wind" button simultaneously for more then 3 seconds.
Push the "Up" of "Down" button for E.S.P adjustment.
And, adjust the number which you want.(In this example, the number is "225". Refer to the
table 1 on the next page.)
Shift the fan speed mode by pressing the fan speed button.
And then, Adjust numbers of next steps by repeating the stage 3.
(In this example, the numbers are "237" and "243" respectly)
Push the "Timer" and "Wind" button simultaneously for more than 3 seconds.
Then, Wind Data is memorized by the EEPROM of the main PCB.
Note: The range of selection is from 1~254. Since, the display is two Digit only.
If the range selection is above 100 then the third digit will appear in the screen as shown.
Procedure of RPM change:
Ex) External Static pressure is 4mmAq for Model 36K.
• To protect the unit, compressor is designed to be off during E.S.P. setting.
Operation
