Service Manual 59

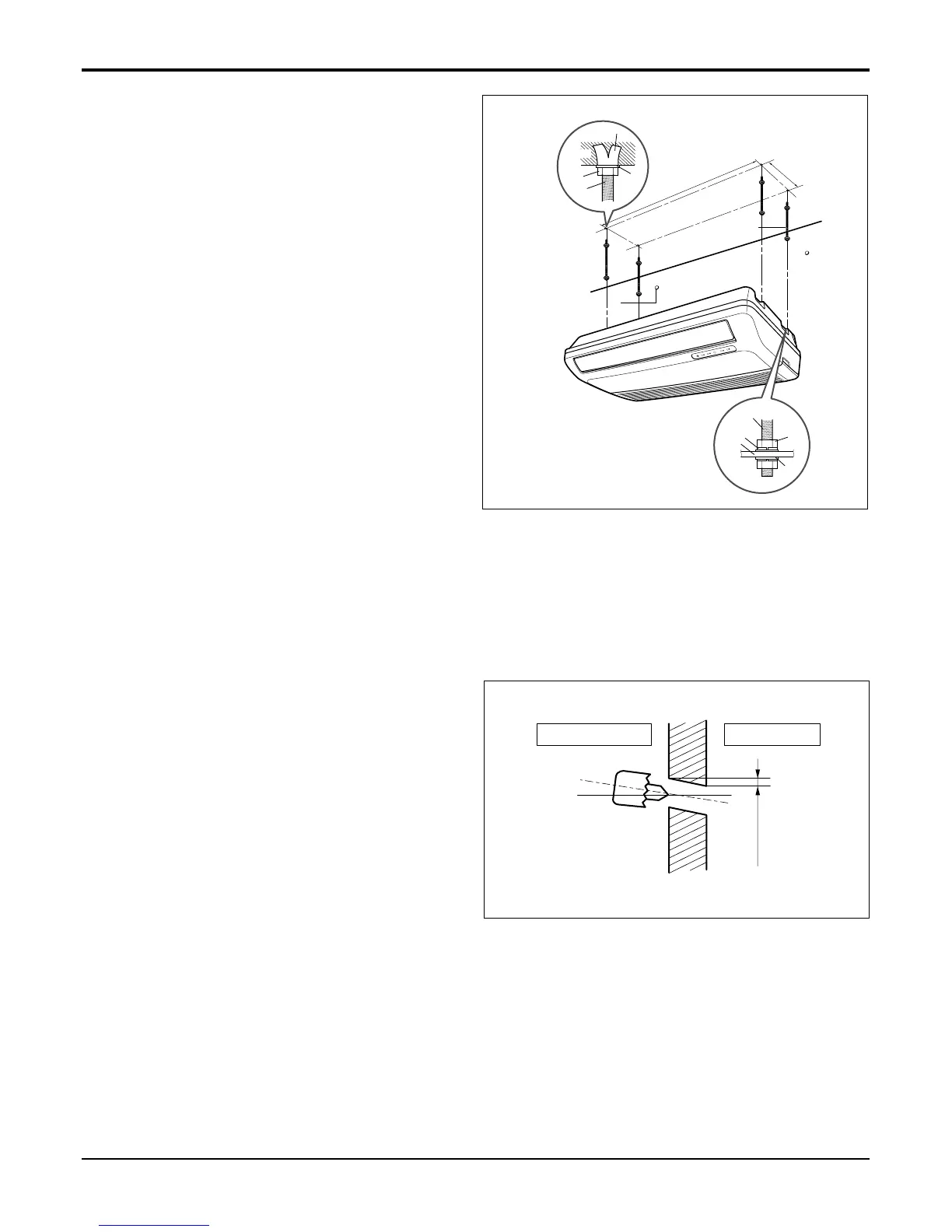

• Secure the Installation plates onto the Suspension
bolts (adjust level roughly.) using nuts, washers and
spring washers.
• Engage 2 hooks on the both left and right side of the
unittothelowerslotofInstallationPlates.
• Adjust a level with a level gauge on the direction of
left-right, back-forth by adjusting suspension bolts.
• Move the hooks on the unit to the upper slot of
Installation Plates. Then the unit will be declined to
the bottomside so as to drain well.
Installation
DrillaHoleintheWall
• Drill the piping hole with a ø70mm hole core drill.
Drill the piping hole at either the right or the left with
the hole slightly slanted to the outdoor side.
To Next Page
