LG AMNH12GD4L0 User Manual

156 Multi type Air Conditioner
Schematic Diagram

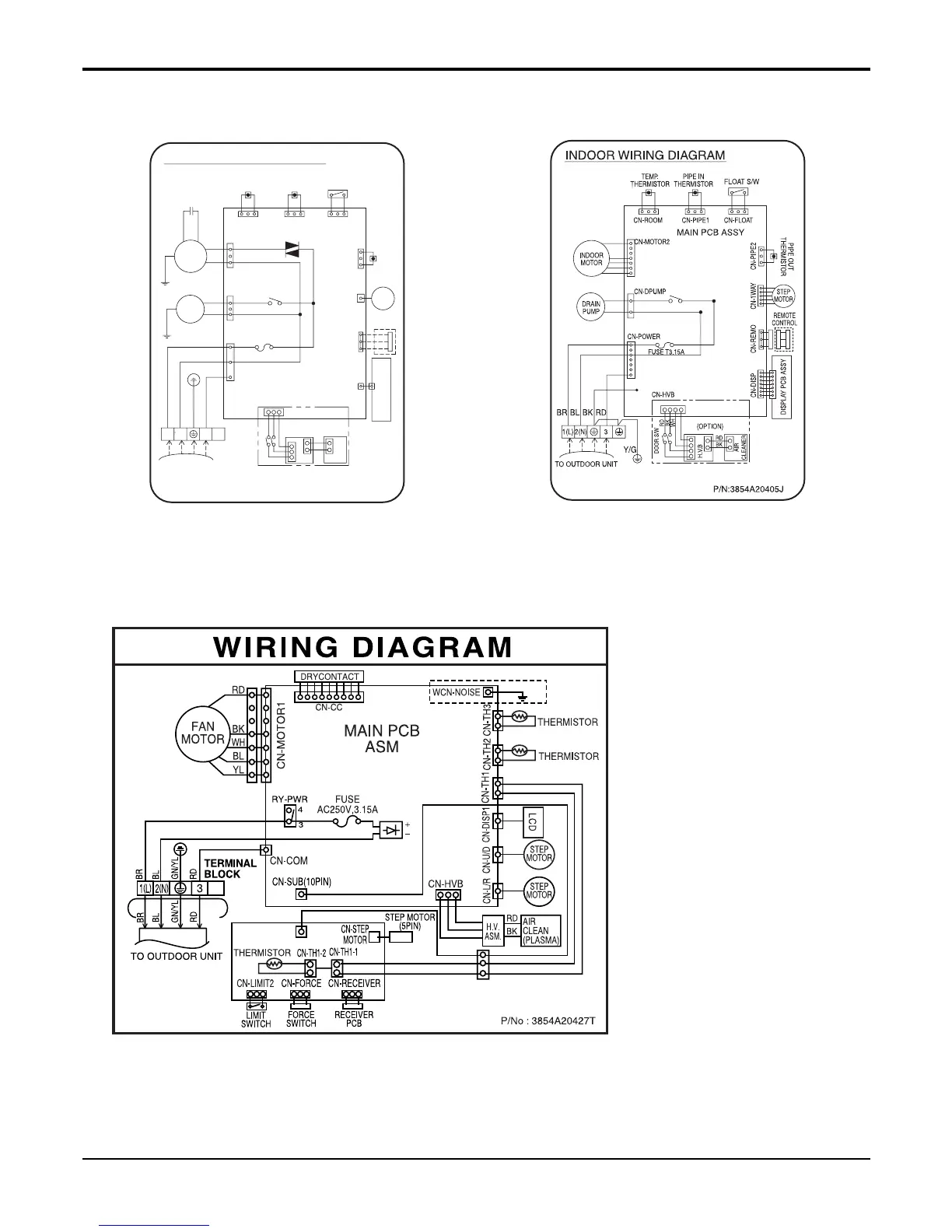

INDOOR WIRING DIAGRAM
MAIN PCB ASSY
CAPACITOR
BR
BK
OR
BR
TO OUTDOOR UNIT
P/N:3854A20405A
BL RD
1(L) 2(N) 3 4
GN/YLGN/YL
YL
TEMP.
THERMISTOR
CN-ROOM
CN-MOTOR
CN-DPUMP
CN-POWER
FUSE T3.15A
CN-PIPE1 CN-FLOAT
INDOOR
MOTOR
STEP
MOTOR
PIPE OUT
THERMISTOR
REMOTE
CONTROL
DRAIN
PUMP
PIPE IN
THERMISTOR
FLOAT S/W
CN-AIRC
CN-DISP
CN-REMO CN-STEP CN-PIPE2
DISPLAY PCB ASSY
(OPTION)
RD
RD
BK
DOOR S/W
H.V.B
AIR
CLEANER
BK
WH
12. CST Type Indoor Unit - TC chassis 13. CST Type Indoor Unit - TC1 chassis
14. ART COOL MIRROR-SE
