174
Multi
type
Air
Conditioner

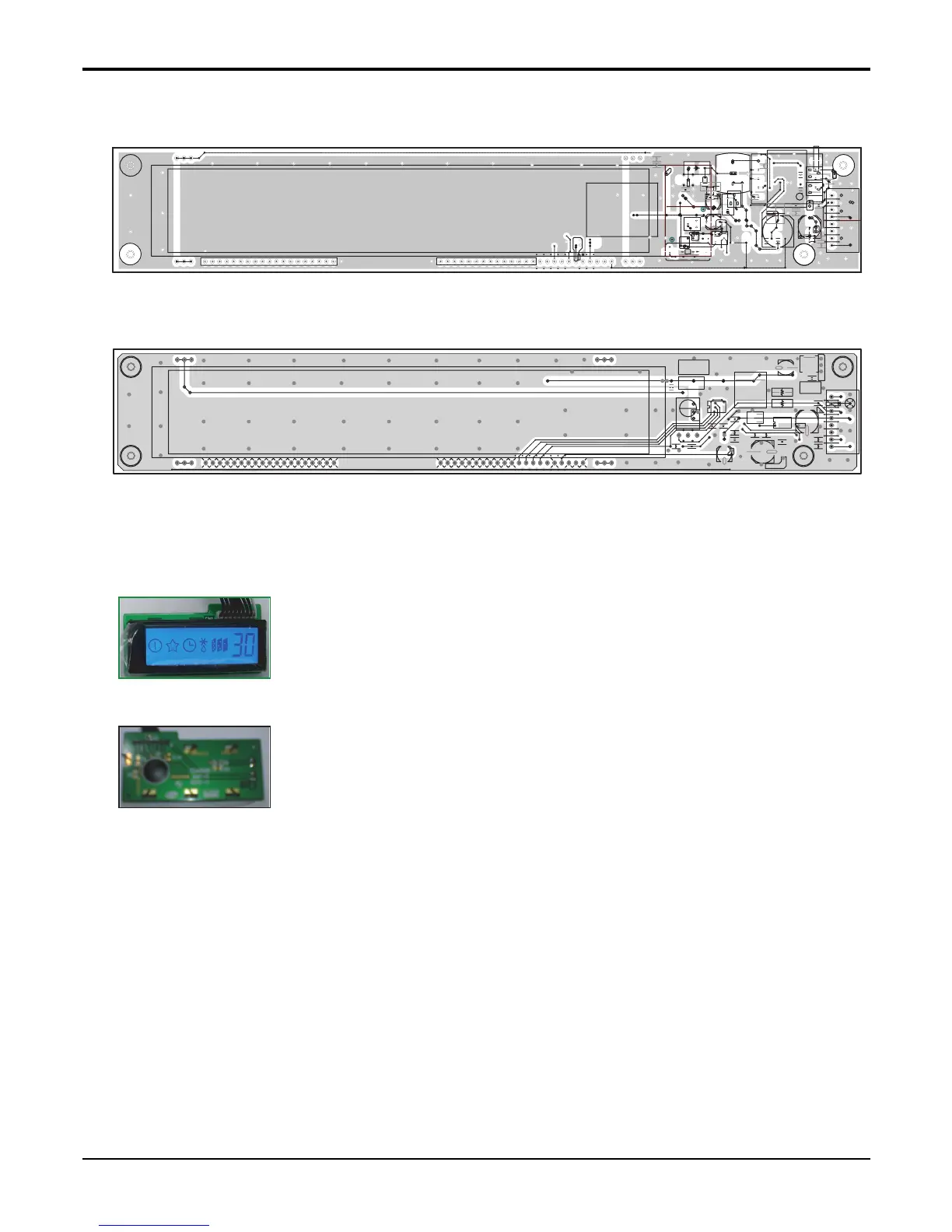

Schematic
Diagram
4)
Art
Cool
Deluxe
T
ype
TOP
VIEW
5)
Art
Cool
Mirror
TOP
VIEW
BOTTOM
VIEW
BOTTOM
VIEW
SEJIN ELECTRON INC.
SVM-GP1119AI
P/N 3210018043
1
REV1
C13
C7
C8
C9
D1
Q1
Q2
R9
R13
R2
R6
R7
R8
R10
TP1
TP2
TP3
TP4
R17
R18
R19
C14
C15
C18
R4
R3
TP5
TP6
M42
M43
C19
C20
C21
R5
M45
M44
TP1
TP2
TP3
TP4
TP7
TP8
173
175
Table of Contents
Default Chapter
1
Service Manual
1
Table of Contents
2
Model Number Nomenclature
3
Symbols Used in this Manual
5
Safety Precautions
6
Dimensions
12
Indoor Unit
12
Outdoor Unit
21
Product Specifications
22
Installation
34
Select the Best Location of Indoor Unit
34
How to Fix
37
Fixing Indoor Unit
39
Installation of Unit
44
Piping and Drainage of Indoor Unit
45
Connection of Indoor Unit Piping
46
Ceiling Mounting
58
Drill a Hole in the Wall
59
Drain Hose
60
Indoor Unit Installation
66
Remote Controller Installation
69
Connecting Pipings and the Cable to Outdoor Unit
71
Electric Characteristics
72
Checking the Drainage and Pipe Forming
74
Drain Piping
76
Maximum Length of Pipe and Extra Charge of Refrigerant Charge
79
Refrigerant Charge
82
Test Running
85
System Layout and Piping Length
88
Installation
89
Installation of the Main Unit
90
Connection of Piping
91
Connection of Wiring
92
Operation
93
Function of Control
93
Sleep Timer Operation
96
Forced Operation
97
Function of Indoor Unit
98
Function of Outdoor Unit
104
Remote Control Operation
105
Wiring Design
109
Control Devices and Function
114
Simple Central Control
114
Term of each Part and Function
114
Electrical Wiring
115
Test Run Method
118
Rotary Switch
120
Deluxe Central Control
121
System Configuration
126
Main Specifications
126
Control System
126
Disassembly of the Parts (Indoor Unit)
127
Indoor Unit
127
Schematic Diagram
142
Electronic Control Device
142
Wiring Diagram
154
Components Locations
160
3 ) Central Control PCB)
170
Top View
170
Troubleshooting Guide
179
Refrigeration Cycle Diagram
179
Self-Diagnosis Function
186
Cycle Troubleshooting Guide
187
Electronic Parts Troubleshooting Guide
188
General Information
193
(3-Way) Valve
209
Pumping down
210
Gas Charging
212
Exploded View & Replacement Parts List
213
Indoor Unit
213
Outdoor Unit
257
258 Multi Type Air Conditioner
