Service Manual 43
Installation
-BPchassis
Install the unit above the ceiling correctly.
• Apply a joint-canvas between the unit and duct to
absorb unnecessary vibration.
• Apply a filter Accessory at air return hole.
• Install the unit leaning to a drainage hole side as a
figure for easy water drainage.
• A place where the unit will be leveled and that can
support the weight of the unit.
• A place where the unit can withstand its vibration.
• A place where service can be easily performed.

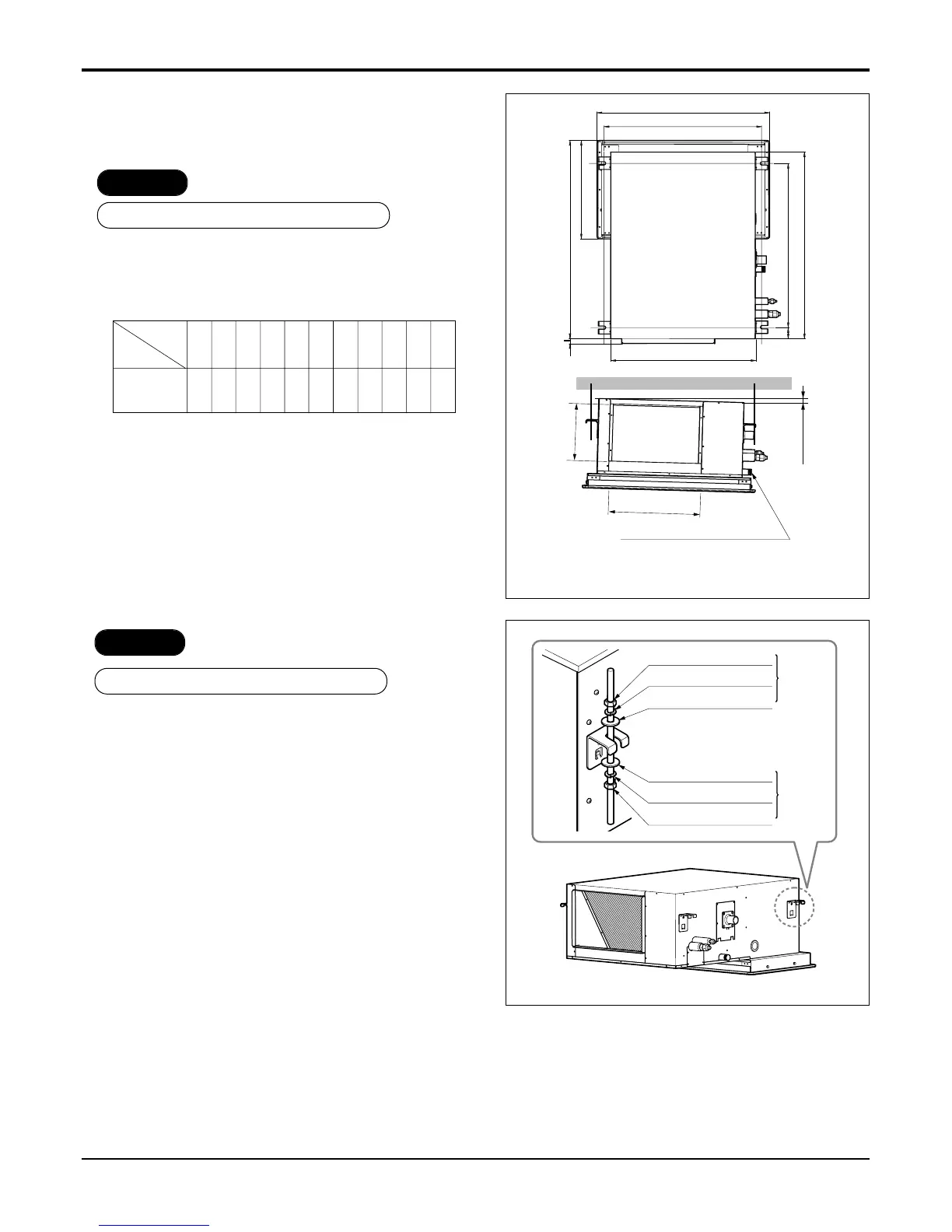

CASE 1
POSITION OF SUSPENSION BOLT
POSITION OF CONSOLE BOLT
(Unit:mm)
To Next Page
